 Think Big. Go Small. Eco-Smart Computing

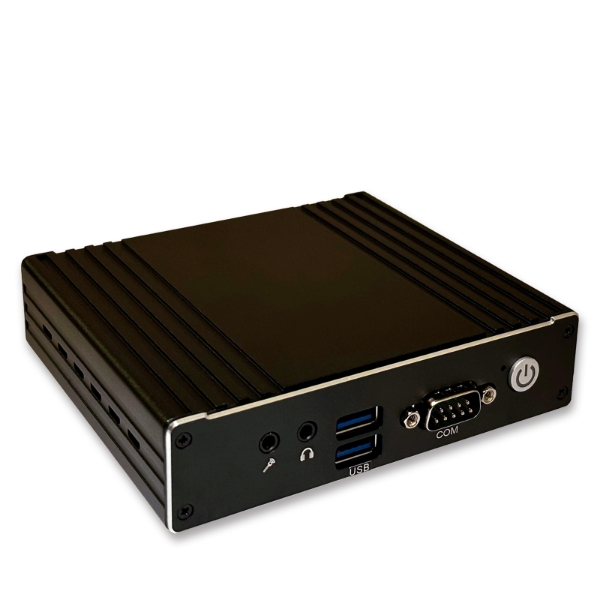

Nano-N3350D

Fanless Embedded, 10-year Longevity, Apollo Lake Celeron®, HD500 GPU DP+HDMI
Featured Highlights
Intel® Celeron®/Pentium®/Atom®-E Processor
Intel® Apollo Lake Platform (SOC)
Intel® HD 500 Graphics, 4K Resolution, HDMI+DP
2G/8GB DDR3L Memory
Realtek® Gigabit LAN, M.2 11ac WiFi+BT
2 USB 3.0, 2 USB 2.0
mSATA-6Gb/s
Power Supply: DC12V-2A Input
OS Support: Windows 10, IoT, Linux, Android
Applications: Set Top Box, Digital Signage, POS/Kiosk, Traffic Controller, etc.


SKU: Nano-N3350D
Product specifications
Processor
• Intel® Celeron® N3350 1.10/2.40GHz 2Core 2Threads 2M 6W
• Intel® Celeron® N3450 1.10/2.20GHz 4Core 4Threads 2M 6W
• Intel® Pentium® N4200 1.10/2.50GHz 4Core 4Threads 2M 6W
• Intel® Atom® E3940 1.60/1.80GHz 4Core 4Threads 2M 9.5W
Chipset
• Intel® Apollo Lake Platform (SOC)
Graphics

• Intel® HD 500 Graphics, 4K Resolution
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2
• 1 x DP, 4K 60Hz Graphics port

Memory

• 2G/8G DDR3L (built-in, non-changeable)
• 1600/1333MHz unbuffered non-ECC

Network

• 1 x Realtek® RTL8111F Gigabit (10/100/1000 Mb/s) LAN
• 802.11 ac/n Dual-Band Wi-Fi (2.4GHz / 5.0GHz), Bluetooth 4.0
• 1 x M.2 2230 (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)

Storage

• 1 x mSATA 6Gb/s
• 32GB/64GB eMMC Flash Internal Storage

Audio

• High Quality CMedia CM119B USB Audio Codec
• Optimized for Linux support
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 2 x USB 2.0 ports
• 1 x HDMI® port
• 1 x DP
• 1 x LAN port
• 1 x DC-In 2.5mm Power Connector

Other I/O

• 2 x USB 3.0 ports (Front)
• 1 x Serial COM port (Front)
• 2 x 3.5mm Audio jacks (Front)

System BIOS
• Watchdog supported
Chassis

NUC-N3 Fanless Enclosure
• Dimensions: 4.96"(W) x 4.33"(D) x 1.33"H (depth dimension changeable), weight: 3 lbs
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets

Power Supply
• Power: DC12V 2A 24W Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Powered by PoE supported
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10, IoT, Linux, Android
Application
• Set Top Box, Digital Signage, POS/Kiosk, Traffic Controller, etc.
• Embedded-Longevity
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
