Sorry - this product is no longer available

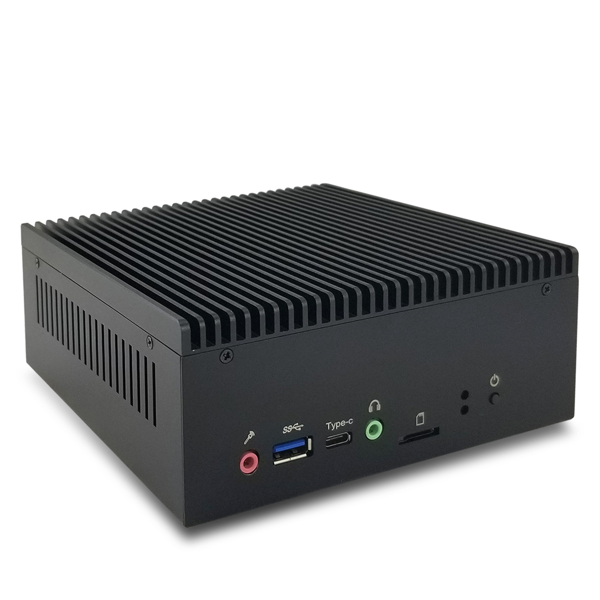

Nano-A300G

AMD Ryzen™ 3th Gen, HDMI+DP+DVI, 2 M.2 + TF, 7 USB + Type-C
Featured Highlights
AMD Ryzen™ 3rd Gen. processor Socket AM4
AMD A300 Chipset
AMD Radeon™ Vega FGX Graphics, HDMI+DP+DVI
SATA-6Gb/s, M.2 SSD/NVMe, TF Reader
Gigabit LAN + M.2-WiFi
3 USB 3.0, 4 USB 2.0,1 Type-C
Realtek® ALC269 Audio Sound
DC19V 2.1A 40W or higher wattage Power Adapter(UL/CE/FCC Certified)
OS Support: Windows 10, IoT, Linux
Applications: Set Top Box, Digital Signage, Home Entertainment, PC Computing, POS/Kiosk, etc.

SKU: Nano-A300G
Product specifications
Processor

• AMD Ryzen™ processor 3rd Generation Socket AM4
• AMD Ryzen™-7 4700G 8C/16T 3.6/4.4G 8C-GPU 65W
• AMD Ryzen™-7 4700GE 8C/16T 3.1/4.3G 8C-GPU 35W
• AMD Ryzen™-5 4600G 6C/12T 3.7/4.2G 7C-GPU 65W
• AMD Ryzen™-5 4600GE 6C/12T 3.3/4.2G 7C-GPU 35W
• AMD Ryzen™-3 4300G 4C/8T 3.8/4.0G 6C-GPU 65W
• AMD Ryzen™-3 4300GE 4C/8T 3.5/4.0G 6C-GPU 35W
• AMD Athlon™ Gold 3150G 4C/4T 3.5/3.9G 3C-GPU 65W
• AMD Athlon™ Gold 3150GE 4C/4T 3.3/3.8G 3C-GPU 35W
• AMD Athlon™ Silver 3050GE 2C/4T 3.4G 3C-GPU 35W
• AMD Ryzen™ 5 3400G 4C/8T 3.7/4.2G 4M+2M+384K Cache 45-65W with Radeon Vega 11 Graphics
• AMD Ryzen™ 3 3200G 4C/8T 3.6/4.0G 4M+2M+384K Cache 45-65W with Radeon Vega 8 Graphics

Chipset

• AMD A300 Chipset

Graphics

• AMD Radeon™ Vega FGX Graphics
• Support 3 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2
• 1 x DP 4K 60Hz Graphics Port
• 1 x DVI Port

Memory

• 2 x DDR4 SO-DIMM
• 3200/2933/2667/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 32GB

Network

• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 socket (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 socket (for WiFi+BT or Other Module)
• 2 x M.2 2242/2260/2280 socket (for SATA-6GB/s or PCIe 4x NVMe)

Storage

• 1 x SATA 6Gb/s
• 2 x M.2 2242/2260/2280 socket (for SATA-6GB/s or PCIe 4x NVMe)

Audio
• 2 x 3.5mm analog stereo audio jack(Front)
Back Panel I/O
• 2 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 1 x USB Type-C port(for Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions)
• 1 x HDMI® port
• 1 x DP port
• 1 x DVI port
• 1 x LAN port
• 1 x DC-In 2.5mm Jack port
Internal I/O
• 1 x USB 2.0 Header
• 1 x Serial COM Header
Other I/O
• 1 x USB 3.0 Port (Front)
• 1 x USB 2.0 Port (Front)
• 2 x 3.5mm jack(Front)
Function
• 1 x TPM Header

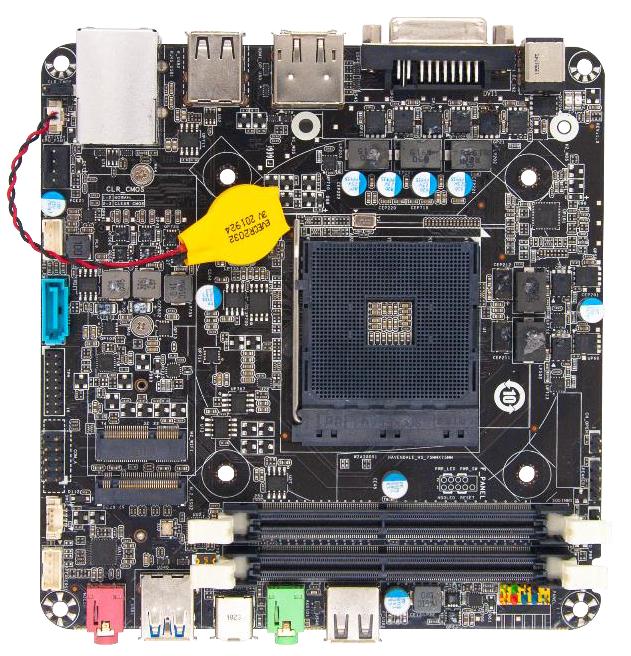

Systemboard
Small Form Factor

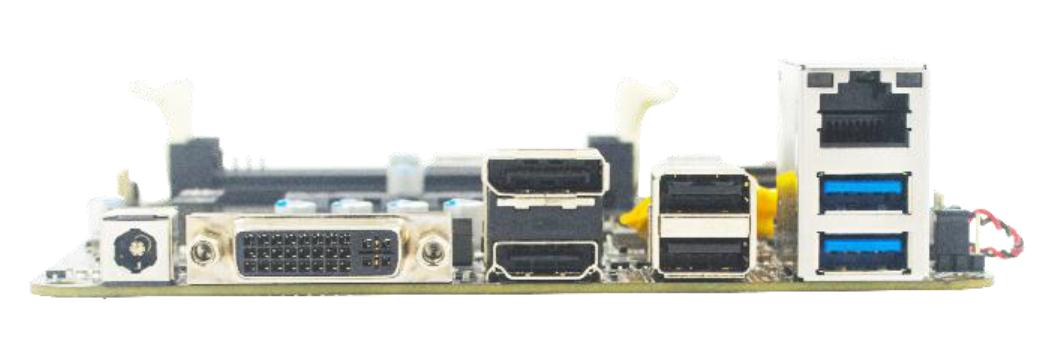

Back I/O
Chassis

STX-6D Chassis
• Dimensions: 5.80"(W) x 6.00"(D) x 2.00"(H), Weight: 7 lb.
• Color: Black or Silver  as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets

Power Supply
• Power: DC19V 6A 120W or higher wattage Power Adapter 7.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10, IoT, Linux
Application
• Set Top Box, Digital Signage, POS/Kiosk, etc.
Environment

• Operating Temperature: 0 to +45 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
