 High-end Desktop

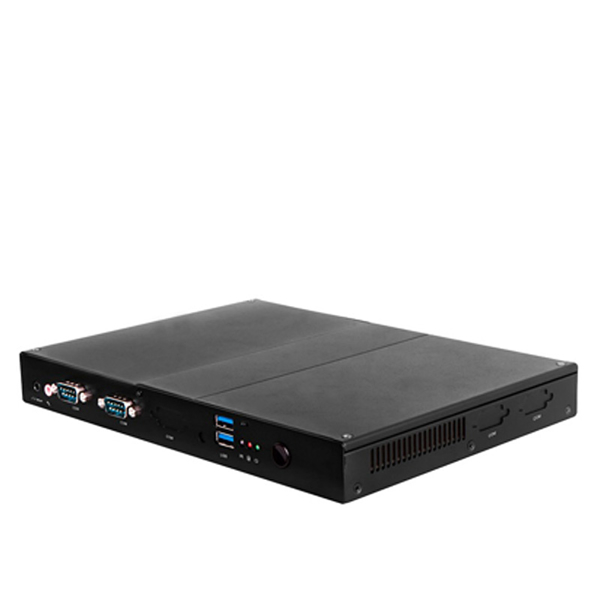

V1807B-4HDMI

Ryzen™ V1807B Processor, Radeon™ Vega FGX + 4 HDMI 2.0, 2COM + LAN + M.2-WiFi, Dual Channel DDR4 up to 32GB
Featured Highlights
AMD Ryzen™ V1807B Processor
AMD® V1000 Chipset
AMD® Radeon™ Vega FGX Graphics, 4 HDMI 2.0
2 x DDR4 SO-DIMM for up to 32GB Memory
MiniPCIe
Realtek® Gigabit LAN + M.2-WiFi
3 USB 3.0, 1 USB 2.0
SATA-6Gb/s, M.2 SSD/NVMe
Power Supply: DC19V 4.74A input
OS Support: Windows 10, IoT, Linux
Applications: Set Top Box, Digital Signage, POS/Kiosk, IPTV, Traffic Controller, etc.

SKU: V1807B-4HDMI
Product specifications
Processor
• AMD® Ryzen V1807B 3.35/3.80GHz 4C/8Core 45W
• Option: AMD® Ryzen V1605B 2.00/3.60GHz 4C/8Core 15W
Chipset
• AMD® V1000 Chipset
Graphics
• AMD® Radeon™ Vega FGX Graphics
• Support 4 Graphics ports
• 4 x HDMI® 2.0 4K 60Hz Graphics Port
Memory
• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 32GB
Network
• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 WiFi+BT Socket (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x MiniPCIe full size slot for mSATA
• 1 x M.2 2230 socket (for WiFi+BT or Other Module)
• 1 x M.2 Socket(type 2280/2242, SATA-6GB/s or PCIe 4x NVMe)
Storage
• 1 x SATA 6Gb/s
• 1 x M.2 Socket(type 2280/2242, SATA-6GB/s or PCIe 4x NVMe)
Audio
• 2 x 3.5mm analog stereo audio jacks
Back Panel I/O
• 1 x USB 3.0 Port
• 1 x USB 2.0 Port
• 4 x HDMI® 2.0 ports
• 1 x LAN port
• 1 x DC-In 2.5mm Jack port
Other I/O
• 2 x USB 3.0 Ports (Front)
• 2 x Serial COM ports (2 Front/RS232)
• 2 x 3.5mm jack(Front)
System BIOS
• AMI® UEFI BIOS
• Watchdog supported
Chassis

• 1" Slim size enclosure 7.46"W x 5.80" D x 1"(H)
• Net Weight: 2lb (net) 5 lb.(gross with packaging)
• Optional VESA Bracket Available

Power Supply
• Power: DC19V 3.42A 65W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10, IoT, Linux
Application
• Set Top Box, Digital Signage, POS/Kiosk, IPTV, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
