NUC-A3500L2

AMD Ryzen™ 5 3500U / Ryzen™ Embedded R2514 NUC-Size Mini PC, 3 Displays with 2 x HDMI 2.0 + USB Type-C, Dual 1GbE/Optional 2.5GbE LAN, 2 x DDR4 SO-DIMM, Dual M.2 2280 Storage and 4 x USB 3.2

Featured Highlights
	AMD Ryzen™ 5 3500U / Ryzen™ Embedded R2514 Processor
	AMD Ryzen™ SoC Platform
	AMD Radeon™ Graphics, 3 Displays with 2 x HDMI 2.0 + USB Type-C
	2 x DDR4-2666 SO-DIMM Slots, up to 32GB
	1 x M.2-2280 PCIe 3.0 x4 NVMe SSD + 1 x M.2-2280 SATA/NVMe SSD
	Dual 1GbE LAN / Optional Dual 2.5GbE LAN, M.2-2230 Wi-Fi/Bluetooth
	2 x USB 3.2 Gen 2 Type-A + 2 x USB 3.2 Gen 1 Type-A + 1 x USB Type-C
	1 x 3.5 mm audio input/output combo jack
	19V 65W DC Power Input
	OS Support: Windows 11 and Linux
	Applications: Low-Cost Value PC, Multi-Display Digital Signage, Office Productivity and Client Computing

In Stock

SKU: NUC-A3500L2

Specifications
Request for Info

Product specifications

Processor • AMD Ryzen™ Embedded R2514 Processor • AMD Ryzen™ 5 3500U Processor • Maximum TDP: 35W Chipset • AMD Ryzen™ SoC Platform
Graphics • AMD Radeon™ Graphics • Supports up to 3 displays • 2 x HDMI® 2.0 ports, supporting a maximum resolution of 4K@60Hz • 1 x Type-C port with DP output, supporting a maximum resolution of 4K@60Hz Memory • 2 x DDR4-2666 SO-DIMM slots • Supports up to 32GB
Network • 2 x Realtek® RTL8111K 1GbE LAN • Option: 2 x Realtek® RTL8125 2.5GbE LAN • 2 x RJ45 connectors • 1 x M.2-2230 Key-E slot for Wi-Fi/Bluetooth • Optional Wi-Fi 6/6E module Expansion Slot • 1 x M.2-2280 Key-M slot for PCIe 3.0 x4 NVMe SSD • 1 x M.2-2280 Key-M slot for SATA SSD or PCIe 3.0 x4 NVMe SSD • 1 x M.2-2230 Key-E slot for Wi-Fi/Bluetooth
Storage • 1 x M.2-2280 PCIe 3.0 x4 NVMe SSD • 1 x M.2-2280 SATA or PCIe 3.0 x4 NVMe SSD • Supports up to 2 storage devices Audio • 1 x 3.5 mm audio input/output combo jack

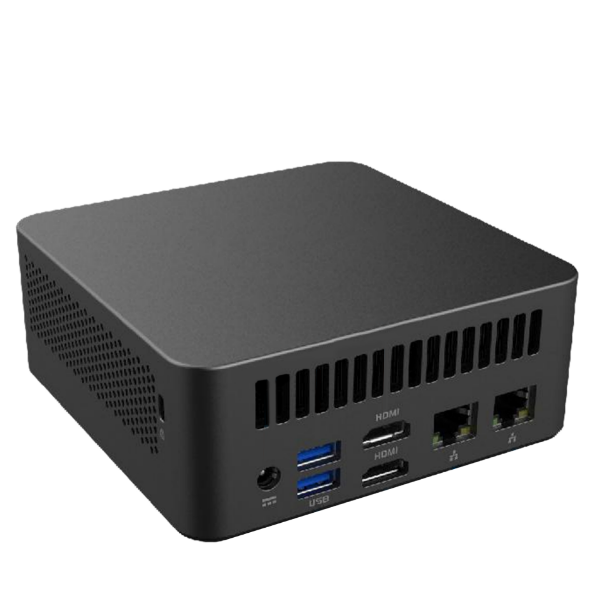

Back Panel I/O • 2 x HDMI 2.0 ports, up to 4K@60Hz • 2 x RJ45 LAN ports • 2 x USB 3.2 Gen 1 Type-A ports (5Gbps) • 1 x DC-In power connector Other I/O • 1 x power button with white LED • 1 x 3.5 mm audio input/output combo jack • 2 x USB 3.2 Gen 2 Type-A ports (10Gbps) • 1 x USB Type-C port supporting USB 3.2 Gen 2, DisplayPort 4K@60Hz and 15W Power Delivery output
System BIOS • AMI® UEFI BIOS Chassis • NUC-size mini PC enclosure • Dimensions: 129.5 mm (W) x 129.5 mm (D) x 51.7 mm (H)
Power Supply • Power: 12/19V 65W DC input OS Support • Windows 11, Linux
Applications • Low-cost value PC, Digital Signage, etc. Environment • Operating Temperature: -5 to +45 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • AMD Ryzen™ Embedded R2514 Processor • AMD Ryzen™ 5 3500U Processor • Maximum TDP: 35W Chipset • AMD Ryzen™ SoC Platform
Graphics • AMD Radeon™ Graphics • Supports up to 3 displays • 2 x HDMI® 2.0 ports, supporting a maximum resolution of 4K@60Hz • 1 x Type-C port with DP output, supporting a maximum resolution of 4K@60Hz Memory • 2 x DDR4-2666 SO-DIMM slots • Supports up to 32GB
Network • 2 x Realtek® RTL8111K 1GbE LAN • Option: 2 x Realtek® RTL8125 2.5GbE LAN • 2 x RJ45 connectors • 1 x M.2-2230 Key-E slot for Wi-Fi/Bluetooth • Optional Wi-Fi 6/6E module Expansion Slot • 1 x M.2-2280 Key-M slot for PCIe 3.0 x4 NVMe SSD • 1 x M.2-2280 Key-M slot for SATA SSD or PCIe 3.0 x4 NVMe SSD • 1 x M.2-2230 Key-E slot for Wi-Fi/Bluetooth
Storage • 1 x M.2-2280 PCIe 3.0 x4 NVMe SSD • 1 x M.2-2280 SATA or PCIe 3.0 x4 NVMe SSD • Supports up to 2 storage devices Audio • 1 x 3.5 mm audio input/output combo jack
Back Panel I/O • 2 x HDMI 2.0 ports, up to 4K@60Hz • 2 x RJ45 LAN ports • 2 x USB 3.2 Gen 1 Type-A ports (5Gbps) • 1 x DC-In power connector Other I/O • 1 x power button with white LED • 1 x 3.5 mm audio input/output combo jack • 2 x USB 3.2 Gen 2 Type-A ports (10Gbps) • 1 x USB Type-C port supporting USB 3.2 Gen 2, DisplayPort 4K@60Hz and 15W Power Delivery output
System BIOS • AMI® UEFI BIOS Chassis • NUC-size mini PC enclosure • Dimensions: 129.5 mm (W) x 129.5 mm (D) x 51.7 mm (H)
Power Supply • Power: 12/19V 65W DC input OS Support • Windows 11, Linux
Applications • Low-cost value PC, Digital Signage, etc. Environment • Operating Temperature: -5 to +45 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
