 Think Big. Go Small. Eco-Smart Computing

Sorry - this product is no longer available

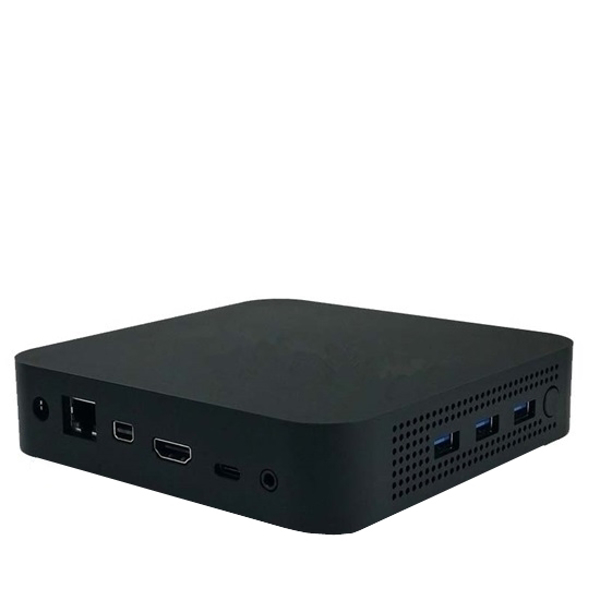

N4200-NGC2

0.75" H Apollo Lake, HD 505 Graphics HDMI+MiniDP, Giga LAN+M.2 WiFi+M.2 NVMe, 3 USB 3.0+Type C
Featured Highlights
Intel® Celeron®/Pentium®/Atom®-E Processor
Intel® Apollo Lake Platform (SOC)
Intel® HD 505 Graphics, 4K Resolution, HDMI+MiniDP
2 DDR3L SO-DIMM for up to 16GB Memory
Realtek® Gigabit LAN, M.2 11ac WiFi+BT
3 USB 3.0, Type-C
M.2 SSD/NVMe
5.1 ALC662 Audio Sound
Power Supply: DC12V 3A Input
OS Support: Windows 10, IoT, Linux
Applications: Set Top Box, Digital Signage, Traffic Controller, etc.

SKU: N4200-NGC2
Product specifications
Processor
• Intel® Pentium® N4200 1.10/2.50GHz 4Core 4Threads 2M 6W
• Intel® Celeron® N3350 1.10/2.40GHz 2Core 2Threads 2M 6W
• Intel® Celeron® N3450 1.10/2.20GHz 4Core 4Threads 2M 6W
• Intel® Atom® E3940 1.60/1.80GHz 4Core 4Threads 2M 9.5W
Chipset
• Intel® Apollo Lake Platform (SOC)
Graphics

• Intel® HD 505 Graphics, 4K Resolution
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2
• 1 x MiniDP

Memory
• 2 x DDR3L SO-DIMM
• 1600/1333MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 16GB
Network

• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• 802.11 ac/n Dual-Band Wi-Fi (2.4GHz/5.0GHz), Bluetooth 4.0
• 1 x M.2 2230 (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Storage

• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
• 32GB eMMC Flash Internal Storage

Audio

• Realtek® ALC662 6-channel (5.1)
• 1 x 3.5mm Analog Stereo Audio jack

Back Panel I/O

• 3 x USB 3.0 ports
• 1 x Type-C USB port (for Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions)
• 1 x HDMI® port
• 1 x MiniDP
• 1 x LAN port
• 1 x 3.5mm Audio jack
• 1 x DC-In 2.5mm Power Connector

System BIOS
• AMI® UEFI BIOS
Chassis

Nano-X series
• Dimension: 5"(W) x 5"(D) x 0.75"(H) Weight: 7 lbs
• Audio: 5.1 HDMI®

Power Supply

• Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Powered by PoE supported
• Energy Star Compliance, Idle mode at <1W

OS Support
• Windows 10, IoT, Linux
Application
• Set Top Box, Digital Signage, Traffic Controller, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
