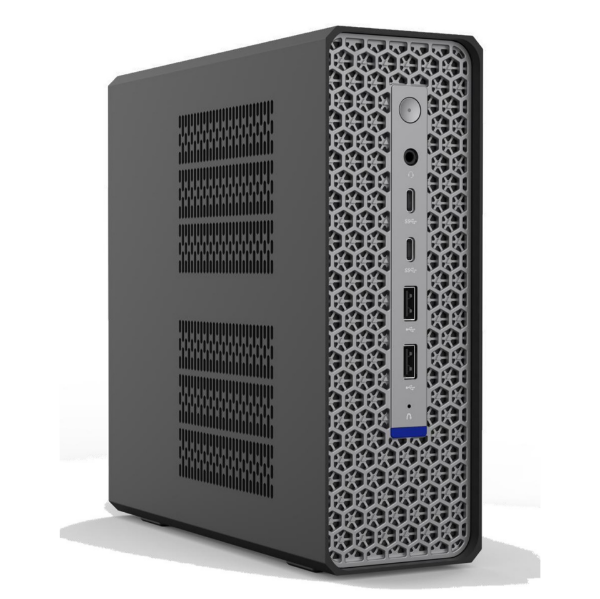

Mini-Ai300T4M

10GbE+2.5GbE, 4xM.2 PCIe Slots, DP+HDMI+2Type-C 4 Display 16C/32T 5.1GHz CPU, Radeon 8060S GPU, 128GB DDR5 Memory

Featured Highlights
	AMD Ryzen™ AI Max+ 395 (16C/32T, 5.1GHz max).
	Radeon 8060S Graphics, 50 TOPS NPU, 126 TOPS overall ,1 DP2.1 + 1 HDMI 2.1
	8 x 16GB LPDDR5-8400MHz, up to 128GB
	4 x M.2 2280 PCle 4.0 SSD Slots
	2.5G + 10G (Dual LAN), AX210 Wi-Fi 6E / Bluetooth 5.3
	6 x USB 3.2/1x USB4 (PD 3.1 28V)/1x USB4 (40Gbps)
	Cooling: Dual Pure-Copper Turbine Fans, Efficient Cooling
	OS Support: Windows 8/10/11 / Windows Server 2012/2016 / Linux / CentOS / Ubuntu
	Applications: AI-IoT, Digital Signage, POS/Kiosk, IPTV, Traffic Controller, etc.

SKU: Mini-Ai300T4M

Specifications
Request for Info

Product specifications

Processor • AMD Ryzen™ AI Max+ 395 (16 Core, 32 Threads, 80M Total Cache, Up to 5.1 GHz) Graphics • AMD Radeon 8060S Graphics • AMD Ryzen™ AI (NPU TOPS: 50 TOPS, Overall TOPS: up to 126 TOPS) • Supports 4 Displays • 1 x DP 2.1, 1 x HDMI 2.1, 2 x Type-C to (HDMI/DP) • Supports 8K @60Hz, 4K Max @240Hz • Supports Dolby® Vision
Memory • LPDDR5X-8400MHz • Supports up to 128GB Network • 2.5G + 10G (Dual LAN) • AX210 Wi-Fi 6E / Bluetooth 5.3
Expansion Slot • 1 x M.2 2230 Slot Storage • 4 x M.2 2280 PCIe 4.0×4 NVMe SSD Slot
Audio • 1 x audio Other I/O • 2 x USB-A 3.2 (Front) • 1 x USB 4.0 PD 3.1 28V (Front)
Back Panel I/O • 1 x HDMI® 2.1 ports • 1 x DP 2.1 ports • 4 x USB-A 3.2 • 1 x 2.5G LAN • 1 x 10 G LAN • 1 x Audio • 1 x USB-C 4.0 ( 15W Output, DP 8K@60Hz, 40Gbps) • 1 x 1100~240V, 50~60Hz, 240W DC IN System BIOS • Watchdog supported
Chassis • Nano size enclosure 76mm(W) x 181mm(D) x 184mm(H) • Approx. 2.15 kg • Optional VESA Bracket Available Power Supply • Power: 100-240V, DC19V 6.3A 240W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 8/10/11 / Windows Server 2012/2016 / Linux / CentOS / Ubuntu Applications • AI-IoT, Digital Signage, POS/Kiosk, IPTV, etc.
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance

Your name *

Your email *

Inquiry *

Product specifications

Processor • AMD Ryzen™ AI Max+ 395 (16 Core, 32 Threads, 80M Total Cache, Up to 5.1 GHz) Graphics • AMD Radeon 8060S Graphics • AMD Ryzen™ AI (NPU TOPS: 50 TOPS, Overall TOPS: up to 126 TOPS) • Supports 4 Displays • 1 x DP 2.1, 1 x HDMI 2.1, 2 x Type-C to (HDMI/DP) • Supports 8K @60Hz, 4K Max @240Hz • Supports Dolby® Vision
Memory • LPDDR5X-8400MHz • Supports up to 128GB Network • 2.5G + 10G (Dual LAN) • AX210 Wi-Fi 6E / Bluetooth 5.3
Expansion Slot • 1 x M.2 2230 Slot Storage • 4 x M.2 2280 PCIe 4.0×4 NVMe SSD Slot
Audio • 1 x audio Other I/O • 2 x USB-A 3.2 (Front) • 1 x USB 4.0 PD 3.1 28V (Front)
Back Panel I/O • 1 x HDMI® 2.1 ports • 1 x DP 2.1 ports • 4 x USB-A 3.2 • 1 x 2.5G LAN • 1 x 10 G LAN • 1 x Audio • 1 x USB-C 4.0 ( 15W Output, DP 8K@60Hz, 40Gbps) • 1 x 1100~240V, 50~60Hz, 240W DC IN System BIOS • Watchdog supported
Chassis • Nano size enclosure 76mm(W) x 181mm(D) x 184mm(H) • Approx. 2.15 kg • Optional VESA Bracket Available Power Supply • Power: 100-240V, DC19V 6.3A 240W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 8/10/11 / Windows Server 2012/2016 / Linux / CentOS / Ubuntu Applications • AI-IoT, Digital Signage, POS/Kiosk, IPTV, etc.
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
