J3160Y

Intel Celeron J3160, HDMI, VGA, LVDS, 2 LAN, 6 COM, SATA, mSATA, MiniPCIe, SIM
Featured Highlights
Intel® Celeron™ J3160 Processor
Intel® 8th Generation HD Graphics 4K@24Hz Resolution, HDMI+VGA+LVDS
DDR3L SO-DIMM for up to 8GB Memory
MiniPCIe
2 intel® Gigabit LAN
1 USB 3.0, 6 USB 2.0
SATA-6Gb/s, mSATA
5.1 ALC662 Audio Sound
Power Supply: DC12V input
OS Support: Windows 7, Windows 8, Windows 10, IoT, Linux
Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IP/PBX, IoT/Edge System, etc.
SKU: J3160Y
Product specifications
Processor
• Intel® Celeron® J3160 1.60/2.24GHz 4Core 4Threads 2M 6W
Graphics
• Intel® 8th Generation HD Graphics 4K@24Hz Resolution
• Support 3 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 1920x1080 Support for HDMI® 1.4 version and HDCP 2.2
• 1 x VGA Port
• 1 x LVDS Port
Memory
• 1 x DDR3L SO-DIMM
• 1600/1333MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 8GB
Network
• 2 x intel® Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x MiniPCIe full size slot for mSATA
• 1 x SIM socket for 3G/4G-LTE option
Storage
• 1 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
Audio
• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm analog stereo audio jacks
Back Panel I/O
• 1 x USB 3.0 Port
• 2 x USB 2.0 Ports
• 1 x HDMI® port
• 1 x VGA port
• 1 x LVDS port
• 2 x LAN ports
• 2 x 3.5mm jack
• 1 x DC-In 2.5mm Jack port
Internal I/O
• 4 x USB 2.0 Headers
• 6 x Serial COM Headers
• 1 x PS/2 Header
Function
• 1 x 4in/4out GPIO Header
System BIOS
• AMI® UEFI 64MBit BIOS

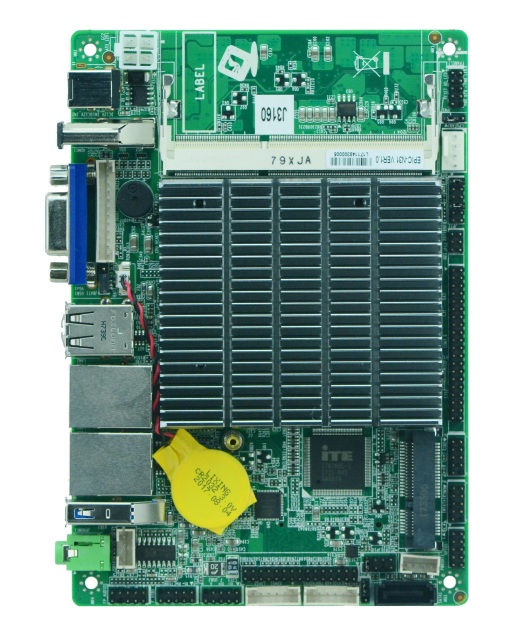

Systemboard
Small Form Factor

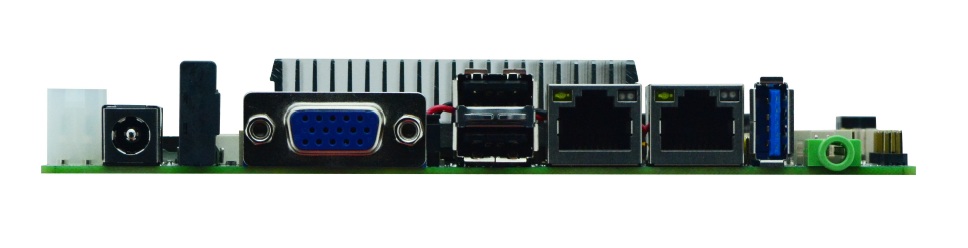

Back I/O

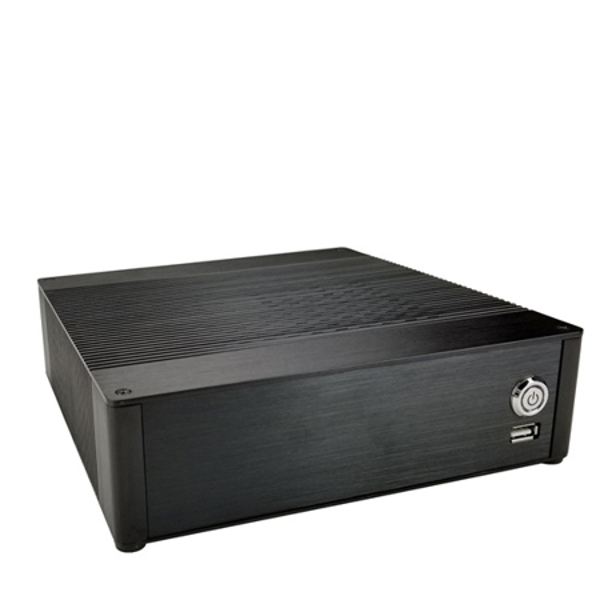

Chassis
• 300R Series Fanless Aluminum Chassis
• Dimensions:300 Case: 8.1(L) x 8.1(W) x 2.2(H) inch
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• Optional PCIe 1x RISER + MiniPCIe + mSATA slots + Slim DVD or Bluray optical drive
• System Weight: 3.9 lb(Net) and 6 lb(Gross with packaging)
• Color: Black as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
• 300B Aluminum 2.1" H 300A w/Slim DVD Bay 300R with RISER Slot
• Option: Slim 10 Series 1.4" Slim
• Option: 138D 7"x7"x1.38H
Power Supply
• Power: DC12V Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 7, Windows 8, Windows 10, IoT, Linux
Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IP/PBX, IoT/Edge System, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
