Think Big. Go Small. Eco-Smart Computing

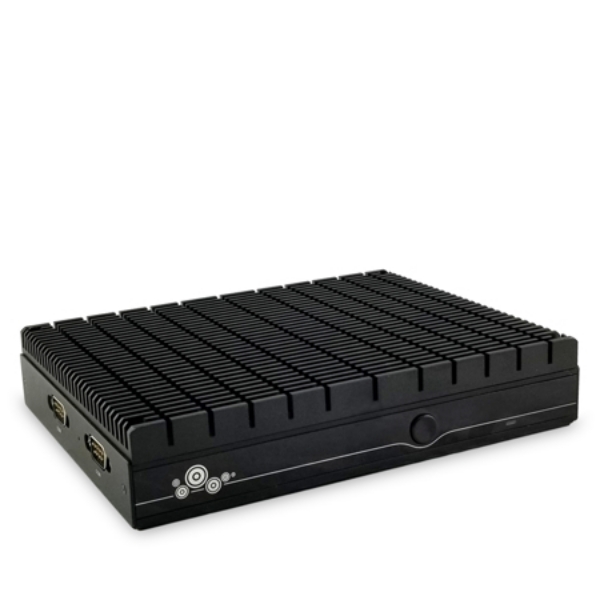

i63F/i63u

1" Slim Fanless 8th Gen., UHD620 4K GPU 3 Display, 2M.2+MiniPCIe+SIM, IPTV Player with Windows
Featured Highlights
Intel® Core™ i7/i5/i3/Pentium®-u Processor
Intel® Whiskey Lake Platform (SOC)
Intel® UHD 620 Graphics, 4K/5K Resolution, HDR 10Bit color, HDMI+HDMI 2.0+DP
2 DDR4 SO-DIMM for up to 32GB Memory
mSATA, M.2 SSD/NVMe
MiniPCIe full size slot, Optional: Intel® Movidius™ Myriad™ X VPU
Intel® Gigabit LAN + Realtek® Gigabit LAN, M.2 4G
6 USB 3.0
5.1 ALC662 Audio Sound
DC19V 2.1A 40W or higher wattage Power Adapter (UL/CE/FCC Certified)
  Optional DC12V 2.5mm AC Adapter
OS Support: Windows 10, 11, IoT, Linux
Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IPTV, IP/PBX, Robot, Traffic Controller, IoT/Edge System, Industrial Control/IPC, Medical Equipment, etc.

SKU: i63F
Product specifications
Processor

• Intel® Core™ i7-8665u 1.90/4.80GHz 4Core 8Threads 8M 15/25W, supports vPro®
• Intel® Core™ i7-8565u 1.80/4.60GHz 4Core 8Threads 8M 15/25W
• Intel® Core™ i5-8265u 1.60/3.90GHz 4Core 8Threads 6M 15/25W
• Intel® Core™ i3-8145u 2.10/3.90GHz 2Core 4Threads 4M 15/25W
• Intel® Pentium® Gold-5405u 2.3GHz 2Core 4Threads 2M 15W

Chipset
• Intel® Whiskey Lake Platform (SOC)
Graphics

• Intel® UHD 620 Graphics, 4K/5K Resolution, HDR 10Bit color
• Support 3 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2
• 1 x HDMI® 2.0 4K 60Hz Graphics port
• 1 x DP 4K 60Hz Graphics port

Memory
• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 32GB
Network

• 1 x Intel® I219LM Gigabit (10/100/1000 Mb/s) LAN
• 1 x Realtek® RTL8111F Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT/4G-LTE Pair with SIM)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
• Option: 802.11ac WiFi

Expansion Slot

• 1 x MiniPCIe full size slot (for mSATA)
• 1 x M.2 2230 (for WiFi+BT/4G-LTE Pair with SIM)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
• Optional: Intel® Movidius™ Myriad™ X VPU

Storage

• 1 x mSATA 6Gb/s
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
• SSD Storage Optional: >1TB

Audio

• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 2 x USB 3.0 ports
• 1 x HDMI® port
• 1 x HDMI® 2.0 port
• 1 x DP
• 1 x LAN port
• 1 x DC-In 2.5mm Power Connector

Other I/O

• 4 x USB 3.0 ports (Side)
• 1 x Serial COM port (Side)
• 1 x LAN port (Side)
• 2 x 3.5mm Audio jacks (Side)

Function

• 1 x TPM header

System BIOS
• AMI® UEFI 64MBit / Legacy BIOS
• Watchdog supported
Chassis

Booksize F Slim Fanless enclosure 7.46"(W) x 5.80"(D) x 1.45"(H)
• Weight: 2 lb. (Net) 5 lb. (gross with packaging)
• Color: Black
• Option: Booksize i 7.46"(W) x 5.80"(D) x 1.00"(H)

Power Supply
• Power: DC19V 2.1A 40W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional DC12V 2.5mm AC Adapter
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support

• Windows 10, 11, IoT, Linux

Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IPTV, IP/PBX, IoT/Edge System, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
