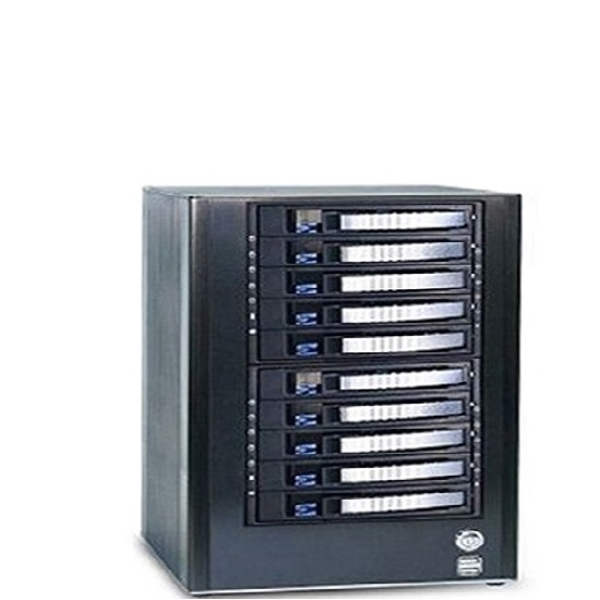

Small Form Factor Storage

J1900S12

Intel Celeron J1900, HDMI, VGA, 2 LAN, COM, 12 SATA, mSATA, MiniPCIe
Featured Highlights
Intel® Celeron™ J1900 Processor
Intel® Bay Trail Platform (SOC)
Intel® HD Graphics 1920x1080, HDMI+VGA
DDR3L SO-DIMM for up to 8GB Memory
MiniPCIe
2 Intel® Gigabit LAN
2 USB 3.0, 6 USB 2.0
12 x SATA-6Gb/s, mSATA
5.1 ALC662 Audio Sound
Power Supply: ATX input
OS Support: Windows 7, Windows 8, Windows 10, IoT, Linux
Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, IP/PBX, IoT/Edge System, etc.
SKU: J1900S12
Product specifications
Processor
• Intel® Celeron® J1900 2.00/2.42GHz 4Core 4Threads 2M 10W
Chipset
• Intel® Bay Trail Platform (SOC)
Graphics
• Intel® 7th Generation HD Graphics 1080p 2K Resolution
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 1920x1080 Support for HDMI® 1.4 version and HDCP 2.2
• 1 x VGA Port
Memory
• 1 x DDR3L SO-DIMM
• 1600/1333MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 8GB
Network
• 2 x Intel® Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x MiniPCIe full size slot for mSATA
Storage
• 12 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
Audio
• Realtek® ALC662 6-channel (5.1)
• Internal audio, S/PDIF headers
Back Panel I/O
• 2 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 1 x HDMI® port
• 1 x VGA port
• 2 x LAN ports
Internal I/O
• 4 x USB 2.0 Headers
• 1 x Serial COM Header
• 1 x S/PDIF header
System BIOS
• Watchdog supported

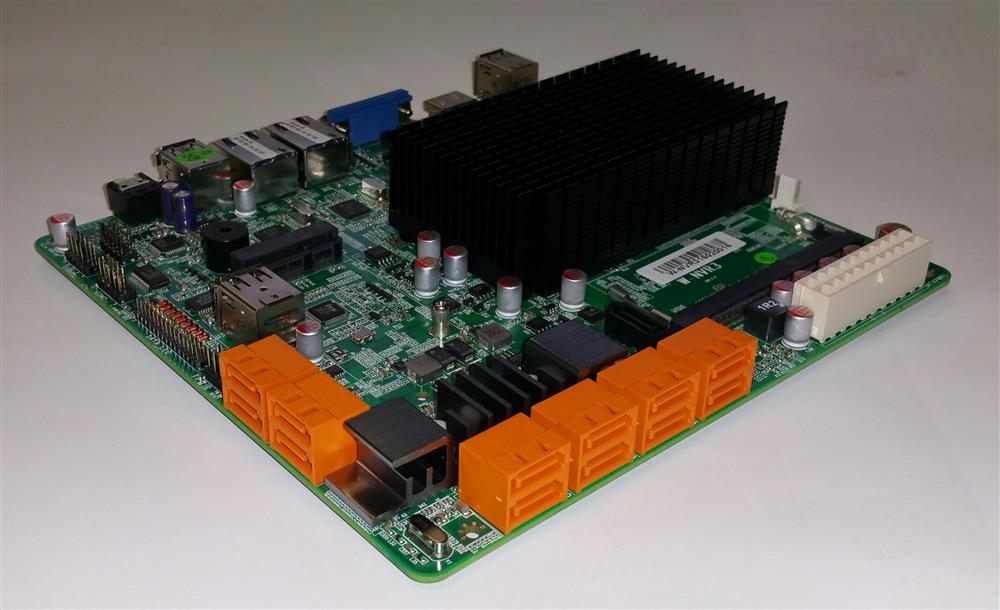

Systemboard
Small Form Factor

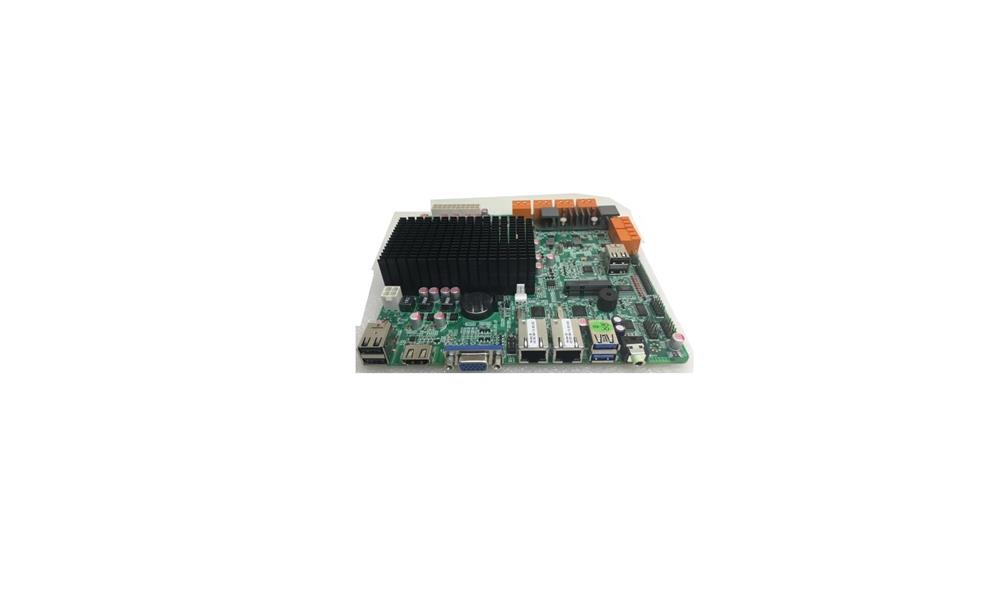

Back I/O
Chassis
• 300B Series Aluminum Mini Chassis
• Dimensions:300 Case: 8.1(L) x 8.1(W) x 2.2(H) inch
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• System Weight: 3.9 lb(Net) and 6 lb(Gross with packaging)
• Color: Black as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
• Option: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5"
• Option: 500B 3.5" H w/LP Slot 500A DVD Bay +LP Slot 500D with 5.25" Bay 500F Dust Filter 500C LCD Control
• Option: 1750C with slot
Power Supply
• 100-240V ATX AC Power connector input
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 7, Windows 8, Windows 10, IoT, Linux
Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, IP/PBX, IoT/Edge System, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
