Processor
• Intel® Core™ i7-7660u 2.50/4.00GHz 2Core 4Threads 4M 15W • Option: 7th Generation Kaby Lake Intel® Core™ i3-7100u, i3-7020u, i3-7130u, i5-7200u, i5-7260u, i5-7267u, i5-7287u, i5-7300u, i5-7360u, i7-7500u, i7-7560u, i7-7567u, i7-7600u,i7-7660u, Pentium® 4415u, Celeron® 3865u
Chipset
• Intel® Kaby Lake-u Platform (SOC)
|
Graphics
• Intel® HD 610 Graphics, 4K Resolution • Support 1 Graphics port • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2
Memory
• 1 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 16GB
|
Network
• 4 x Intel® Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x PCI Express 3.0 x1 slot
|
Storage
• 10 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
Audio
• 5.1 HD Audio Subsystem via HDMI® 1.4 Interface • 2 x 3.5mm Analog Stereo Audio jacks
|

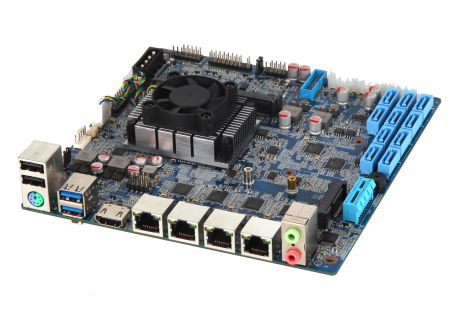

Back Panel I/O
• 2 x USB 3.0 ports • 2 x USB 2.0 ports • 1 x HDMI® port • 4 x LAN ports • 2 x 3.5mm Audio jacks • 1 x DC-In 2.5mm Power Connector • 1 x PS/2 port
Internal I/O
• 2 x USB 3.0 headers • 2 x USB 2.0 headers • 1 x Serial COM Header
|
Function
• 1 x TPM header
System BIOS
• AMI® UEFI 64MBit / Legacy BIOS
• Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and System Management BIOS (SMBIOS)
|

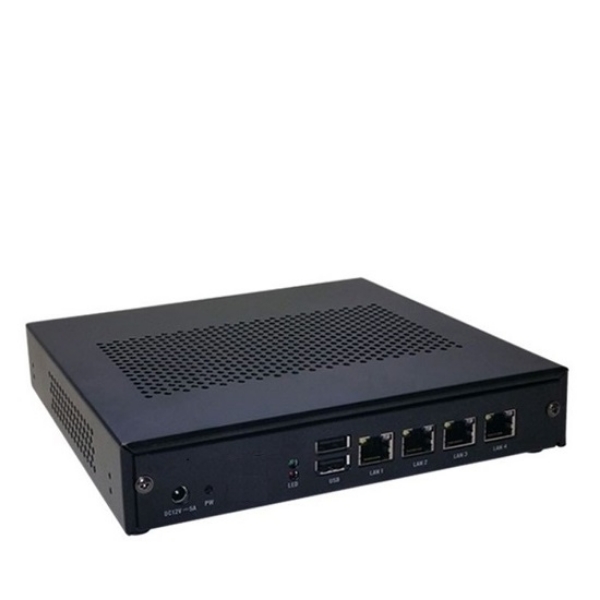

Chassis
• 138D Small Form Factor with aluminum panel, Convertible to 1U Rackmount • Dimensions: 7"(W) x 7.2"(D) x 1.38"(H), Weight: 3 lb. (Net) 10 lb. (gross with packaging) • Cooling: Slim CPU Fan with Heatsink • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available • Supports VESA, wall mount or rackmount brackets • Option: Slim 10a Series 1.4" Slim • Option: 100F Fanless 1.4" Slim • Option: 140D 7"x7.2"x1.4" • Option: 400R with RISER slot 500S Swap Bay 2x2.5" • Option: 1750C with slot • Option: 1750F Fanless with slot
|
Power Supply
• Power: DC12V 5A 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional 90V-240V 220W or higher wattage AC Power Supply
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10, IoT, Linux
• Option: Windows 7 (works with Skylake Processor family only)
|
Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, IP/PBX, IoT/Edge System, etc.
• Embedded-Longevity
Environment
• Operating Temperature: -5 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
|
