Sorry - this product is no longer available

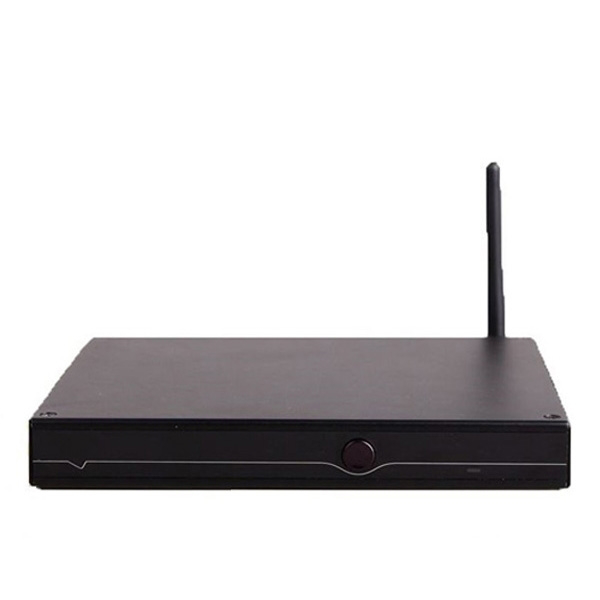

i39F-J1900

Fanless Bay Trail J1900, HD Graphics HDMI+VGA, 2 LAN+2COM, SATA+mSATA+MiniPCIe
Featured Highlights
Intel® Celeron® Processor
Intel® Bay Trail Platform (SOC)
Intel® HD Graphics 1920x1080, HDMI+VGA
DDR3L SO-DIMM for up to 2GB Memory
SATA-6Gb/s, mSATA-6Gb/s
2 Gigabit LAN, MiniPCIe WiFi
3 USB 3.0, 2 USB 2.0
5.1 ALC662 Audio Sound
DC19V 2.1A 40W or higher wattage Power Adapter (UL/CE/FCC Certified)
OS Support: Windows 8, Windows 10, IoT, Linux
Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IP/PBX, Traffic Controller, IoT/Edge System, etc.

SKU: i39F
Product specifications
Processor
• Intel® Celeron® J1900 2.00/2.42GHz 4Core 4Threads 2M 10W
• Intel® Celeron® J1800 2.41/2.58GHz 2Core 2Threads 1M 10W
Chipset
• Intel® Bay Trail Platform (SOC)
Graphics

• Intel® 7th Generation HD Graphics 1080p 2K Resolution
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 1920x1080 Support for HDMI® 1.4 version and HDCP 2.2
• 1 x VGA port

Memory
• 1 x DDR3L SO-DIMM
• 1600/1333MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 2GB
Network

• 2 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• 1 x MiniPCIe half size slot (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x MiniPCIe full size slot (for mSATA-6Gb/s)
• 1 x MiniPCIe half size slot (for WiFi+BT or Other Module)

Storage

• 1 x SATA 6Gb/s
• 1 x mSATA 6Gb/s via MiniPCIe full size slot

Audio

• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 3 x USB 3.0 ports
• 2 x USB 2.0 ports
• 1 x HDMI® port
• 1 x VGA port
• 2 x LAN ports
• 2 x 3.5mm Audio jacks
• 1 x DC-In 2.5mm Power Connector

Other I/O

• 2 x RS232 Serial COM ports (Side)

System BIOS
• AMI® UEFI / Legacy BIOS
Chassis

• Nano-iF Slim Fanless enclosure 7.46"(W) x 5.8"(D) x 1.45"(H)
• Net Weight: 2lb (net) 5 lb.(gross with packaging)
• Color: Black
• Option: Nano-i 7.46"(W) x 5.8"(D) x 1"(H)

Power Supply

• Power: DC19V 2.1A 40W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support
• Windows 8, Windows 10, IoT, Linux
Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IP/PBX, IoT/Edge System, etc.
Environment
• Operating Temperature: -5 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
