Think Big. Go Small. Eco-Smart Computing

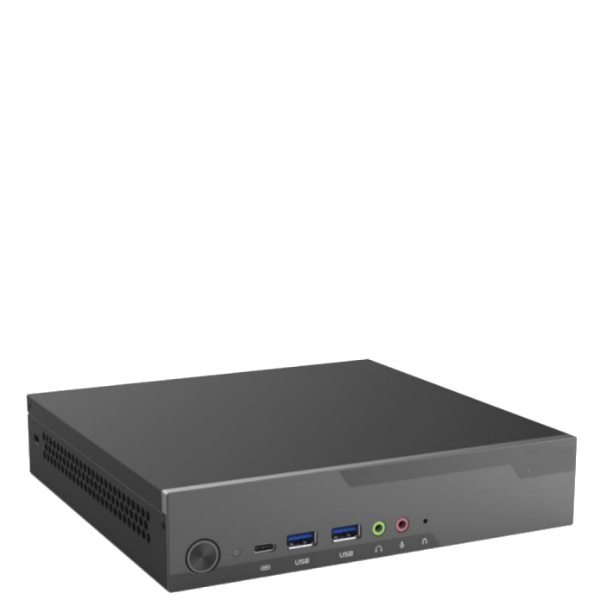

H610AL2V3c

1.4” Slim 12th Gen. Socket-S Alder Lake, 3 Display 2 HDMI® 2.1+DP, 3 M.2+2 LAN, 6 USB+2 COM+Type-C
Featured Highlights
  Intel® 12th Gen. Socket-S LGA1700 Core™ i7/i5/i3 Series Processor
  Intel® H610/B760/Q670 Express Chipset
  Intel® 12th Gen, UHD Graphics, 4K/5k/8K Resolution, 2 HDMI® 2.1+DP/VGA
  2 DDR4 SO-DIMM for up to 64GB Memory
  SATA-6Gb/s, M.2-NVMe/SATA
  2 Gigabit LAN, M.2-WiFi, Optional M.2-5G/4G-LTE
  2 USB 3.2, 2 USB 2.0, 2 COM, Type-C
  7.1 ALC897 Audio Sound
  DC12V/19V 60/90W (UL/CE/FCC Certified)
  OS Support: Windows 11, IoT, Linux
  Applications: POS/Kiosk, Digital Signage, A/V Player, AI Edge, Set Top Box, etc.


SKU: H610AL2V3c
Product specifications
Processor

• Intel® 12th Generation Comet Lake Processor
• Intel® Core™ i7-12700,  12C/20T 25M 65W
• Intel® Core™ i5-12400 6C/12T 18M 65W
• Intel® Core™ i3-12100,  4C/8T 12M 60W

Chipset

• Intel® H610/B760/Q670 Express Chipset

Graphics

• Intel® 12th 730 UHD Graphics
• Support 3 Displays
• 1 x DP 1.4, supporting a maximum resolution of 8K 60Hz (can be replaced with VGA port)
• 2 x HDMI® 2.1 ports, supporting a maximum resolution of 4K 60Hz

Memory

• 2 x DDR4 SO-DIMM, up to 64GB
• 3200/2933/2666MHz unbuffered non-ECC (Dual Channel I/O)

Network

• 2 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 3052/3042 (for 5G/4G-LTE Module)
• Wake on LAN, PXE boot (Diskless) supported

Expansion Slot

• 2 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
• 1 x M.2 3052/3042 (for 5G/4G-LTE Module Pair with SIM slot)

Storage

• 2 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Audio

• Realtek® ALC897 8-channel (7.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 2 x USB 2.0 ports
• 1 x DP port
• 2 x HDMI® 2.1 ports
• 2 x LAN ports
• 2 x COM
• 1 x DC-In 2.5mm Power Connector

Other I/O

• 2 x USB 3.2 ports (Front)
• 2 x 3.5mm Audio jacks (Front)
• Type-C USB 3.2 port(Front)

System BIOS
• AMI® UEFI 64MBit / Legacy BIOS
• Watchdog supported
Chassis

140E Mini Chassis (Sheet Metal)
• Dimensions: 7.48"(W) x 7.32"(D) x 1.57"(H) / Weight: 2.9 lb (Net) 6.5 lb (Gross).
• VESA, wall mount bracket supported

Power Supply

• Power: DC19V 6.32A Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11, IoT, Linux

Application

• SoHo PC, Thin Client, POS/Kiosk, Digital Signage, A/V Player, AI Edge, Set Top Box, etc.
• Embedded-Longevity

Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
