Think Big. Go Small. Eco-Smart Computing

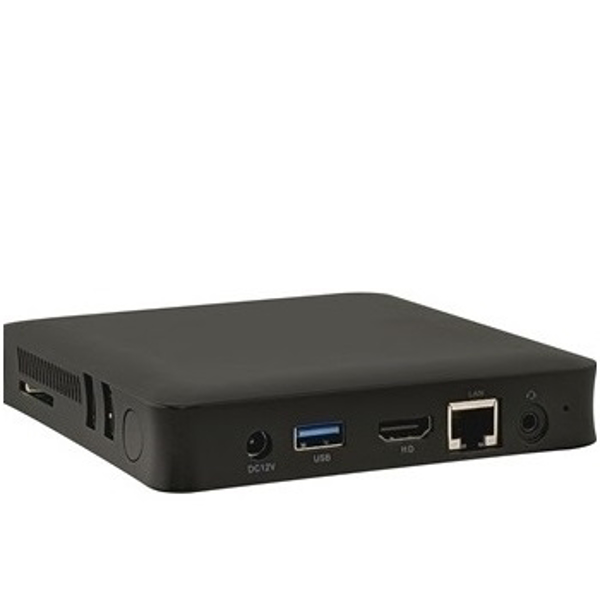

Z83G

Cherry Trail x5-Z8350, HD Graphics HDMI+VGA, 2GB/4GB RAM+32GB eMMC, 4 USB+ ac WiFi
Featured Highlights
Intel® Atom® x5-Z8350 Processor
Intel® Cherry Trail Platform (SOC)
Intel® 8th Generation HD Graphics, HDMI+VGA
2GB/4GB DDR3 Memory
32GB eMMC Storage
Gigabit LAN, 11ac WiFi+BT
USB 3.0, 3 USB 2.0
High Quality USB Audio
DC12V 2A 24W or higher wattage Power Adapter (UL/CE/FCC Certified)
OS Support: Windows 10 Home, IoT, Linux
Applications: Set Top Box, Digital Signage, etc.

SKU: Z83G
Product specifications
Processor
• Intel® Atom® x5-Z8350 1.44/1.92GHz 4Core 4Threads 2M 2W
Chipset
• Intel® Cherry Trail Platform (SOC)
Graphics

• Intel® 8th Generation HD Graphics
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 1920x1080 Support for HDMI® 1.4 version and HDCP 2.2
• 1 x VGA port

Memory

• 2GB/4GB DDR3 (built-in, non-changeable)
• 1600MHz unbuffered non-ECC (Single Channel I/O)

Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• 802.11 ac/n Dual-Band Wi-Fi (2.4GHz / 5.0GHz), Bluetooth 4.0
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Storage

• 32GB eMMC Flash Internal Storage
• 1 x TF (MicroSD) reader, supports 128G+ MicroSD/TF Card

Audio

• USB Audio Subsystem
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 1 x HDMI® port
• 1 x LAN port
• 2 x 3.5mm Audio jacks
• 1 x DC-In 2.5mm Power Connector
• 1 x TF reader, supports 128G+ MicroSD Card

Other I/O

• 1 x VGA port (Side)
• 1 x USB 3.0 port (Front)
• 3 x USB 2.0 ports (Front)

System BIOS
• AMI® UEFI / Legacy BIOS
Chassis

• Fanless Nano Plastic Enclosure
• Dimensions: 5.00"(W) x 5.00"(D) x 1.20"(H), Weight: 0.75 lb. (Net)
• Color: Black as default color, custom colors available with special order
• Custom logo is available for OEM order (MOQ is required)
• Supports VESA, wall mount or rackmount brackets

Power Supply
• Power: DC12V 2A 24W Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Powered by PoE supported
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10 Home, IoT, Linux
Application
• Set Top Box, Digital Signage, Traffic Controller, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
