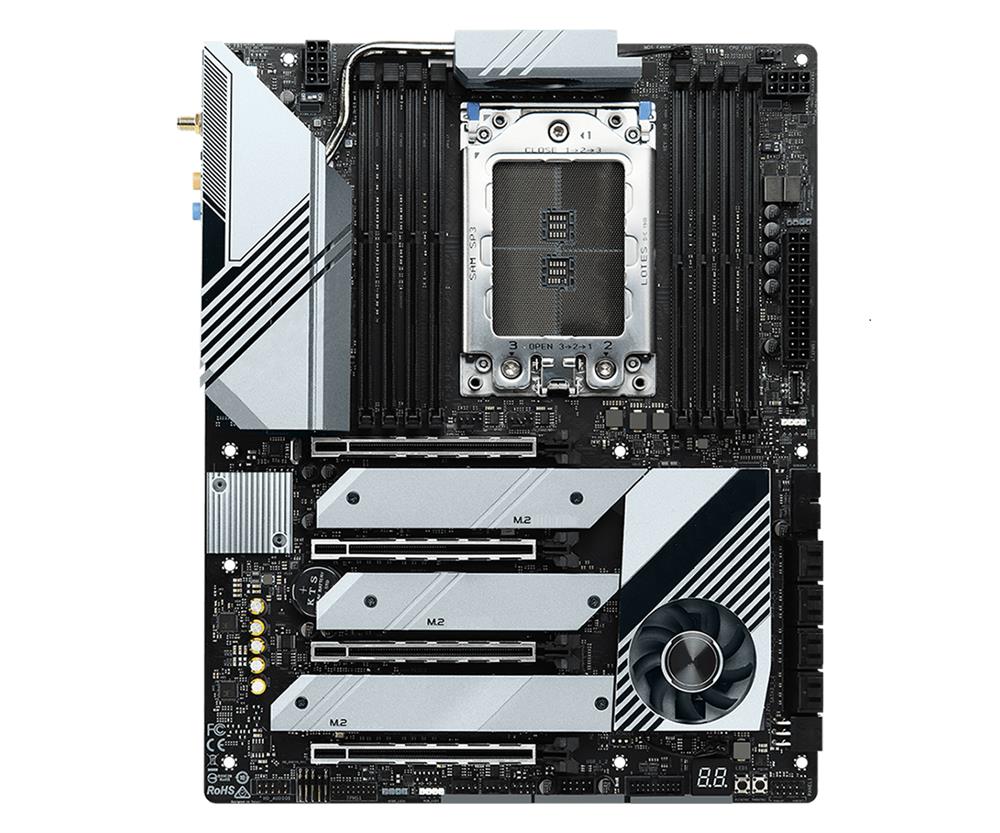

TRX40-E4T

4 PCIe 4.0 x16 + 3 M.2, 10Gbit + 2.5G LAN+WiFi6, 8 DDR4 4-Channel, DTS Sound
Featured Highlights
AMD® TRX40 Chipset, 3rd Generation Ryzen™ Threadripper™
4 PCIe 4.0 x16 slots, 4-way SLI/CrossFire™
3 M.2 NVMe Storage, 8 SATA-RAID
10Gbit LAN + 2.5Gbit LAN, 11ax WiFi-6
ALC4050H+ALC1200 DTS Audio Codec with S/PDIF
8 DDR4 DIMM, Upto 256G 4-Channel Memory
11 USB 3.2 ports (3 Gen2, 8 Gen1) Type-C
Design for high performance computing, Gaming.
Dimension: 21.6" (L) x 8.26"(W) x 20"(H)
Color: Black/White



SKU: TRX40-E4T
Product specifications
Processor

• AMD® Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors
• Ryzen™ Threadripper™ 3960X 24C/48T 3.8/4.5G 280W
• Ryzen™ Threadripper™ 3970X 32C/64T 3.7/4.5G 280W
• Ryzen™ Threadripper™ 3990X 64C/128T 2.9/4.3G 280W

Chipset

• AMD® TRX40 Chipset

Memory

• 8 x DIMM, Max. 256GB DDR4, 4-Channel I/O
• 4666(OC)+/4600(OC)/4000(OC)/3200/2933/2667MHz ECC or non-ECC, Un-buffered Memory

Graphics

• 4 x PCI Express 4.0 x16 slots for Graphics Cards
• Supports NVIDIA® 3-Way SLI™ Technology
• Supports AMD® 3-Way CrossFire™ X Technology

Audio

• Realtek® ALC 4050H+ALC 1220 8-Channel High Definition Audio CODEC
• Supports DTS
• Optical S/PDIF out port(s) at back panel
• 5 x 3.5mm Audio Jacks + 1 Optical port

Network

• Aquantia® AQC107 10Gbit Ethernet
• Realtek® Dragon RTL8125AG 2.5Gbit Ethernet
• Intel 802.11ax WiFi-6 M.2 Module + Bluetooth 5.0
• PXE Boot and Wake on LAN supported

Expansion Slot

• 4 x PCIe 4.0 x16

Storage

• 2 x M.2-2280/2260 NVMe PCIe 4.0 x4
• 1 x M.2-22110/2280/2260/2242/2230 NVMe PCIe 4.0 x4 or SATA-6GB/s
• 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 10

Internal I/O

• 1 x USB 3.2 Gen 2 for 1 Front Type-C Port
• 2 x USB 3.2 Gen 1 for 4 USB Ports (5Gb/s)
• 1 x USB 2.0 for 2 USB Ports
• 1 x M.2 (Vertical type) for Wi-Fi module
• 1 x TPM Header
• 2 x RGB LED Header(s)
• 2 x Addressable LED header(s)
• 1 x Debug LED
• 1 x CPU Fan connector (4-pin)
• 1 x CPU/Water Pump Fan connector (4-pin)
• 3 x Chassis/Water Pump Fan connector(s) (4-pin)
• 1 x 24-pin ATX Power-in connector
• 2 x 8-pin ATX 12V Power-in connector(s)
• 1 x 6-pin ATX 12V Power-in connector
• 1 x Front panel audio Header
• 1 x Front Panel Header
• 1 x Power-on button
• 1 x Clear CMOS button
• 1 x CPU Over Clock Switch

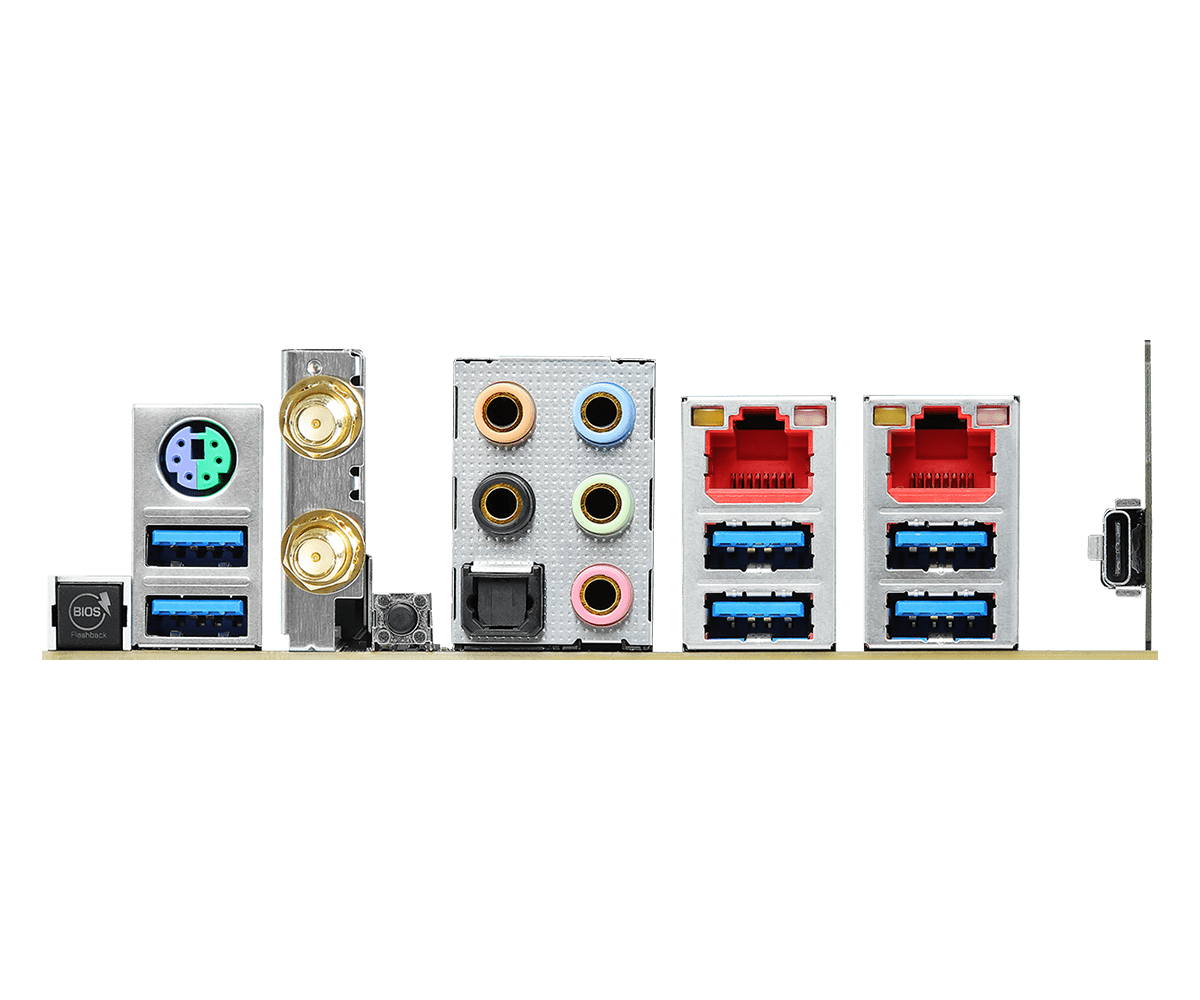

Back I/O

• 2 x LAN (RJ45) port(s)
• 2 x USB 3.2 Gen 2 Type-A Ports (10Gb/s)
• 1 x USB 3.2 Gen 2x2 Type-C Port (20Gb/s)
• 4 x USB 3.2 Gen 1 Type-A Ports (5Gb/s)
• 1 x Optical S/PDIF out
• 5 x 3.5mm Audio jack(s)
• 1 x PS/2 Mouse/Keyboard Port
• 2 x WiFi Antenna Ports
• 1 x Clear CMOS Button Button
• 1 x BIOS FlashBack Button

BIOS

• 1 x 128Mb AMI
• ACPI 5.1, SMBIOS 2.3 Support

Manageability

•  WfM 2.0, WOL by PME, PXE

OS Support

• Windows® 10 64-bit, Linux

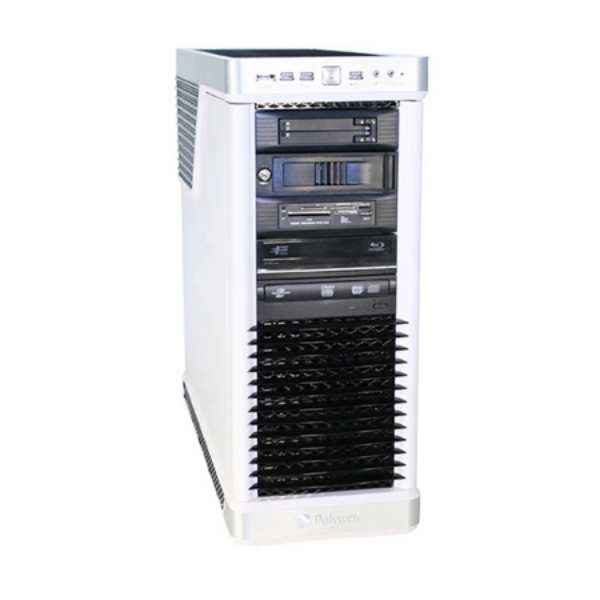

Chassis

TS900W 9-Bay ATX Tower
• 9 external 5.25" with Easy Front Removable Tray
• 210 (W) x 510 (H) x 549 (D) mm, 8.26 (W) x 20 (H) x 21.6 (D) inch

Power Supply
• 750W 80 Plus high efficiency active PFC (90V to 240V power in auto-switch)
• Quiet 140mm cooling fan, FCC, CE, CSA, UR Certified
• Option: 550W, 650W, 850W, 900W, 1000W , 1250W or 1500W available for custom configuration.
Application

• High Performance Computing, Gaming, Server, etc.

Environment
• Operating Temperature: 0 to +55 C°
• Non operating temperature: -20 to +70 C°
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• RoHS
*
*
*
