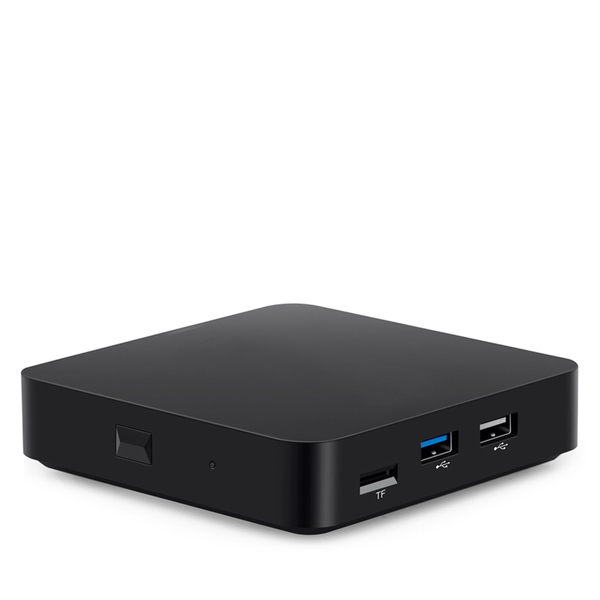

T5-mini

8Core ARM® Cortex®-A53, HDMI 2.0 4K Display, AndroidTV 9.0 with ChromeCast, USB 3.0+USB 2.0 + MicroSD/TF
Featured Highlights
ARM® Cortex®-A53 Processor
S905X
Mali™ G31 4K Graphics with HDMI 2.0
2GB DDR3 Memory
16GB eMMC Storage
Gigabit Ethernet, 11ac WiFi+BT
USB 3.0, USB 2.0, MicroSD/TF
5.1 HD Audio with S/PDIF and 3.5mm
Power Supply: DC5V Input
OS Support: AndroidTV 9.0
Applications: Set Top Box, Home Entertainment, IPTV, Media Player etc.

SKU: ARM-A9GT5
Product specifications
Processor

• ARM® Cortex®-A53 8Core up to 1.20GHz

Chipset

• S905X

Graphics

• Mali™ G31
• Support 1 Graphics port
• 1 x HDMI® 2.0, 4K 60Hz Graphics port

Memory

• 2GB DDR3 (built-in, non-changeable)

Network

• 1 x RJ45 Gigabit (10/100/1000 Mb/s) LAN
• 802.11ac Dual-Band Wi-Fi (2.4GHz / 5.0GHz)
• Bluetooth 4.1

Storage

• 16GB eMMC Flash Internal Storage
• 1 x TF (MicroSD) Slot supports 128GB+ MicroSD/TF Card

Audio

• 5.1 Digital HD Audio via HDMI®
• 1 x 3.5mm Analog Stereo Audio jack
• 1 x Optical S/PDIF Digital port

Back Panel I/O

• 1 x HDMI® 2.0 port
• 1 x LAN port
• 1 x Optical S/PDIF Digital Out
• 1 x DC-In 2.5mm Power Connector

Other I/O

• 1 x USB 3.0 port (Front)
• 1 x USB 2.0 port (Front)
• 1 x TF reader (Front)

Chassis

• NUC Tiny Chassis
• Dimensions: 4.10"(W) x 4.10"(D) x 0.95"(H), Weight: 0.7 lb. (Net)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA/wall mount brackets

Power Supply

• Power: DC5V 3A 24W Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Powered by PoE supported
• Energy Star Compliance, Idle mode at <1W

OS Support

• AndroidTV 9.0 (Certified by Google)

Application

• Set Top Box, Home Entertainment, IPTV, Media Player, etc.

Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
