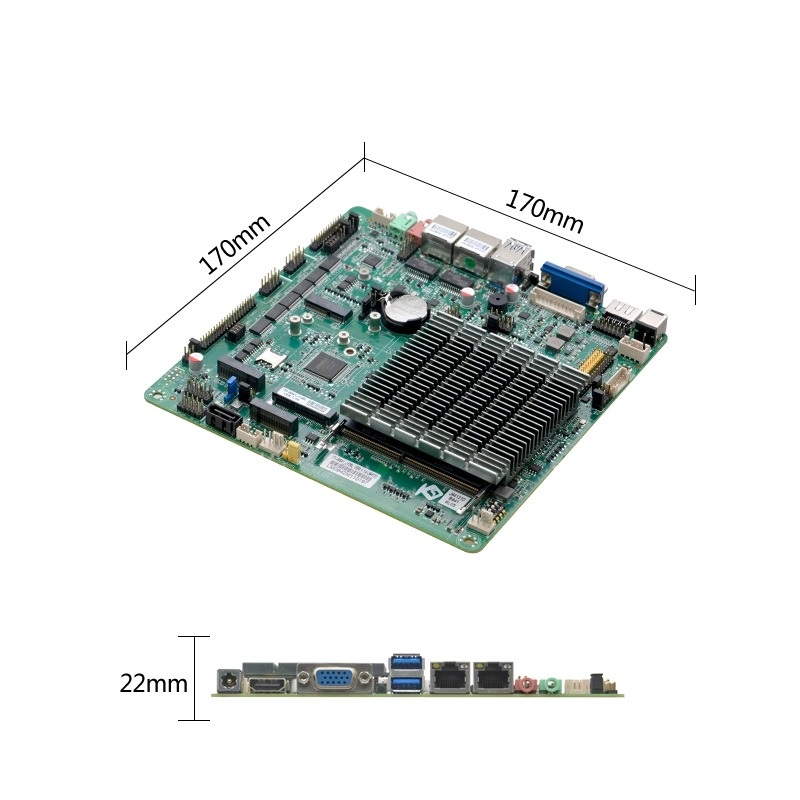

Slim-N6400AL2

Elkhart Lake Family, UHD for 10th Graphics VGA + HDMI + eDP + LVDS, 2 M.2 + MiniPCIe + SIM, Expansion PCIe Slot x 2

Featured Highlights
	Intel® Pentium J6426, Celeron® J6412 Processor
	Intel®Elkhart Lake SoC
	Intel® UHD Graphics , HDMI+VGA+eDP+LVDS
	1 DDR4 SO-DIMM for up to 32GB Memory
	PCI Express 3.0 x 2 slot, Expansion PCIe Slot
	2 Realtek® Gigabit LAN, M.2 WiFi + MiniPCIe 5G-LTE w/ SIM
	2 USB 3.0, 4 USB 2.0, 2 RJ45 Gigabit Ethernet
	SATA-6Gb/s, M.2 SATA SSD
	7.1 ALC897 Audio Sound
	Power Supply: DC12V Input
	OS Support: Windows 10/11, IoT, Linux
	Applications: AI-IoT, Digital Signage, POS/Kiosk, etc.

In Stock

SKU: Slim-N6400AL2

Specifications
Request for Info

Product specifications

Processor • Intel® Celeron® J6412 2.0/2.6GHz 4Core 4Threads 4M 10W • Intel® Pentium® J6426 2.0/3.2GHz 4Core 4Threads 4M 10W Chipset • Intel® Elkhart Lake Platform (SOC)
Graphics • Intel® UHD Graphics • 1 x VGA • 1 x HDMI® , supporting a maximum resolution of 3840x2160 60Hz • 1 x eDP header • 1 x LVDS header Memory • 1 x DDR4 SO-DIMM • 3200/2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 32GB
Network • 2 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 slot, support M.2 Key E 2230 WiFi module • 1 x M.2 slot, support M.2 Key B 2242/2252 5G module • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 2 x PCI Express 3.0 x2 slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 slot, support M.2 Key E 2230 WiFi module
Storage • 1 x 7pin SATA3.0 port, transfer speed up to 6Gbps • 1 x MSATA slot,Support SSD, transfer speed up to 6Gbps • 1 x M.2 slot, support M.2 Key M 2260/2280 SATA standard SSD Audio • Realtek® ALC897 8-channel (7.1) • 2 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 2 x USB 3.0 ports • 1 x HDMI® port • 1 x VGA • 2 x RJ45 Gigabit Ethernet • 2 x 3.5mm Audio jacks • 1 x DC-In 2.5mm Power Connector Internal I/O • 1 x DC connector, 14pinm, support 12V input output • 1 x JVGA, 112pin, same signal with DB15 VGA • 1 x JHDMI, 28pin, same signal with HDMI • 1 x LVDS port, 215pin, support dual channel 24BIT • 1 x EDP port, 215pin with LVDS optional by jumper • 1 x Screen backlight power supply port, 16pin • 4 x USB2.0, 25pin • 6 x RS232,COM1/2 Support the 9th pin with charge functional,COM2/COM3 support RS485/422 functional • 1 x SATA power supply port, 14pin • 1 Front audio port, 25pin • 1 x Amplifier port, 14pin • 1 x LPT, 213pin • 1 x SIM • 1 x Front panel function button and LED indicator port, 25pin
Function • 1 x 4in/4out GPIO header System BIOS • AMI® UEFI BIOS • Watchdog supported
Systemboard • Small Form Factor Chassis • 138D Small Form Factor with aluminum panel, Convertible to 1U Rackmount • Dimensions: 7"(W) x 7.2"(D) x 1.38"(H), Weight: 3 lb(Net) 10 lb(gross with packaging) • Cooling: Slim CPU Fan with Heatsink • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available • Supports VESA, wall mount or rackmount brackets • Option: Slim 10a Series 1.4" Slim • Option: 300B Aluminum 2.1" H 300A w/Slim DVD Bay 300R with RISER Slot
Power Supply • Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10/11, IoT, Linux
Applications • AI-IoT, Digital Signage, POS/Kiosk, etc. • Embedded-Longevity Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
