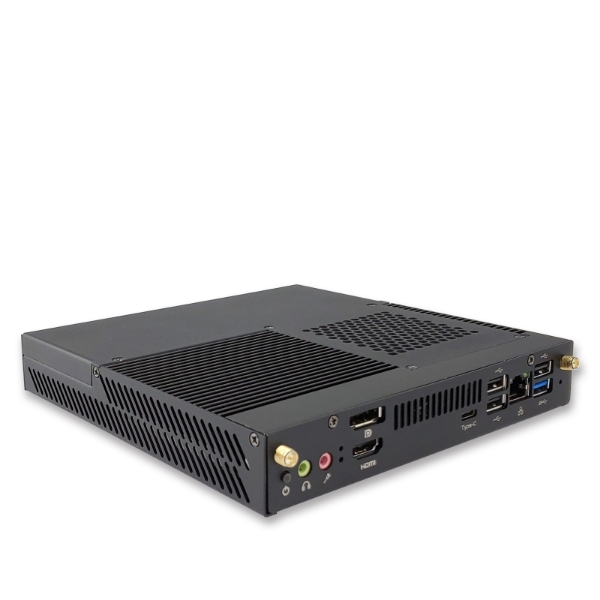

Slim-H510B/Q570B

11th Gen. Rocket Lake, 2 M.2 , 8 USB + Type-C, 3 HDMI + DP
Featured Highlights
  Supports Intel® 11th Gen. Processor
  Intel® H510/Q570 Chipset
  Intel® UHD 750 Graphics, 3 x HDMI+DP 1.2
  2 DDR4 SO-DIMM for up to 64GB Memory
  M.2 SSD/NVMe
  2 Gigabit LAN + M.2-WiFi
  3 USB 3.0, 5 USB 2.0, Type-C USB 3.2
  5.1 ALC662 Audio Sound
  DC12V or DC19V 60W Power Adapter (UL/CE/FCC Certified)
  OS Support: Windows 10/11, IoT, Linux, FreeBSD
  Applications: Digital Signage, Kiosk/POS, AI Edge, Set Top Box, Entertainment PC, Industrial Control, IoT, Home/Office PC, etc.

SKU: Slim-H510B/Q570B
Product specifications
Processor

• 11th Generation Intel® Socket-S Series LGA1200 Rocket Lake 35/65W
• Intel® Core™ i9-11900T, i9-11900 8C/16T 16M Cache
• Intel® Core™ i7-11700T, i7-11700 8C/16T 16M Cache
• Intel® Core™ i5-11400T, i5-11400, i5-11500, i5-11600 6C/12T 12M Cache
• 10th Generation Intel® Socket-S Series LGA1200 Comet Lake 35/65W
• Intel® Core™ i9-10900T, i9-10900 10C/20T 20M Cache
• Intel® Core™ i7-10700T, i7-10700 8C/16T 16M Cache
• Intel® Core™ i5-10400T, i5-10400, i5-10500, i5-10600 6C/12T 12M Cache
• Intel® Core™ i3-10100T, i3-10100 4C/8T 6M Cache
• Intel® Pentium® Gold G6405T, G6405, G6605 2C/4T 4M, Celeron® G5905T, G5905 2C/2T 4M

Chipset

• Intel® H510 Express Chipset
• Option: Intel® Q570 Express vPro® Technology

Graphics

• Intel® UHD 750 Graphics, 4K/5K Resolution
• Supports Triple Displays
• 3 x HDMI® ports
• 1 x DP 1.2 4K 60Hz Graphics port

Memory

• 2 x DDR4 SO-DIMM
• 3200MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2280 (for SATA-6GB/s or PCIe x4 NVMe)

Storage

• 1 x M.2 2280 (for SATA-6GB/s or PCIe x4 NVMe)

Network

• 2 x Intel® I219LM Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Audio

• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 2 x HDMI® ports
• 2 x USB 3.0 ports
• 2 x USB 2.0 ports
• 1 x LAN port
• 1 x DC-In 2.5mm Power Connector

Internal I/O

• Optional 1 Serial COM header for front or back COM port

Front Panel

• 1 x USB 3.0 port
• 3 x USB 2.0 ports
• 1 x Type-C USB 3.2 port (for Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions)
• 1 x HDMI® port
• 1 x DP 1.2 port
• 1 x LAN port
• 2 x 3.5mm Audio jacks

Function

• 1 x TPM header

System BIOS

• AMI® UEFI / Legacy BIOS

Chassis

• Nano Chassis: 7.9"(W) x 7.48"(D) x 1.18"(H)
• System Weight: 1.5 lb.

Power Supply

• Power: DC12V or DC19V 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 10/11, IoT, Linux, FreeBSD

Application

• Digital Signage, Kiosk/POS, AI Edge, Set Top Box, Entertainment PC, Industrial Control, IoT, Home/Office PC, etc.

Environment

• Operating Temperature: -5 to +45 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
