Think Big. Go Small. Eco-Smart Computing

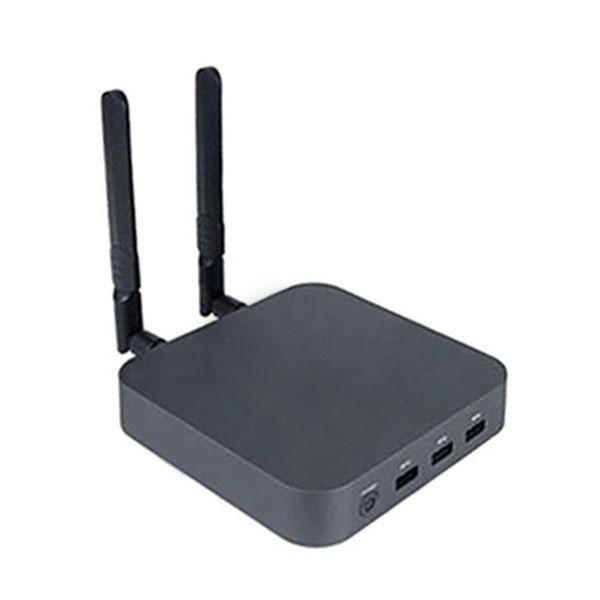

NGC-1LX

Intel® Celeron™ N3150, 1 DP+1 HDMI2.0
Featured Highlights
Intel® Celeron™ N3150 Processor
Intel® Braswell Platform (SOC)
Intel® 8th Generation HD Graphics 4K@24Hz Resolution, 1 DP+1 HDMI2.0
4GB DDR3 Memory
11ac WiFi+BT 4.2
3 USB 3.0
5.1 HDMI Audio Sound
Power Supply: DC5V input
OS Support: Linux
Applications: Digital Signage, Surveillance, Media Player/IPTV, AV Player, etc.

SKU: NGC-1LX
Product specifications
Processor
• Intel® Celeron® N3150 1.60/2.08GHz 4Core 4Threads 2M 6W
Chipset
• Intel® Braswell Platform (SOC)
Graphics
• Intel® 8th Generation HD Graphics 4K@24Hz Resolution
• Support 2 Graphics ports
• 1 x DP 4K Graphics Port
• 1 x HDMI® 2.0 4K Graphics Port
Memory
• 4G DDR3
Network
• 802.11ac/n Dual-Band Wi-Fi (2.4GHz / 5.8GHz)
• Bluetooth 4.2
Storage
• 128GB eMMC Flash internal Storage
Audio
• 5.1 HD audio subsystem via HDMI® 1.4 interface
• Support for S/PDIF Out
• 1 x 3.5mm analog stereo audio jacks
Back Panel I/O
• 3 x USB 3.0 Ports
• 1 x DP port
• 1 x HDMI® 2.0 port
• 1 x S/PDIF port
• 1 x 3.5mm audio jacks
Power Supply
• Power: DC5V Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Linux,
Application
• Digital Signage, Surveillance, Media Player/IPTV, AV Player, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
Product specifications
Processor
• Intel® Celeron® N3150 1.60/2.08GHz 4Core 4Threads 2M 6W
Chipset
• Intel® Braswell Platform (SOC)
Graphics
• Intel® 8th Generation HD Graphics 4K@24Hz Resolution
• Support 2 Graphics ports
• 1 x DP 4K Graphics Port
• 1 x HDMI® 2.0 4K Graphics Port
Memory
• 4G DDR3
Network
• 802.11ac/n Dual-Band Wi-Fi (2.4GHz / 5.8GHz)
• Bluetooth 4.2
Storage
• 128GB eMMC Flash internal Storage
Audio
• 5.1 HD audio subsystem via HDMI® 1.4 interface
• Support for S/PDIF Out
• 1 x 3.5mm analog stereo audio jacks
Back Panel I/O
• 3 x USB 3.0 Ports
• 1 x DP port
• 1 x HDMI® 2.0 port
• 1 x S/PDIF port
• 1 x 3.5mm audio jacks
Power Supply
• Power: DC5V Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Linux,
Application
• Digital Signage, Surveillance, Media Player/IPTV, AV Player, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
