Think Big. Go Small. Eco-Smart Computing

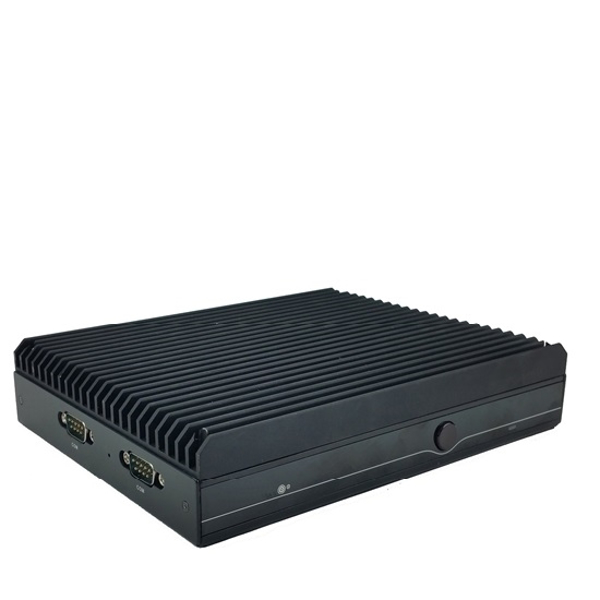

i59F

Skylake i5-6200u, HD Graphics 2 DP+VGA, 2 COM+6 USB+mSATA, 2 LAN+MiniPCIe SIM
Featured Highlights
Intel® Core™ i5-6200u Processor
Intel® Skylake Platform (SOC)
Intel® HD 510 Graphics, 4K Resolution, 2 DP+VGA
2 DDR4 SO-DIMM for up to 32GB Memory
MiniPCIe
Intel® Gigabit LAN + Realtek® Gigabit LAN
4 USB 3.0, 2 USB 2.0
SATA-6Gb/s, mSATA-6Gb/s
5.1 ALC662 Audio Sound
Power Supply: DC12-19V Input
OS Support: Windows 7, Windows 8, Windows 10, IoT, Linux
Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IP/PBX, Robot, Traffic Controller, IoT/Edge System, Industrial Control/IPC, etc.

SKU: i59F
Product specifications
Processor

• Intel® Core™ i5-6200u 2.30/2.80GHz 2Core 4Threads 3M 15W
• Option: 6th Generation Skylake Intel® Core™ i3-6100u, i3-6006u, i3-6157u, i5-6200u, i5-6260u, i5-6267u, i5-6287u, i7-6500u, i7-6560u, i7-6567u, i7-6600u, Pentium® 4405u, Celeron® 3855u

Chipset
• Intel® Skylake Platform (SOC)
Graphics

• Intel® HD 510 Graphics, 4K Resolution
• Support 3 Graphics ports
• 2 x DP 4K 60Hz Graphics port
• 1 x VGA port

Memory
• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 32GB
Network

• 1 x Intel® I219LM Gigabit (10/100/1000 Mb/s) LAN
• 1 x Realtek® RTL8111F Gigabit (10/100/1000 Mb/s) LAN
• 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Module with SIM pair)
• 1 x SIM socket (for 3G/4G-LTE option)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Module with SIM pair)

Storage
• 1 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
Audio

• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 2 x USB 3.0 ports
• 2 x USB 2.0 ports
• 2 x DP
• 1 x VGA port
• 2 x LAN ports
• 2 x 3.5mm Audio jacks
• 1 x DC-In 2.5mm Power Connector

Other I/O

• 2 x USB 3.0 ports (Side)
• 2 x Serial COM ports (Side)

Function

• 1 x TPM header

System BIOS
• AMI® UEFI 64MBit BIOS
• Watchdog supported
Chassis

Booksize F Slim Fanless enclosure 7.46"(W) x 5.80"(D) x 1.45"(H)
• Weight: 2 lb. (Net) 5 lb. (gross with packaging)
• Color: Black
• Option: Booksize i 7.46"(W) x 5.80"(D) x 1.00"(H)

Power Supply
• Power: DC19V 2.1A 40W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional DC12V 2.5mm AC Adapter
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support

• Windows 7, Windows 8, Windows 10, IoT, Linux
• Windows 7 is not supported by Kaby Lake and Coffee Lake processor but Skylake only

Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IP/PBX, IoT/Edge System, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
