 Think Big. Go Small. Eco-Smart Computing

Nano-U10L2C-i3

10th Gen. Comet Lake-u, UHD620 4K GPU 2 Display, 2LAN+COM SATA+M.2, 6 USB + Type-C USB + SD/MMC
Featured Highlights
Intel® Core™ i7/i5/i3/Celeron®/Pentium®-u Processor
Intel® Comet Lake-u/Whiskey Lake-u Platform (SOC)
Intel® UHD 620 Graphics,4K/5K Resolution, HDR 10Bit color, HDMI 2.0+DP
2 DDR4 SO-DIMM for up to 64GB Memory
SATA-6Gb/s, M.2 SSD/NVMe
2IN1 SD/MMC
2 Gigabit LAN, M.2 WiFi
4 USB 3.0, 2 USB 2.0, Type-C, COM
Realtek® ALC662 5.1 Audio Codec
DC19V 2.1A 40W or higher wattage Power Adapter (UL/CE/FCC Certified)
  Optional DC12V 3.42A AC Adapter
OS Support: Windows 10/11, IoT, Linux
Applications: Digital Signage, Set Top Box, etc.




SKU: Nano-U10L2C-i3
Product specifications
Processor

• Intel® Core™ i7-10510u 1.80/4.90GHz 4Core 8Threads 8M 10/15/25W
• Intel® Core™ i5-10210u 1.60/4.20GHz 4Core 8Threads 6M 10/15/25W
• Intel® Core™ i3-10110u 2.10/4.20GHz 2Core 4Threads 4M 10/15/25W
• Intel® Pentium® Gold-6405u 2.40GHz 2Core 4Threads 2M 12.5/15W
• Intel® Celeron® 4205u 1.80GHz 2Core 2Threads 2M 12.5/15W
• Intel® Core™ i7-8665u 1.90/4.80GHz 4Core 8Threads 8M 15/25W
• Intel® Core™ i7-8565u 1.80/4.60GHz 4Core 8Threads 8M 15/25W
• Intel® Core™ i5-8265u 2.10/3.90GHz 4Core 8Threads 6M 15/25W
• Intel® Core™ i3-8145u 1.60/3.90GHz 2Core 4Threads 4M 15/25W
• Intel® Pentium® Gold-5405u 2.3GHz 2Core 4Threads 2M 15W

Chipset
• Intel® Comet Lake-u Platform (SOC)
• Option: Intel® Whiskey Lake Platform (SOC)
Graphics

• Intel® UHD 620 Graphics, 4K/5K Resolution, HDR 10Bit color
• Support 2 Graphics ports
• 1 x HDMI® 2.0, 4K 60Hz Graphics port
• 1 x DP, 4K 60Hz Graphics port

Memory

• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Network

• 2 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• Wake on LAN, PXE boot (Diskless) supported

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Storage

• 1 x SATA 6Gb/s
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Audio

• Realtek® ALC662 5.1 Audio Codec
• 2 x 3.5mm Analog Stereo Audio jacks

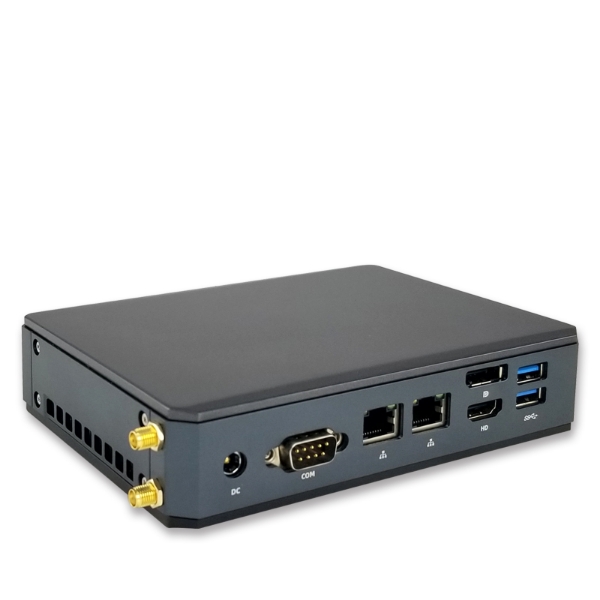

Back Panel I/O

• 1 x HDMI® port
• 1 x DP
• 2 x LAN port
• 1 x COM port
• 2 x USB2.0 or USB 3.0 ports
• 1 x DC-In Power Connector

Other I/O

• 2 x USB 3.0 ports (Front)
• 2 x USB 2.0 ports (Front)
• 2 x 3.5mm Audio jacks (Front)
• 1 x Type-C port (Front)
• 1 x SD/MMC Card reader (Front)

System BIOS
• AMI® UEFI 64MBit / Legacy BIOS
• Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and System Management BIOS (SMBIOS)
• Watchdog supported
Chassis

• Nano-U10FL2C: Nano-F10 Fanless Chassis. 7.87"(W) x 4.92"(D) x 2.24"(H), Weight: 2.75 lb. (Net) 5 lb. (gross)
• Nano-U10FL2: Nano-6FL Fanless Chassis: 6.61"(W) x 5.04"(D) x 1.89"(H), Weight: 2.5 lb. (Net) 5 lb. (gross)
• Nano-U10L2C: Nano-10 Chassis with heatpipe blower. 6.61"(W) x 5.04"(D) x 1.50"(H), Weight: 2 lb. (Net) 4 lb. (gross)
• One 2.5" drive bay
• Color: Black or Grayness as default color, other colors and custom logo available with MOQ order
• Supports VESA/wall mount brackets

Power Supply

• Power: DC19V 2.1A 40W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional DC19V 3.42A 2.5mm AC Adapter
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 10/11 64-bit, IoT, Linux, FreeBSD

Application
• Digital Signage, Set Top Box, etc.
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
