Think Big. Go Small. Eco-Smart Computing

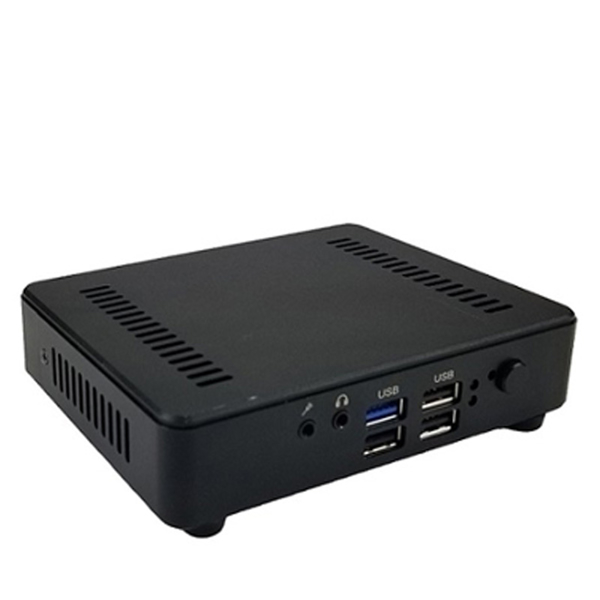

Nano-N2807L2

Bay Trail N2807, HD Graphics HDMI+VGA+LVDS, 2 LAN+SIM+6 COM, SATA+mSATA+MiniPCIe
Featured Highlights
Intel® Celeron™ N2807 Processor
Intel® 7th Generation HD Graphics 1080p 2K Resolution, HDMI+VGA+LVDS
DDR3L SO-DIMM for up to 8GB Memory
MiniPCIe
2 Intel® Gigabit LAN, SIM
USB 3.0, 5 USB 2.0
SATA-6Gb/s, mSATA-5Gb/s
5.1 ALC662 Audio Sound
Power Supply: DC12V Input
OS Support: Windows 7, Windows 8x, Windows 10, IoT, Linux
Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IP/PBX, Traffic Controller, IoT/Edge System, etc.

SKU: Nano-N2807L2
Product specifications
Processor
• Intel® Celeron® N2807 1.58/2.16GHz 2Core 2Threads 1M 2.5/4.3W
Chipset

• Intel® Bay Trail Platform (SOC)

Graphics

• Intel® 7th Generation HD Graphics 1080p 2K Resolution
• Support 3 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 1920x1080 Support for HDMI® 1.4 version and HDCP 2.2
• 1 x VGA port
• 1 x LVDS header

Memory
• 1 x DDR3L SO-DIMM
• 1600/1333MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 8GB
Network

• 2 x Intel® Gigabit (10/100/1000 Mb/s) LAN
• 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Module with SIM pair)
• 1 x SIM socket (for 3G/4G-LTE option)

Expansion Slot

• 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Module with SIM pair)
• 1 x MiniPCIe full size slot (for mSATA-6Gb/s)

Storage

• 1 x SATA 6Gb/s
• 1 x mSATA 6Gb/s via MiniPCIe full size slot

Audio
• Realtek® ALC662 6-channel (5.1)
Back Panel I/O

• 1 x USB 3.0 port
• 1 x USB 2.0 port
• 1 x HDMI® port
• 1 x VGA port
• 1 x LVDS port
• 2 x LAN ports
• 1 x DC-In 2.5mm Power Connector

Internal I/O

• 4 x USB 2.0 headers
• 6 x Serial COM headers
• 1 x Parallel port header
• 1 x PS/2 header

Function

• 1 x 4in/4out GPIO header

System BIOS
• AMI® UEFI 64MBit BIOS
• Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and System Management BIOS (SMBIOS)
• Watchdog supported
Chassis

• NUC-G1 Fanless Enclosure
• Dimensions: 4.59"(W) x 4.23"(D) x 1.18"(H) (depth dimension changeable), weight: 2.5 lbs
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA/wall mount brackets
• Option: NUC-N3 5.5"(W) x 4.96"(D) x 1.54"(H)

Power Supply
• Power: DC12V 2A 24W Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Powered by PoE supported
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 7, Windows 8x, Windows 10, IoT, Linux
Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IP/PBX, Traffic Controller, IoT/Edge System, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
