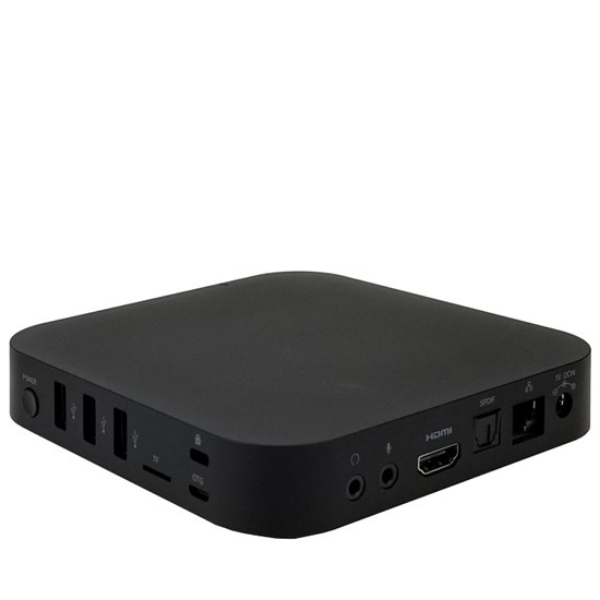

Picture of Nano-MX5 Series

Picture of Nano-MX5 Series

Picture of Nano-MX5 Series

Picture of Nano-MX5 Series

Picture of Nano-MX5 Series

Picture of Nano-MX5 Series

Picture of Nano-MX5 Series

Nano-MX5 Series

5" Plastic Nano Form Factor for N/J /Z and ARM-Series

Featured Highlights
	Dimensions: 5.00"(W) x 5.00"(D) x 1.20"(H)
	Nano Size Plastic Chassis for J/N/Z and ARM Series CPU
	DC 5V-12V 15W-36W Power In
	Supports VESA, wall mount or rackmount brackets
	Color: Black or Silver as default color, custom colors available with special order
	Applications: Set Top Box, Digital Signage, POS/Kiosk, Traffic Controller, etc.

SKU: Nano-MX5

Support Models
Request for Info

Model	Processor	Chipset	Memory	Graphics	Network	M.2	MSata	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio
Z83N	x5-Z8350	Cherry Trail	0 DDR3OB	8th Gen. HD	1 Realtek\RTL8111GS-CG+11ac WiFi/BT			3 F	1 F	1 HDMI+1 miniDP	MiniPCIe		ALC5645-CGT
X9	RK3288	RK3288	0 DDR3OB	4 Core Mali-T7	1 RJ45+11ac WiFi+BT 4.0			3		1 HDMI2.0			5.1 HDMI
X39	RK3399	RK3399	0 DDR4OB	Mali T860	1 RJ45+11ac WiFi+BT 4.1			3 S	1 S	1 HDMI2.0+1 Type-C		IR/F+PI/F+PB/S	5.1 HDMI
X7	RK3188	RK3188	0 DDR3OB	4 Core Mali-400	1 RJ45(100M)+11n WiFi+BT 4.0			3		1 HDMI			5.1 HDMI
U9	S905	S905	0 DDR3OB	Mali T860	1 RJ45+11ac WiFi+BT 4.1			3		1 HDMI2.0			5.1 HDMI
U1	ARM® Cortex-A53	S905	0 DDR3OB	Penta-Core Mali 450	1 Realtek+11ac WiFi/BT			3		1 HDMI+TF Reader			5.1 HDMI
X10	RK3368	RK3368	0 DDR3OB	PowerVR G6110	1 RJ45+11ac WiFi+BT 4.1			3		1 HDMI2.0			5.1 HDMI
U22-XJ	S922XJ	S905	0 DDR4OB	Mail-G52	1 RJ45+11ac WiFi+BT 4.1			3 S	3 S	1 HDMI2.0		PI/F+PB/S	PI/F+PB/S
Z83G	x5-Z8350	Cherry Trail	0 DDR3OB	8th Gen. HD	1 Realtek+11ac WiFi/BT			3 F	1 F	1 HDMI/R+1 VGA/S			USB Audio
Nano-Z83-4D	x5-Z8350	Cherry Trail	0 DDR3OB	8th Gen. HD	1 Realtek+11ac WiFi/BT			3 F	1 F	1 HDMI+1 miniDP	MiniPCIe		USB Audio
