Nano-F7S Series

Fanless Aluminum with 2.5" Swap Bay for 12x12cm Nano Series
Featured Highlights
Dimensions:
8.27"(W) x 6.30"(D) x 1.38"(H)

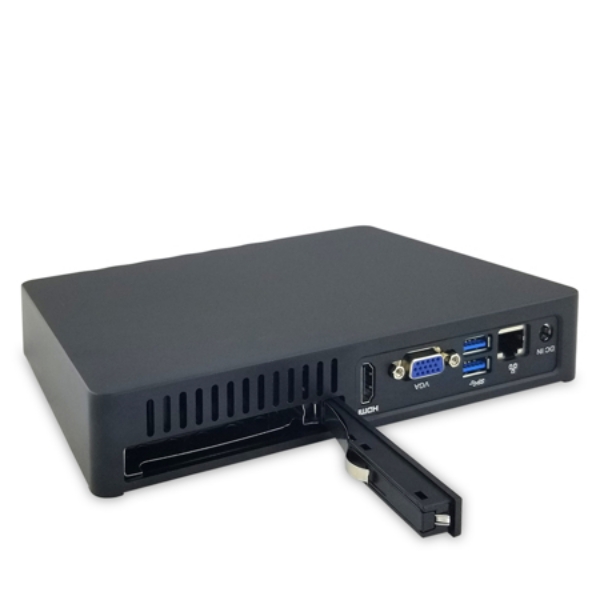

Fanless Aluminum Chassis with 2.5" Swap drive bay for 12x12cm Nano Series MB
Supports u, N, J, E, A-series CPU for Fanless operations
DC12-24V  36-60W Power In
Color: Black (Custom colors available with special order)
Supports VESA, wall mount as well for 1U Multiple System tray.
Applications: Digital Signage, AV Home Entertainment, Vehicle/ Boat PC, Set top box, Surveillance, Network Appliance, Medical Equipment, IP Phone
SKU: Nano-F7S
Model Processor Chipset Memory Graphics Network M.2 MSata USB2.0 USB3.0 Ports Expansion OtherIO Audio
Nano-U10F i7-10510u Comet Lake-u 2 DDR4SO Intel UHD 620 1 Realtek\RTL8111H 1-8 1 2 F 2 F + 2 R 1 HDMI+1 DP 2.1 ALC269
Nano-8000FL2C i7-8550u Skylake-uKaby Lake-u/-r 1 DDR4SO Intel UHD 620 Intel HD 610 1 Realtek+option:1 Realtek 1 1 option 2 R+2 H 2 F + 2 R 1 HDMI+1 VGA\DP GPIO 5.1 HDMI
Nano-8000A i5-8250u Skylake-u Kaby Lake-u/-r 1 DDR4SO Intel UHD 620 1 Realtek + WiFi+BT 1 1 2 R 2 F 1 HDMI+1 Type-C/F 5.1 HDMI
Nano-8000C2 i5-8250u Kaby Lake-r Kaby Lake-u 0 DDR4OB Intel UHD 620 Intel HD 620 1 Realtek 1 2 R 2 R+2 F 1 HDMI 5.1 HDMI
Nano-7200L2/6100L2 i3-6100u Skylake-u Kaby Lake-u 1 DDR4SO Intel HD 520 2 Realtek 1 1 2 R+1 H 4 F 1 HDMI+1 DP MiniPCIe 5.1 ALC662
Nano-7100D i3-7100u Kaby Lake-u 1 DDR4SO Intel HD 620 1 Realtek 1-4 1 2 F 4 F 1 HDMI+1 DP 7.1 ALC892
Nano-6200C/6100C i3-6100u Skylake-u 1 DDR4SO Intel HD 520 1 Realtek 2-8 1 2 F 4 F 1 HDMI+1 VGA 2 MiniPCIe 5.1 ALC662
Nano-3855L2 3855u Skylake-u Kaby Lake-u 1 DDR4SO Intel HD 520 1 Intel\i219LM+option:1 Realtek\RTL8111F 1 1 option 2 R+2 F+2 H 2 F 1 HDMI+1 VGA 1xPS/2+GPIO+TPM 5.1 ALC662
Nano-6100D i3-6100u Skylake-u 1 DDR4SO Intel HD 520 1 Realtek 1 1 2 F 4 F 1 HDMI+1 VGA 2 MiniPCIe 5.1 ALC662
