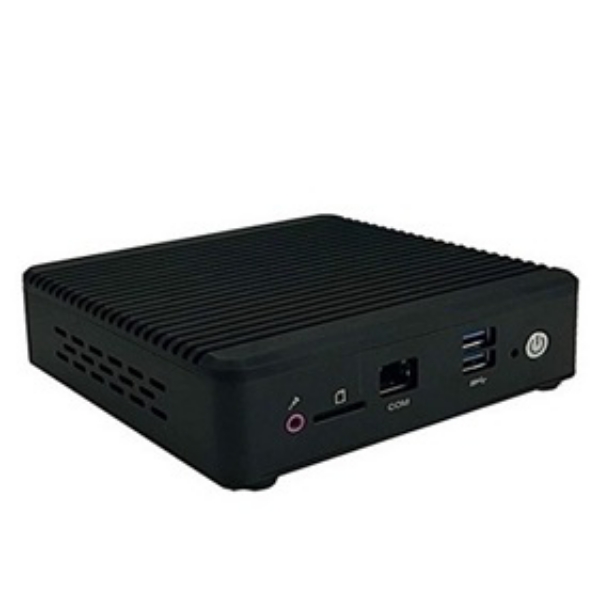

Nano-F4 Series

Nano-Size Aluminum Chassis for 12x12cm MB Models
Featured Highlights
Dimensions:
5.43"(W) x 4.96"(D) x 1.54"(H)  with variable width to support different model options
For 12x12cm Nano-Size MB, Aluminum. Heatsink Top for Fanless or with Fan Configurations depends on CPU type
Supports u, N, J, E, A-series CPU configurations
7mm~15mm 2.5" HD/SSD Drive Bay
DC12-24V  36-60W Power In
Supports VESA, wall mount as well for 1U Multiple System tray.
Color: Black or Silver  as default color, custom colors available with special order
Applications: Set Top Box, Digital Signage, POS/Kiosk, Traffic Controller, etc.

SKU: Nano-F4/H/HD
Model Processor Chipset Memory Graphics Network M.2 MSata USB2.0 USB3.0 Ports Expansion OtherIO Audio
Nano-N3350L2 N3350 Apollo Lake 0 DDR3OB Intel HD 500 Intel HD 505 2 Realtek 1 2 S 4 S 1 HDMI+1 DP+1 LVDS SD(Option) 2.1 ALC269
Nano-N3450L2/J3455L2 N3350 Apollo Lake 1 DDR3SO Intel HD 500 2 Realtek 1 2 F 4 F 2 HDMI+1 VGA MiniPCIe 5.1 ALC662
Nano-J1900L2 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 2 Realtek 1 2 R+2 H 2 F 1 HDMI+1 VGA MiniPCIe-F 5.1 ALC662
Nano-J1900L2C2 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 2 Realtek 1 3 F+2 H 1 F 1 HDMI+1 VGA 2 MiniPCIe 5.1 ALC662
Nano-J1900L4 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 4 Intel\WG82573V 1 2 F+2 H 1 F 1 VGA MiniPCIe-F GPIO 5.1 ALC662
Nano-J1900A/Nano-E3845 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 1 Realtek 1 3 R 1 HDMI+1 VGA+1 LVDS/H 2 MiniPCIe 5.1 ALC662
Nano-J1900L2V3 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 2 Realtek 1 2 F+2 H 2 F 1 HDMI+1 VGA MiniPCIe-F 5.1 ALC662

Support Models

*
*
*
