 Think Big. Go Small. Eco-Smart Computing

J4125/J5040AE

Gemini Lake Family, UHD600 4K Graphics DP+HDMI, LAN+COM, PCIe x2+2 M.2+MiniPCIe+SIM
Featured Highlights
Intel® Celeron® Processor
Intel® Gemini Lake Platform (SOC)
Intel® UHD 600 Graphics, HDMI+DP+eDP+LVDS
2 DDR4 SO-DIMM for up to 8GB Memory
PCI Express 3.0 x2 slot
Realtek® Gigabit LAN, M.2 WiFi + MiniPCIe 4G-LTE w/ SIM
2 USB 3.0, 7 USB 2.0
SATA-6Gb/s, M.2 SSD/NVMe
5.1 ALC662 Audio Sound
Power Supply: DC12V Input
OS Support: Windows 10, IoT, Linux
Applications: Set Top Box, Digital Signage, POS/Kiosk, etc.

SKU: J4125/J5040AE
Product specifications
Processor

• Intel® Celeron® J4125 2.0/2.7GHz 4Core 4Threads 4M 10W
• Intel® Pentium® Silver J5040 2.0/3.2GHz 4Core 4Threads 4M 10W
• Intel® Celeron® J4005 2.00/2.70GHz 2Core 2Threads 4M 10W
• Intel® Celeron® J4105 1.50/2.50GHz 4Core 4Threads 4M 10W
• Intel® Celeron® J4025 2.00/2.90GHz 2Core 2Threads 4M 10W
• Intel® Pentium® Silver N5030 1.10/3.10GHz 4Core 4Threads 4M 6W
• Intel® Celeron® N4120 1.10/2.60GHz 4Core 4Threads 4M 6W
• Intel® Celeron® N4020 1.10/2.80GHz 2Core 2Threads 4M 6W

Chipset
• Intel® Gemini Lake Platform (SOC)
Graphics

• Intel® UHD 600 Graphics
• 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2
• 1 x DP 4K 60Hz Graphics port
• 1 x eDP header
• 1 x LVDS header

Memory
• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 8GB
Network

• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 socket (Taken by WiFi+BT Module)
• 1 x MiniPCIe full size slot (for 4G-LTE modem or Movidius™ Myriad™ X)
• 1 x SIM socket (for 3G/4G-LTE option)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x PCI Express 3.0 x2 slot
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x MiniPCIe full size slot (for 4G-LTE modem or Movidius™ Myriad™ X)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Storage

• 1 x SATA 6Gb/s
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
• 32/64/128GB eMMC Flash Internal Storage

Audio

• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 2 x USB 3.0 ports
• 3 x USB 2.0 ports
• 1 x HDMI® port
• 1 x DP
• 1 x LAN port
• 2 x 3.5mm Audio jacks
• 1 x DC-In 2.5mm Power Connector

Internal I/O

• 4 x USB 2.0 headers
• 2 x Serial COM headers
• 1 x eDP header
• 1 x LVDS header

Function

• 1 x 4in/4out GPIO header

System BIOS

• AMI® UEFI BIOS
• Watchdog supported

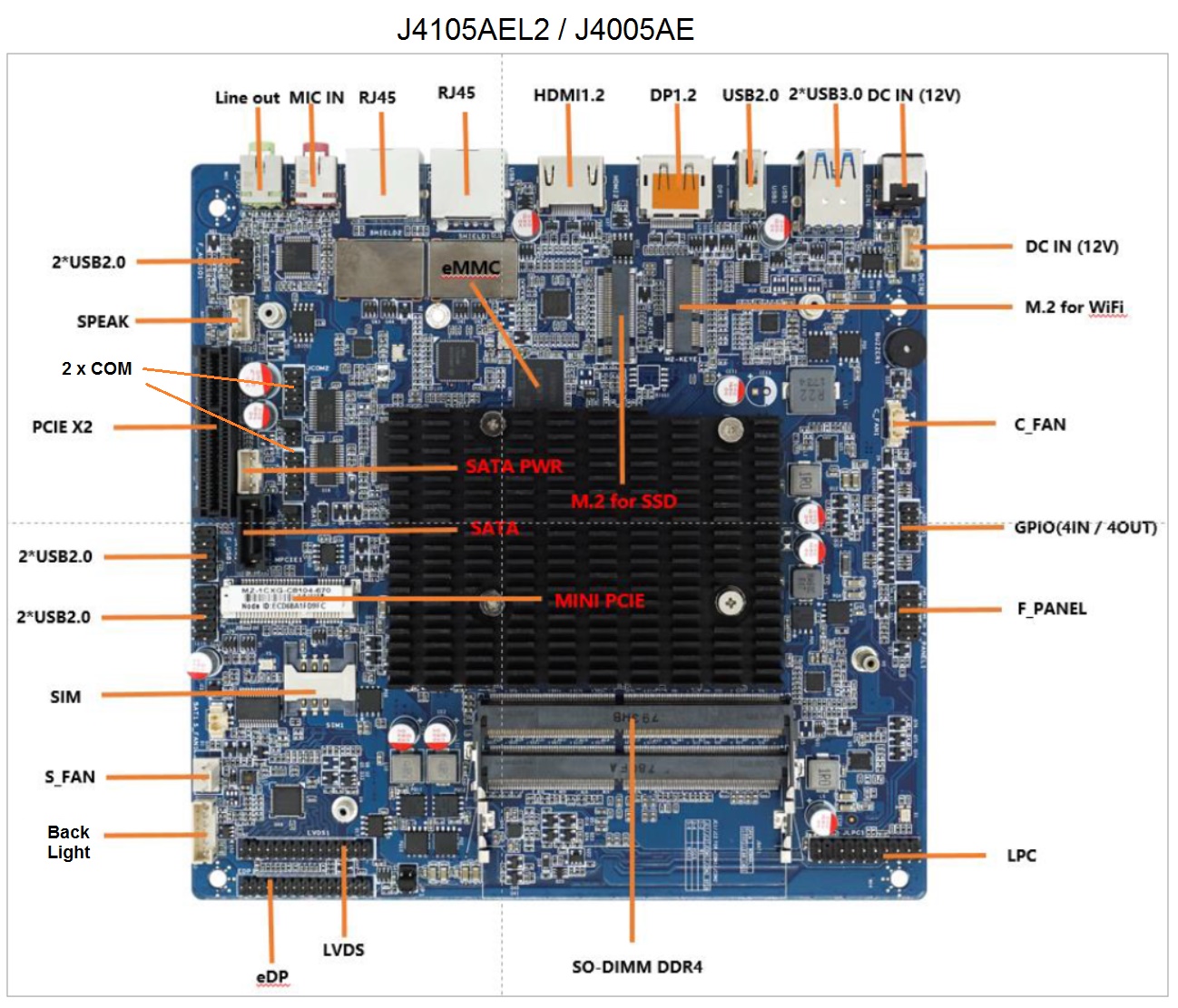

Systemboard
Small Form Factor

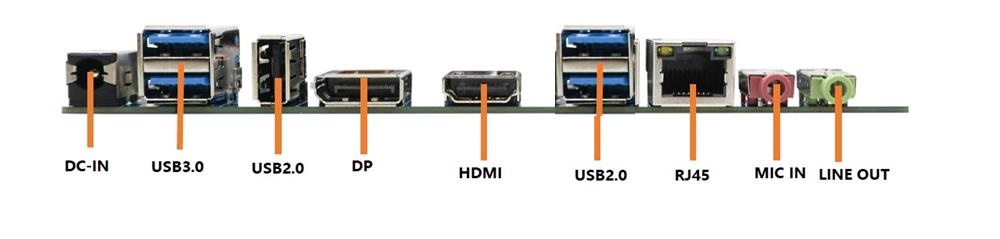

Back I/O

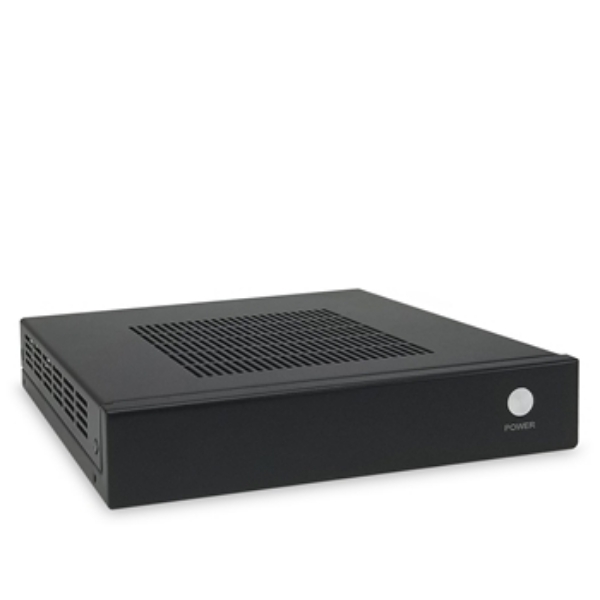

Chassis

138D Small Form Factor with aluminum panel, Convertible to 1U Rackmount
• Dimensions: 7"(W) x 7.2"(D) x 1.38"(H), Weight: 3 lb(Net) 10 lb(gross with packaging)
• Cooling: Slim CPU Fan with Heatsink
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets
• Option: Slim 10a Series 1.4" Slim
• Option: 300B Aluminum 2.1" H 300A w/Slim DVD Bay 300R with RISER Slot

Power Supply
• Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10, IoT, Linux
Application
• Set Top Box, Digital Signage, POS/Kiosk, etc.
• Embedded-Longevity
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
