Think Big. Go Small. Eco-Smart Computing

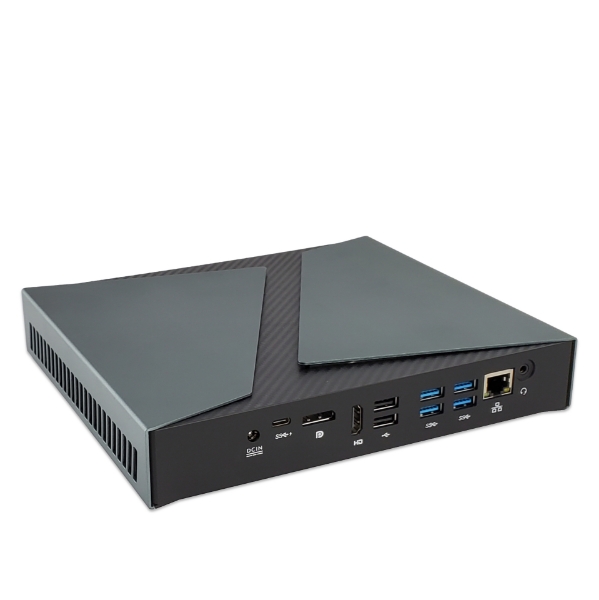

i2312B

Intel® Coffee Lake, NVIDIA® GTX1650+UHD Graphics HDMI + DP, 2 M.2+2 DDR4, LAN+6 USB+Type-C
Featured Highlights
  Intel® Core™ i9/i7/i5 Processor
  9th Gen. Coffee Lake Platform (SOC)
  Intel® UHD  Graphics + NVIDIA GTX-1650 4G
  2 DDR4 SO-DIMM for up to 64GB Memory
  M.2 SSD, SATA-6Gb/s HDD
  Gigabit LAN+WiFi 5/BT 4.0
  4 USB 3.0, 2 USB 2.0
  HD Audio Sound
  DC19V Power Adapter (UL/CE/FCC Certified)
  OS Support: Windows 11/10/8, Linux
  Applications: Set Top Box, AI, Industrial Control, GPU Computing, Video Encoding, Digital Signage, POS/Kiosk, AV Player, IP/PBX, etc.




SKU: i2312B
Product specifications
Processor

• Intel® Core™ i7-9750H 6C/12T 2.60/4.50GHz 12M 45W
• Intel® Core™ i9-9880H 8C/16T 2.30/4.80GHz 16M 45W
• Intel® Core™ i5-9300H, 4C/8T 2.4/4.10GHz 8M 45W

Chipset

• Intel® 9th Gen. Coffee Lake Platform (SOC)

Graphics

• Intel® UHD 630 Graphics
• Nvidia® GTX1650 4G Graphics
• Support 2 Graphics ports
• 1 x HDMI® 1.4, 4K 24Hz Graphics port
• 1 x DP 1.2, 4K 60Hz Graphics ports

Memory

• 2 x DDR4 SO-DIMM
• 3200MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Network

• 1 x Intel® Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• Supports up to WiFi-5/BT4.0
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Storage

• 1 x SATA-6Gb/s 2.5" HDD
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Audio

• Realtek® ALC888 8-channel (7.1)
• 1 x 3.5mm Analog Stereo Audio jack

Back Panel I/O

• 4 x USB 3.0 ports
• 2 x USB 2.0 ports
• 1 x HDMI® 1.4 port
• 1 x DP 1.2 port
• 1 x Type-C port
• 1 x LAN ports
• 1 x Audio Jack
• 1 x DC-In 2.5mm

System BIOS

• AMI® UEFI BIOS

Chassis

• Dimensions: 8.7"(W) x 7.7"(D) x 1.6"(H), Weight: 3 lb (Net) 10 lb (gross with packaging)
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• Cooling: Slim CPU Fan with Heatsink
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available

Power Supply

• Power: DC19V 7.89A Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional 90V-240V 220W or higher wattage AC Power Supply
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11/10/8, Linux

Application

• Set Top Box, AI, Industrial Control, GPU Computing, Video Encoding, Digital Signage, POS/Kiosk, AV Player, IP/PBX, etc.

Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
