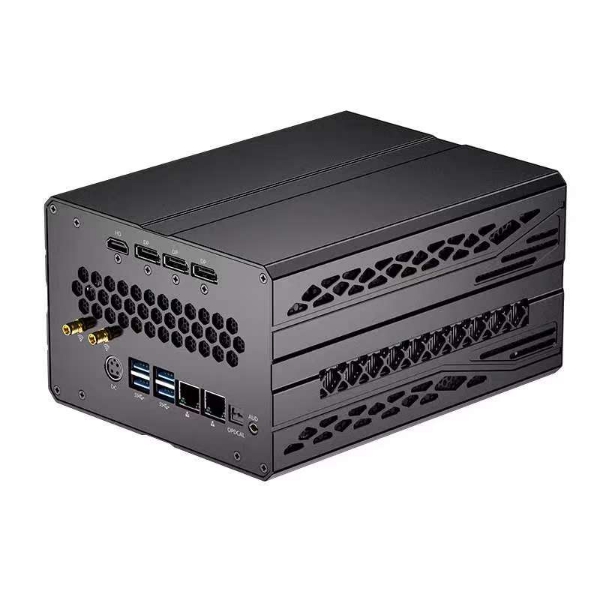

G5060Ti-B760L2

Intel® 14th Gen. Core i9 , NVIDIA® RTX™ 5060 Graphics, 1 x HDMI + 3 DP, M.2 PCI 4.0 slots + 4 x USB 3.2 + 4 x USB 2.0

Featured Highlights
	Intel® 14th Gen. Core™ i9 Series Processor
	Intel® Raptor Lake Chipset
	NVIDIA® GeForce RTX™ 5060Ti, 1 x HDMI® 2.1 + 3 DP 2.1
	2 x DDR5 SO-DIMM for up to 96 GB Memory
	M.2 NVMe/SSD, 2 SATA 3.0
	2.5 Gigabit LAN, M.2 WiFi/BT
	4 x USB 3.2, 4 x USB 2.0, OPDCAL,
	HD Audio Sound
	DC19V Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11, Linux
	Applications: GPU Computing, AI Edge, Video processing, High Performance PC, Digital Signage, Gaming PC, etc.

SKU: G5060Ti-B760L2

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i9-14900F 4.30/5.80GHz 8P+16E-Cores 32Threads 36+32M Cache 65/219W • Intel® Core™ i7-14700F 4.20/5.40GHz 8P+12E-Cores 28Threads 33+28M Cache 65/219W • Intel® Core™ i5-14400F 3.50/4.70GHz 6P+4E-Cores 16Threads 20+9.5M Cache 65/148W Chipset • Intel® Raptor Lake Chipset
Graphics • NVIDIA® GeForce RTX™ 5060Ti-16G (180W) / 5060-8G (145W) PCIe 5.0 x16 GPU • Multi-display for up to 4 monitors • 1 x HDMI® 2.1v port, supporting a maximum resolution of 8K @60Hz • 3 x DP 2.1b signal supporting a maximum resolution of 8K @60Hz Memory • 2 x DDR5 SO-DIMM • 5600MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 96GB
Network • 2 x Gigabit (10/100/1000 Mb/s) Realtek® RTL8111H LAN • 1 x M.2 2230 for WiFi-6/7+BT Module • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (PCIe 4.0 x4 for NVMe/SATA SSD) • 1 x PCIe 5.0 x16 Slot for Nvidia® GPU Module
Storage • 1 x M.2 2280 (for PCIe x4 NVMe/SSD) Audio • Realtek® 892 HD Audio • 1 x 3.5mm Analog Stereo Audio jack • 1 x Optical S/PDIF Digital Audio port
Back Panel I/O • 4 x USB 3.2 ports • 3 x DP2.1 port • 1 x HDMI® 2.1 port • 2 x RJ45 LAN ports • 1 x Optical S/PDIF • 1 x 3.5mm Audio jack • 1 x DC-In 4-pin Power Connector System BIOS • AMI® UEFI 128MBit BIOS • Watchdog supported
Chassis • Dimensions: 6.6"(W) x 8.67"(D) x 4.52"(H), Weight: 3.5 lb. (Net) 10 lb. (gross with packaging) • Cooling: Slim CPU and GPU Fans with Heatsinks • Color: Grey as default color, option: Black, Silver, Gold. Other custom color available Power Supply • Power: DC19V 300W Power Adapter 4-pin plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11, Linux Applications • GPU Computing, AI Edge, Video processing, High Performance PC, Digital Signage, Gaming PC, etc.
Environment • Operating Temperature: 0 to +50 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 5% to 95% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Core™ i9-14900F 4.30/5.80GHz 8P+16E-Cores 32Threads 36+32M Cache 65/219W • Intel® Core™ i7-14700F 4.20/5.40GHz 8P+12E-Cores 28Threads 33+28M Cache 65/219W • Intel® Core™ i5-14400F 3.50/4.70GHz 6P+4E-Cores 16Threads 20+9.5M Cache 65/148W Chipset • Intel® Raptor Lake Chipset
Graphics • NVIDIA® GeForce RTX™ 5060Ti-16G (180W) / 5060-8G (145W) PCIe 5.0 x16 GPU • Multi-display for up to 4 monitors • 1 x HDMI® 2.1v port, supporting a maximum resolution of 8K @60Hz • 3 x DP 2.1b signal supporting a maximum resolution of 8K @60Hz Memory • 2 x DDR5 SO-DIMM • 5600MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 96GB
Network • 2 x Gigabit (10/100/1000 Mb/s) Realtek® RTL8111H LAN • 1 x M.2 2230 for WiFi-6/7+BT Module • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (PCIe 4.0 x4 for NVMe/SATA SSD) • 1 x PCIe 5.0 x16 Slot for Nvidia® GPU Module
Storage • 1 x M.2 2280 (for PCIe x4 NVMe/SSD) Audio • Realtek® 892 HD Audio • 1 x 3.5mm Analog Stereo Audio jack • 1 x Optical S/PDIF Digital Audio port
Back Panel I/O • 4 x USB 3.2 ports • 3 x DP2.1 port • 1 x HDMI® 2.1 port • 2 x RJ45 LAN ports • 1 x Optical S/PDIF • 1 x 3.5mm Audio jack • 1 x DC-In 4-pin Power Connector System BIOS • AMI® UEFI 128MBit BIOS • Watchdog supported
Chassis • Dimensions: 6.6"(W) x 8.67"(D) x 4.52"(H), Weight: 3.5 lb. (Net) 10 lb. (gross with packaging) • Cooling: Slim CPU and GPU Fans with Heatsinks • Color: Grey as default color, option: Black, Silver, Gold. Other custom color available Power Supply • Power: DC19V 300W Power Adapter 4-pin plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11, Linux Applications • GPU Computing, AI Edge, Video processing, High Performance PC, Digital Signage, Gaming PC, etc.
Environment • Operating Temperature: 0 to +50 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 5% to 95% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
