Think Big. Go Small. Eco-Smart Computing

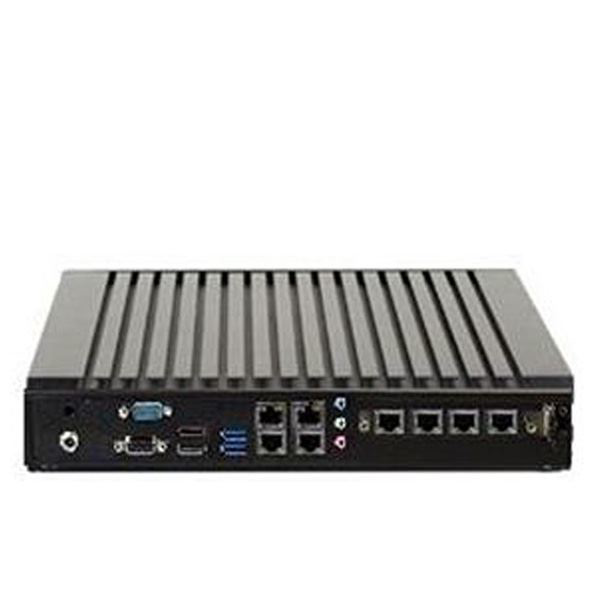

B8500L4F/B8500L8

Haswell Core™ i7/i5/i3, HDMI+DP+VGA, 2 SATA+mSATA, COM+PCIe x8
Featured Highlights
Intel® Core™ i7/i5/i3 processor 1150pin
  4th Generation Haswell Platform
Intel® B85 Chipset, Small Business Advantage, 8 PCIe 2.0
Intel® HD 4600/5000 Series Graphics, 4K Display, 1 HDMI+1 DP+1 VGA
4 x DDR3 DIMM for up to 32GB Memory
PCIe x8 ,2 x MiniPCIe slots
4 Intel® Gigabit LAN
2 USB 3.0, 4 USB 2.0
2 x SATA, 1 x mSATA
5.1 ALC662 Audio Sound
Power Supply: DC12V 10A input
OS Support: Windows XP, Windows 7 32-bit, Windows 7 64-bit, Windows 8x, Windows 10 32-bit, Windows 10 64-bit, Linux
Applications: Network Appliance, etc.

SKU: B8500L4F/B8500L8
Product specifications
Processor
• Intel® 4th Generation Haswell processor
• LGA1150 socket series with 35W to 84W TDP
Chipset
• Intel® B85 Express
• Supports Intel® Small Business Advantage
• 8 x PCIe 2.0 Lanes
Graphics
• Intel® HD 4600/5000 Series Graphics, 4K Display
• Support 3 Graphics ports
• 1 x HDMI® Port
• 1 x DP 4K Graphics Port
• 1 x VGA Port
Memory
• 4 x DDR3 DIMM
• 1600/1333/1066MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 32GB
Network
• 4 x Intel® i350 Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Optional WiFi via miniPCIe module
• Option: additional Gigabit or 10Gbit LAN can be added via PCIe slot or by USB LAN module
Expansion Slot
• 1 x PCI Express 3.0 x8 slot
• 2 x MiniPCIe sockets (supports WiFi+BT or mSATA)
Storage
• 2 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
Audio
• Realtek® ALC662 6-channel (5.1)
Back Panel I/O
• 2 x USB 3.0 Ports
• 1 x HDMI® port
• 1 x DP port
• 1 x VGA port
• 4 x LAN ports
Internal I/O
• 4 x USB 2.0 Headers
• 1 x Serial COM Header
Function
• 1 x TPM Header
Chassis
• 175C Small Form Factor with aluminum panel, Convertible to 1U Rackmount
• Dimensions: 1.75(H) x 8.1(W) x 8(L) inch, Weight: 3 lb(Net) 10 lb(gross with packaging)
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• Cooling: Slim CPU Fan with Heatsink, Fanless option available with 300F Chassis
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets
• 175C Case 1.75" H 175F Fanless 1.75" H
• Optional: 1750M Form Factor
Power Supply
• Power: DC12V 10A Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows XP, Windows 7 32-bit, Windows 7 64-bit, Windows 8x, Windows 10 32-bit, Windows 10 64-bit, Linux
Application
• Network Appliance, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
