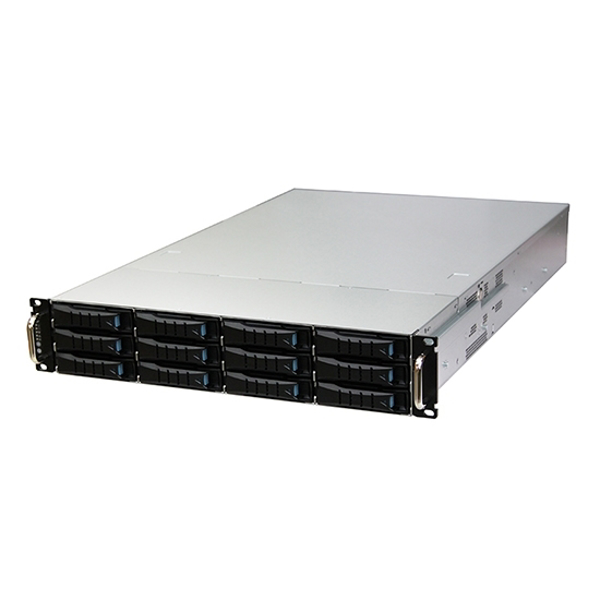

2012S Rackmount Series

2U 12-bay SAS/SATA storage server chassis
Featured Highlights
Dimensions: 3.5" (H) x 16.93 " (W) x 26.8" (D)
Tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane
3 x easy swap middle fans for superior cooling
12Gb/s SAS expander chip on backplane
Hot swap system fans designed to minimize rotational vibration while providing superior cooling
3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
Expansion Slots:7 low profile
Power Supply:800W 1+1 redundant PSU PMBus 1.2 80+ Platinum
Front Panel:Power on/off, System reset, 1 x USB 3.0 port, UID S/W
System Board:12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Drive Bays:External: 12 x 3.5” hot swap,External (Rear): 2 x 2.5” (7mm) hot swap
Backplane:
• 1 x 12-port 12Gb SAS backplane with 28-PHY expander and 3 SFF-8643 connectors
• 1 x 12-port 12Gb passive backplane with option 4 x NVMe support
• 1 x 12-port 12Gb passive backplane
SKU: 2012S
*
*
*
