 ARM-based Product

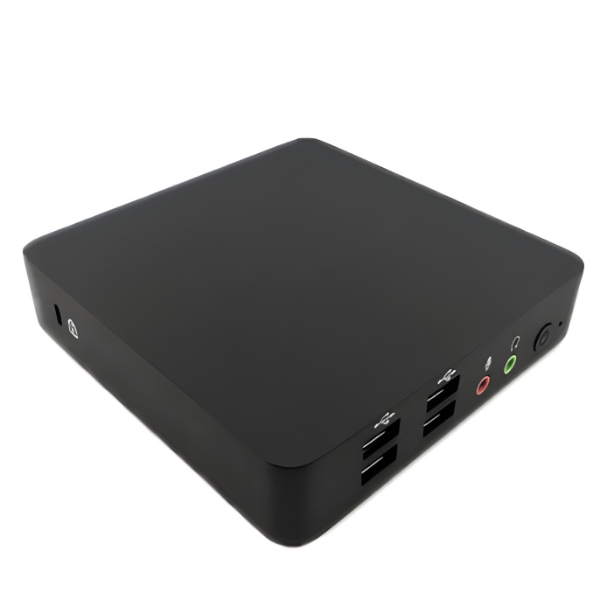

X55V

Nano ARM® Android, LAN+WiFi/BT, 6 USB+HDMI 2.0+VGA, Industrial Edge
Featured Highlights
  ARM® Cortex®-A55 Processor
  RK3568 Chipset
  Mali™-G52-2EE GPU, HDMI 2.0 + VGA
  1GB/2GB/4GB Onboard DDR4 Memory
  8GB/16GB/32GB eMMC,
  Gigabit LAN, M.2-WiFi6/BT
  4 USB 2.0, 2 USB 3.0 (OTG)
  HD Audio Sound
  Power Supply: DC12V 3A Power Adapter (UL/CE/FCC Certified)
  OS Support: Android 11, Linux
  Applications: Set Top Box, Digital Signage, IPTV, Entertainment PC, etc.


SKU: X55V
Manufacturer part number: - 4K ARM Android IPTV Entertainment PC - Powered by PoE
Product specifications
Processor

• ARM® Cortex®-A55 4Core up to 2.80GHz

Chipset

• Rockchip RK3568 (SOC)

Graphics

• ARM® Mali™-G52 EE 4Core Graphics Processor
• 1 x HDMI 2.0, 4K 60Hz Graphics port
• 1 x VGA port

Memory

• 1GB/2GB/4GB DDR4 (built-in, non-changeable)

Network

• 1 x Gigabit (10/100/1000 Mb/s) LAN
• 802.11ac/n/g/ax Dual-Band (2.4/5.0GHz) WiFi
• Bluetooth 4.0
• 1 x M.2 2230 (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)

Storage

• 8GB/16GB/32GB eMMC Internal Flash Storage

Audio

• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 2 x USB 2.0 ports
• 1 x LAN port
• 1 x HDMI 2.0 port
• 1 x VGA port
• 1 x DC-In 2.5mm Power Connector

Other I/O

• 2 x USB 3.0 ports (Front) (Lower USB 3.0 port supports OTG)
• 2 x USB 2.0 ports (Front)
• 2 x Audio jacks (Front)

System BIOS

• Watchdog supported

Chassis

• Nano Fanless Enclosure Series
• Dimensions: 4.92"(W) x 4.92"(D) x 1.18"(H), Weight: 1.5 lb. (Net) 3 lb. (gross with packaging)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA/ wall mount brackets

Power Supply

• Power: DC12V 3A Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Powered by PoE supported
• Energy Star Compliance, Idle mode at <1W

OS Support

• Android 11, Linux

Application

• Set Top Box, Digital Signage, IPTV, Entertainment PC, etc.

Environment

• Operating Temperature: -5 to +45 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 10% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
