Processor
• 10th&11th Intel® Xeon® W/i9/i7/i5/i3/G LGA1200 Series Processor,Max TDP at 125W
Chipset
• Intel® W580 Chipset
|
Memory
• 4 x DDR4 DIMM, up to 128GB • 3200/2666/2400/2133MHz RDIMM, LRDIMM (Quad Channel I/O)
Graphics
• Intel® HD Graphics (support by CPU) • DP+DP+HDMI+DV|-D ( by pin header), Support Triple Display • Supports NVIDIA® 3-Way SLI® Technology and AMD 3-Way CrossFireX™ Technology
|
Audio
• Support MlC-In, Speaker-Out, Line-In 3-in-1 audio jack • Audio Shielding • Supports Surge Protection
Storage
• 4 x SATA 3.0 slot,support SATA RAID 0/1/5/10(When the M.2 port is used, SATA1 no signal out) • 1 x M.2 2242/2280 Key-M slot, this slot support SATA or NVMe PCle Gen3 x4 (only Gen11 CPU support)
|
LAN
• 1 x Intel® I219-LM Gigabit (10/100/1000 Mb/s) LAN • 1 x Intel® I225LM 2.5 Gigabit (10/100/1000/2500 Mb/s) LAN • Supports Wake-On-LAN
Internal I/O
• 1 x 16bit GPIO • 2 x USB 2.0 headers, supports additional 4 x USB 2.0 ports • 2 x COM ports (COM1&2 to support RS232/422/485,COM3-6 to support RS232 • 1 x eSPl port (2 x 6Pin wafer up to 4x RS232 or RS422/RS485 COM port)
|

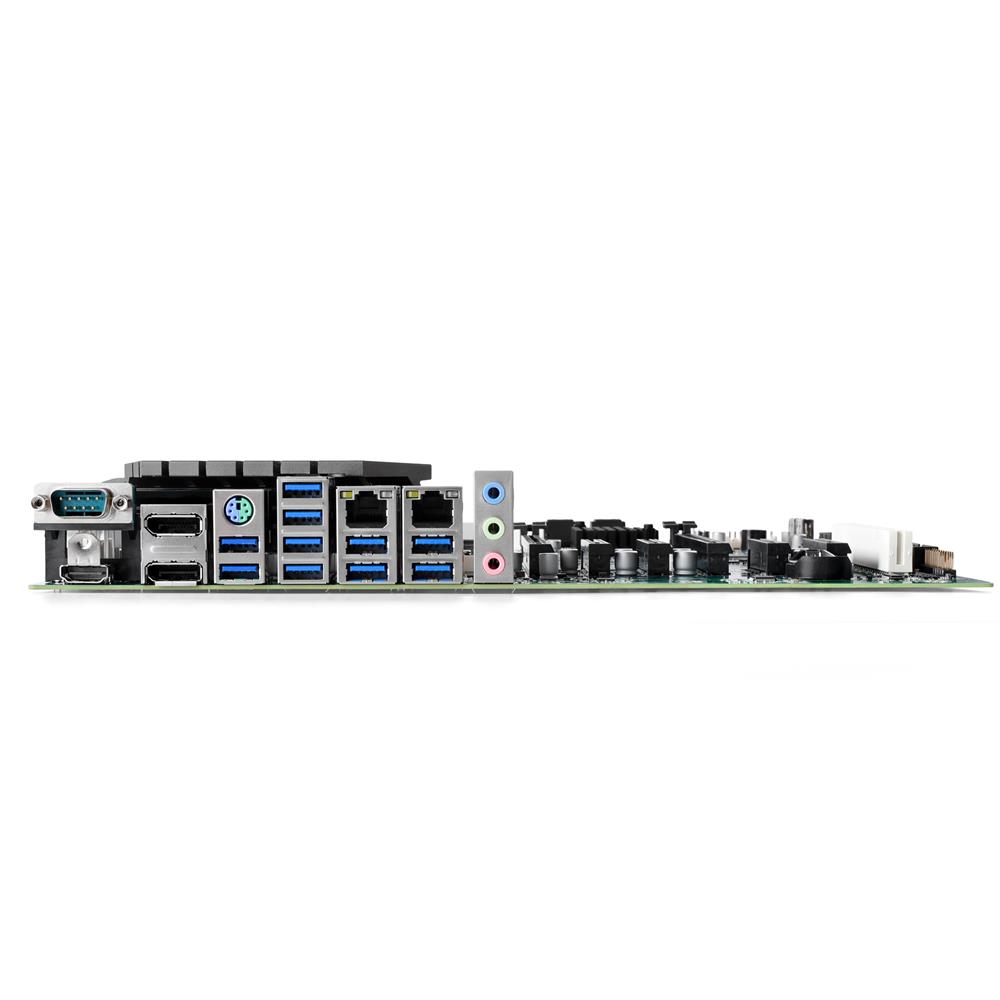

Back Panel I/O
• 1 x VGA • 2 x DP • 1 x HDMI • 2 x LAN ports • 2 x USB 3.2 Gen 2 ports • 8 x USB 3.2 Gen 1 ports • 1 x PS/2 KB/MS • 2 x USB 2.0 vertical ports • MlC-In, Speaker-Out, Line-In 3-in-1 audio jack
Slots
• 2 x PCI-e x1ó slots for 1 x PCle x16 or 2 x PCle x8 • 4 x PCl-e x4 slots (3 * x4,1 * x1) • 1 x PCI (32bit) • 1 x M.2 2242/2280 Key-M slot, Support SATA or NVMe PCle Gen3 x4 (only Gen11 CPU support) • 1 x LPT port
|
Function
• TPM SLB9670 (SLB9672), to support TPM2.0 (by default)
BIOS
• AMI® UEFI BIOS 128Mb Flash ROM • SM BIOS 3.2 • ACPI 6.0 Multi-language BIOS
|
OS Support
• Windows 10 64-bit
|

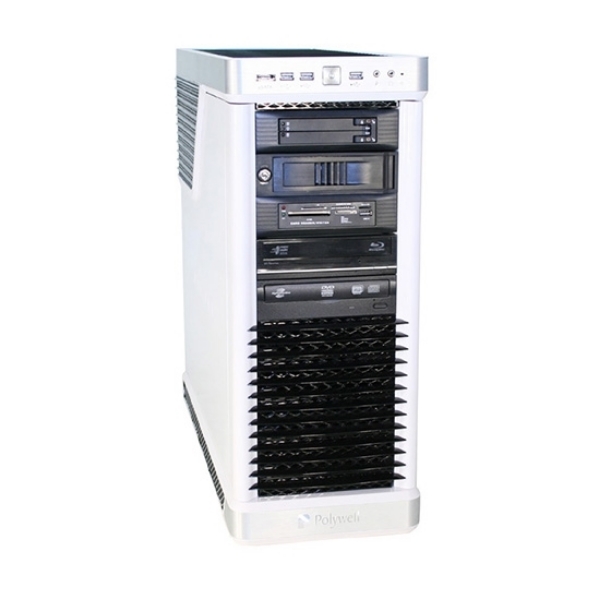

Chassis
• TS900W 9-Bay ATX Tower • 9 external 5.25" with Easy Front Removable Tray • 210 (W) x 510 (H) x 549 (D) mm, 8.26 (W) x 20 (H) x 21.6 (D) inch
Power Supply
• 750W 80 Plus high efficiency active PFC (90V to 240V power in auto-switch)
• Quiet 140mm cooling fan, FCC, CE, CSA, UR Certified
• Option: 550W, 650W, 850W, 900W, 1000W , 1250W or 1500W available for custom configuration.
|
Applications
• AI-IoT, Network Appliance, Surveillance, AV Player, IP/PBX, IoT/Edge System, High-end Gaming, etc.
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
|
