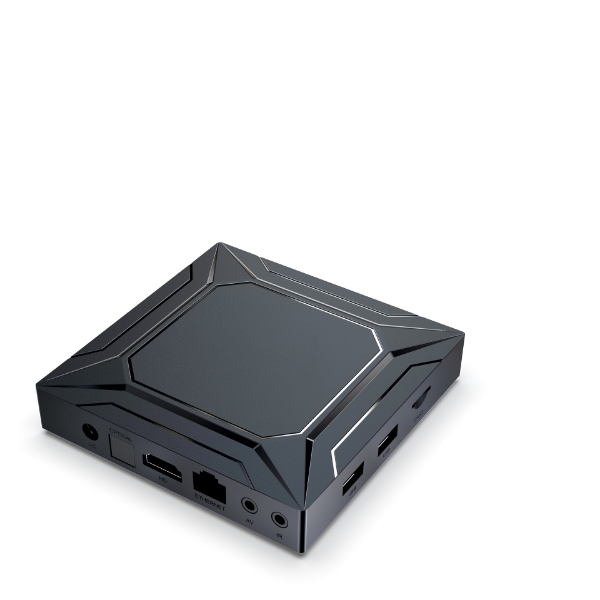

Picture of U25X

U25X

Androind 14 OS , Support 8k Video Codes , Decode AV1 MP-10@L5.1 4K*2K@60fps ,Dual band WIFI ,BT5.1 ,Inline AI-SR

Featured Highlights
	ARM® Cortex® A55 Processor
	Amlogic S905X5M
	ARM® G310 V2, 4K*2K UHD Output, HDMI2.1a
	4GB LPDDR4 Memory
	64GB eMMC 5.0 Storage
	Gigabit LAN, 11ac WiFi+BT
	2 USB 2.0
	DC12V 2A 30W or higher wattage Power Adapter(UL/CE/FCC Certified)
	OS Support: Android 14
	Applications: AI-IoT, Digital Signage, IPTV, etc.

SKU: U25X

Specifications
Request for Info

Product specifications

Processor • ARM® Quad Core Cortex®-A55 Chipset • Amlogic S905X5M
Graphics • ARM® G310 V2 • OpenGL ES3.2，OpenCL 2.0，Vulkan 1.2 support • 1 x HDMI® 2.1 4K 60Hz Graphics port Memory • 4GB(2/4GB Optional) LPDDR4 (built-in, non-changeable)
Network • 1 x RJ45 Gigabit (10/100/1000 Mb/s) LAN • 802.11ac/n Dual-Band Wi-Fi (2.4GHz / 5.0GHz) • Bluetooth 5.1 • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Storage • 64GB(16/32/64/128GB Optional) eMMC Flash internal Storage • 1 x MicroSD reader
Audio • Support for S/PDIF Out • 1 x 3.5mm Analog Stereo Audio jack Back Panel I/O • 1 x HDMI® 2.1 port • 1 x S/PDIF port • 1 x LAN port • 1 x 3.5mm Audio jack • DC-In 2.5mm Power Connector
Other I/O • 2 x USB USB 2.0 • 1 x MicroSD Reader Chassis • Fanless Nano Aluminum Enclosure • Dimensions: 4.17(W) x 4.17(L) x 0.8(H) inch, Weight: 0.75 lb (net) • Color: Black as default color, custom colors available with special order • Custom logo is available for OEM order (MOQ is required) • Supports VESA/wall mount brackets
Power Supply • Power: DC12V 2A 30W or higher wattage Power Adapter Type-C plug (UL/CE/FCC Certified) OS Support • Android 14
Applications • Digital Signage, IPTV, Traffic Controller, etc. Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
