 ARM-based Product

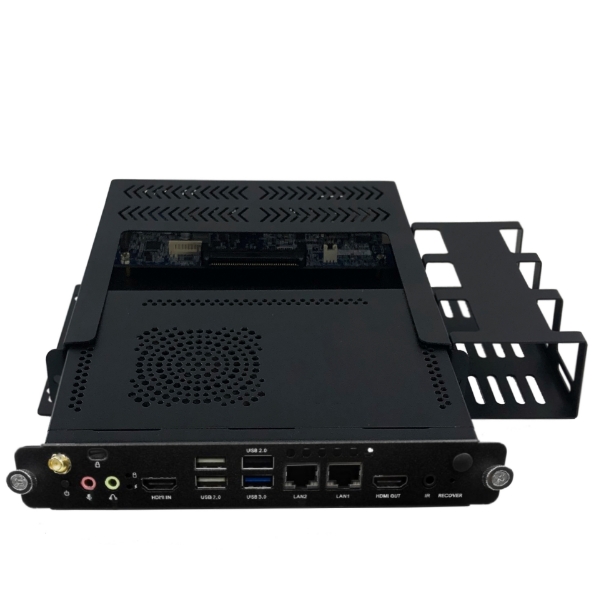

SwapPC-X39

Swappable PC, ARM® Cortex® - A53 4Core CPU, 4K Graphics 3HDMI + HDMI-In, Up to 3LAN + 8USB + TF
Featured Highlights
ARM® Cortex®-A53 Quad-Core Processor
Rockchip 3399 (SOC)
Mali T764 Graphics, 4K UHD, 3 HDMI
2GB/4GB LPDDR4 Memory
2/3 Gigabit LAN + Onboard WiFi/BT
8GB-64GB eMMC Storage
5 USB 2.0, 3 USB 3.0
5.1 ALC662 Audio Sound
Power Supply: DC12-19V Wide Range
OS Support: Android 7.1, Android 10.0
Applications: Digital Signage, Set Top Box, Airport, White-board for Education, Conference Room, POS/Kiosk, etc.

SKU: SwapPC-X39
Product specifications
Processor

• ARM® Cortex®-A53 Quad-Core up to 1.4GHz
• ARM® Cortex®-A72 Dual-Core up to 1.8GHz

Chipset

• Rockchip 3399 (SOC)

Graphics

• Quad-Core/Dual-Core Mali T764 Graphics, 4K UHD H265/H264/VP9
• 3 x HDMI® ports (Front HDMI® FHD only/ No Sound)
• 1 x HDMI® -In port (1080p, option)

Memory

• 4GB LPDDR4 (Option: 2GB)

Network

• 2 x Gigabit (10/100/1000 Mb/s) LAN
• Option: Additional 1 x Gigabit (10/100/1000 Mb/s) LAN
• Onboard Wi-Fi/BT (Optional: 802.11ac/n Dual-Band WiFi (2.4GHz / 5.0GHz))
• 1 x SIM slot
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Storage

•  8GB-64GB eMMC Flash Internal Storage

Audio

• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 2 x USB 3.0 ports
• 2 x USB 2.0 ports
• 2 x HDMI® ports
• 1 x LAN port
• 1 x DC-In 2.5mm Power Connector

Other I/O

• 1 x JAE-80pin OPS Connector
• 1 x SIM slot
• 1 x TF card

Front Panel

• 1 x USB 3.0 port
• 2 x USB 2.0 ports
• 1 x HDMI® port (FHD only/No Sound)
• 1 x HDMI® -In port
• 1/2 x LAN port(s)
• 2 x 3.5mm Audio jacks

System BIOS

• Watchdog supported

Chassis

• Swappable PC Docking Station Chassis
• Dimensions: 7.95"(W) x 7.40"(D) x 1.50"(H)
• System Weight: 3.0 lb.

Power Supply

• Power: DC12V or DC19V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Powered by PoE supported
• Energy Star Compliance, Idle mode at <1W

OS Support

• Android 7.1, Android 10.0, 18.04

Application

• Digital Signage, Set Top Box, Airport, White-board for Education, Conference Room, POS/Kiosk, etc.

Environment

• Operating Temperature: -5 to +45 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 10% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance

*
*
*
