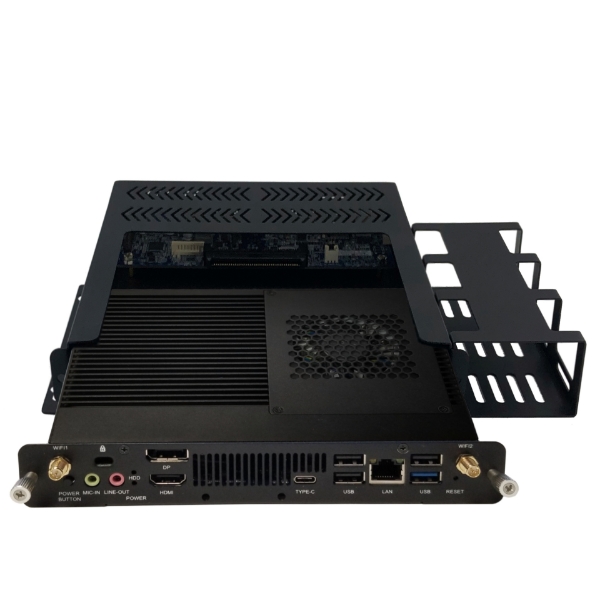

SwapPC-H510A

Swappable PC 11th Gen. Rocket Lake, UHD 750 Graphics 3 HDMI + DP, 2 M.2 slots, 8 USB + Type-C
Featured Highlights
11th Gen. Intel® Core™ i7/i5/i3/Pentium/Celeron-u Processor
Intel® Rocket Lake Platform (SOC)
Intel® UHD 750 Graphics, 3 HDMI + DP
2 DDR4 SO-DIMM for up to 64GB Memory
2 Gigabit LAN, M.2 WiFi/BT
M.2 SSD/NVMe
3 USB 3.0, 5 USB 2.0, Type-C
5.1 ALC662 Audio Sound
Power Supply: DC12-19V Wide Range
OS Support: Windows 10/11, IoT, Linux
Applications: Digital Signage, Kiosk, POS, IoT, Appliance, AI edge, Medical equipment, Industrial PC, etc.

SKU: SwapPC-H510A
Product specifications
Processor

• Intel® 11th/10th Generation Comet Lake processor
• LGA1200 socket series with 35W, 65W TDP
• Intel® Core™ i9-11900T, i9-11900 8C/16T 16M Cache
• Intel® Core™ i7-11700T, i7-11700 8C/16T 16M Cache
• Intel® Core™ i5-11400T, i5-11400, i5-11500, i5-11600 6C/12T 12M Cache
• Intel® Core™ i3-10105T, i3-10105 4C/8T 6M Cache
• Intel® Pentium® Gold G6405T, G6405, G6605 2C/4T 4M, Celeron® G5905T, G5905 2C/2T 4M

Chipset

• Intel® H510 Express Chipset

Graphics

• Intel® UHD 750 Graphics, 4K/5K Resolution, HDR 10Bit color
• 3 x HDMI® ports
• 1 x DP 1.4, 8K 60Hz Graphics port

Memory

• 2 x DDR4 SO-DIMM
• 3200MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Network

• 2 x Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Storage

• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Audio

• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 2 x USB 3.0 ports
• 2 x USB 2.0 ports
• 2 x HDMI® ports
• 1 x LAN port
• 1 x DC-In 2.5mm Power Connector

Other I/O

• 1 x JAE-80pin OPS Connector

Front Panel

• 1 x USB 3.0 port
• 1 x Type-C USB port (for Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions)
• 3 x USB 2.0 ports
• 1 x HDMI® port
• 1 x DP 1.2
• 1 x LAN port
• 2 x 3.5mm Audio Out/Mic In jacks

Function

• 1 x TPM header

System BIOS

• Watchdog supported

Chassis

• Swappable PC Docking Station Chassis
• Dimensions: 7.95"(W) x 7.40"(D) x 1.50"(H)
• System Weight: 3.0 lb.

Power Supply

• Power: DC12V or DC19V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 10/11, IoT, Linux

Application

• Digital Signage, Kiosk, POS, IoT, Appliance, AI edge, Medical equipment, Industrial PC, etc.

Environment

• Operating Temperature: 0 to +50 C
• Non operating temperature: -20 to +80 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance

*
*
*
