Storage Server

SUMA 2024A (High-end)

2U SAS/SATA,IPMI

Featured Highlights

Dual socket R3 (LGA 2011) supports
Intel® Xeon® processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s
Up to 3TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 24x DIMM slots
2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
SIOM for flexible networking options

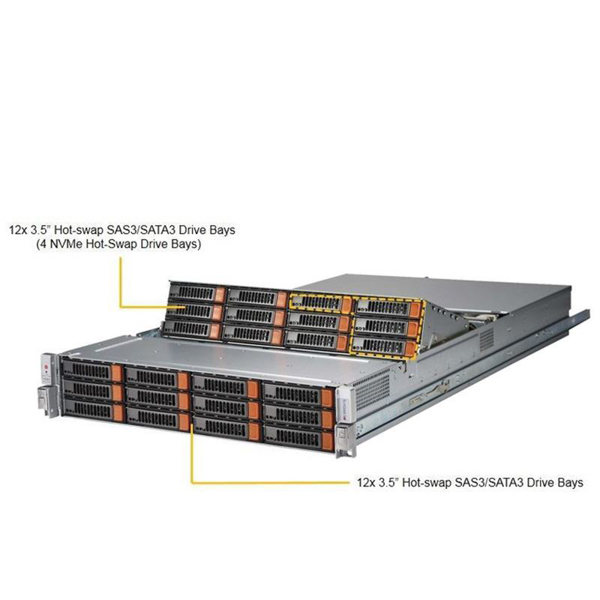

24x 3.5" Hot-swap SAS3/SATA3 drive bays
Onboard LSI 3108 SAS3 Hardware RAID RAID 0, 1, 5, 6, 10, 50, 60
Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
5x 8cm hot-swap redundant PWM fans
 1600W Redundant Power Supplies Titanium Level (96%)

 Suma 2024A is an intelligent network storage solution for the small office or medium office, and will cost less than comparable Windows file servers.

SKU: SUMA 2024A

Product specifications
Processor
• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP)
• Dual Socket R3 (LGA 2011)
Memory

• Up to 3TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
• 24x 288-pin DDR4 DIMM slots

OS and Storage Manager
• Linux OS and NAS/iSCSI WEB based Manager
• Optional: Solaris, Windows Server, MS Storage Server, VMware, FreeBSD, Other Open Soruce Linux.
File System

• XFS, EXT3 standard
• Optional: ZFS, NTFS, or any file system supported by the x86 platform

Network I/O

• LAN ports via SIOM Add-On-Card

Network Service

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Management Interface

• Web GUI
• E-mail notification

Expansion Slot

• Up to 3 x PCIe 3.0 slots

Remote Boot Function

• Requires NIC with PXE support on client

File Sharing

• Authorizes users to access shared folder by passwords (by default there is one "Public" shared folder)

Access Control

• Allow users to access shared files for "Read Only" or "Read/Write"

Storage/RAID

• LSI 3108 SAS3 onboard
• Hardware RAID 0, 1, 5, 6, 10, 50, 60
• SATA3 (6Gbps); RAID 0, 1, 5, 10

I/O Ports

• 3 x USB 3.0 ports (2 rear + 1 Type A)
• VGA graphics

Client Support

• Supports MS Windows 2000, Windows XP and Windows 2003, Linux and Mac

Remote Controls

• Power on/off, system reset + USB
• IPMI, KVM over IP, Remote Power On/Off is supported

Indicators

• Power, Status, LAN and HDD LEDs

Cooling

• 5 x 8cm hot-swap redundant PWM cooling fans

Power Supply

• 1600W 1+1 redundant 80 Plus Titanium Level power supply UR/FCC/CE Certified

Operating Temperature

• From 0 ºC to 40 ºC (32ºF to 104 ºF)

Non-Operating Temperature

• From -40ºC to 70ºC (-40ºF to 158ºF)

Operating Humidity

• From 10% to 90% relative humidity

EMI Safety

• CE/FCC

Dimensions

• 2U Rackmount
• 17.2"(437mm) x 3.5" (89mm)
• Depth:34" (863.6mm), With Cable Management Arm Installed:41" (1041.4mm)

Warranty

• SAS and SATA-E Hard Driver carry 5 year,SATA-N carries 3 year
• Base system:3 year standard parts and depot labor;lifetime toll free phone support.
• Optional:3 or 5-year(total years) extended warranty with advanced parts replacement service.
• Optional:7+year extended warranty service available.
• On-site service is available with additional cost.

*
*
*
