Storage Server

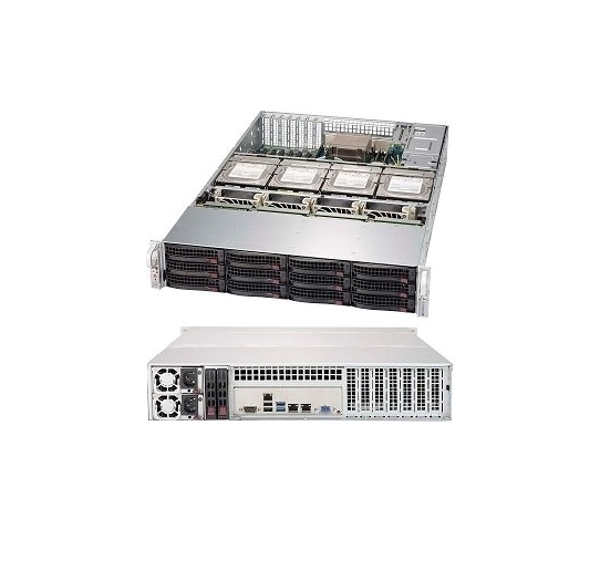

NetDisk 2016B: 2U 16HDD

2U 16 x 3.5" top pull hot swap HD, 2xGigaLAN, Dual Intel® Xeon™ processor, LSI SAS/SATA RAID
Featured Highlights
•  Dual Socket R3 (LGA 2011) Support Intel® Xeon® Processor E5-2600 v3 family; QPI up to 9.6GT/s
Intel® C612 chipset
Up to 1TB ECC DDR4 2133MHz; 16x DIMM slots
1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8 slots
Intel® i350 Dual Port GbE LAN
10x SATA3 (12Gbps) ports w/ Intel C612 controller; RAID 0, 1, 5, 10
8x SAS3 (12Gbps) ports w/ LSI 3108 controller (2GB cache); RAID 0, 1, 5, 6, 10, 50, 60
Integrated IPMI 2.0 and KVM with Dedicated LAN
5x USB 3.0 and 4x USB 2.0 ports



SKU: Netdisk 2016B

Product specifications
Processor
• Dual Intel® Xeon™ 6C/6T E5-2609V3 1.9G 15M 6.4GT Processor
Memory
• 16GB ECC DDR3 RDIMM system memory
• Optional: up to 1TB LRDIMM, 1TB RDIMM system memory
OS and Storage Manager
• Linux OS and NAS/iSCSI WEB based Manager
• Optional: Solaris, Windows Server, MS Storage Server, VMware, FreeBSD, Other Open Soruce Linux.
File System
• XFS, EXT3 standard
• Optional: ZFS, NTFS, or any file system supported by the x86 platform
Network I/O
• 2 Gigabit LAN ports
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Service
• DHCP client/server (default is DHCP client/static)
• Network Protocol: CIFS/SMB, NFS, FTP
• iSCSI / NAS / SAN (Can be mixed)
Management Interface
• Web GUI
• E-mail notification
• Local Host Access via VGA and Keyboard
Expansion Slot
• 1 x PCIe 3.0 x16 slot
• 6 x PCIe 3.0 x8
Remote Boot Function
• Requires NIC with PXE support on client
File Sharing
• Authorizes users to access shared folder using passwords (by default, there is one "Public" shared folder)
Access Control
• Allows users to access shared files for "Read Only" or "Read/Write"
Storage/RAID
• 16 x 3.5" hot-swap drive bays for SAS/SATA-6G/s or 12G/s
• RAID 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60 with hot spare support (mixed configurations available)
I/O
• 5x USB 3.0 and 4x USB 2.0 connectors
• VGA graphics
• 2x Fast UART 16550 serial
• 2x COM port
• 1x TPM 1.2 20-pin Header
Client Support
• MS Windows® 8, 7, XP and Windows Server, Linux , FreeBSD, Solaris and Mac
• Snap Shot Backup and Recovery Client Support
• Active Directory, Rsync are supported
Remote Controls
• Power on/off, system reset + USB
• IPMI, KVM over IP, Remote Power On/Off is supported
Indicators
• Power, LAN and HDD LEDs
Cooling
• Rear: 6 x 40 x 28mm PWM cooling fans
Power Supply
• 1000W Redundant 80Plus Single Output Power supplies
Operating Temperature
• From 5 ºC to 35 ºC (41ºF to 95 ºF)
Non-Operating Temperature
• From -40 ºC to 60 ºC (-40ºF to 140 ºF)
Operating Humidity
• From 8% to 90% relative humidity
• From 5% to 95% non-condensing
EMI Safety
• CE/FCC
Dimensions
• 2U Rackmount Chassis
• Dimensions: 17.2" W x 3.5" H x 27.75" D
• Weight: 100 lb.
Warranty
• SAS and SATA-E Hard Driver carry 5 year,SATA-N carries 3 year
• Base system: 3 year standard parts and depot labor; lifetime toll free phone support.
• Optional: 3 or 5-year(total years) extended warranty with advanced parts replacement service.
• Optional: 7+year extended warranty service available.
• On-site service is available with additional cost.
*
*
*
