Think Big. Go Small. Eco-Smart Computing

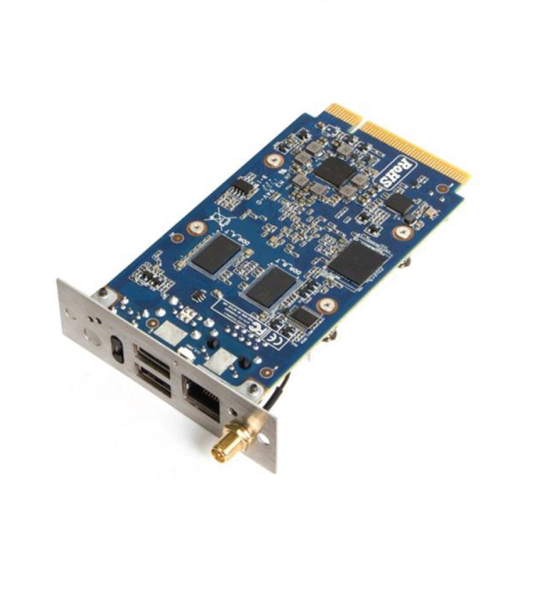

SDM-Z83S

Intel® Atom® x5-Z8350, HD Graphics HDMI+DP, COM+eMMC, 4G-LTE w/ SIM
Featured Highlights
Intel® Atom® Z8350 Processor
Intel® Cherry Trail Platform (SOC)
Intel® 8th Generation HD Graphics, HDMI+DP
2GB/4GB DDR3 Memory
MiniPCIe full zise slot
Realtek® Gigabit LAN
USB 3.0, 2 USB 2.0
5.1 ALC662 Audio Sound
Power Supply: DC12V Input
OS Support: Windows 10, IoT
Applications: Set Top Box, Digital Signage, POS/Kiosk, etc.

SKU: SDM-Z83S
Product specifications
Processor
• Intel® Atom® Z8350 1.44/1.92GHz 4Core 4Threads 2M 2W
Chipset
• Intel® Cherry Trail Platform (SOC)
Graphics

• Intel® 8th Generation HD Graphics 1080p Resolution
• 1 x HDMI® , supporting a maximum resolution of 1920x1080 Support for HDMI® 1.4 version and HDCP 2.2
• 1 x DP

Memory

• 2GB/4GB DDR3 (built-in, non-changeable)
• 1600MHz unbuffered non-ECC (Single Channel I/O)

Network

• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• 1 x SIM socket (for 3G/4G-LTE option)

Expansion Slot

• 1 x MiniPCIe full size slot

Storage

• 32GB eMMC Flash Internal Storage

Audio
• Realtek® ALC662 6-channel (5.1)
Back Panel I/O

• 2 x USB 2.0 ports
• 1 x LAN port

Other I/O

• 1 x USB 3.0 (SDM)
• 1 x Serial COM  (SDM)
• 1 x HDMI® (SDM)
• 1 x DP (SDM)

System BIOS
• AMI® UEFI BIOS
Chassis
• SDM Form Factor Chassis: 1.18"(H) x 6.9"(W) x 4.3"(D)
• 2.5" Hot Swap SATA drive bay
• System Weight: 1.5 lb.
Power Supply
• Power: DC12V 2A 24W Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Powered by PoE supported
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10, IoT
Application
• Set Top Box, Digital Signage, POS/Kiosk, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
