Think Big. Go Small. Eco-Smart Computing

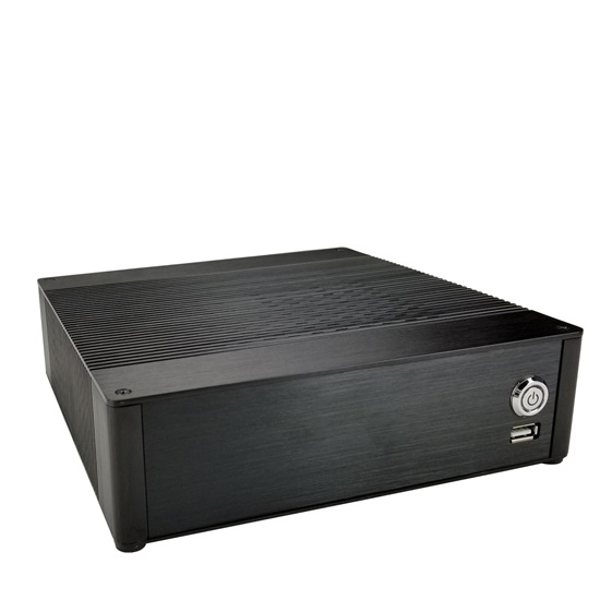

Q3700L2

Coffee Lake vPro 2LAN 5SATA+M.2
Featured Highlights
8th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processor
  Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 65W TDP
Intel® Q370 Chipset
Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz, in 2 DIMM slots
1 PCI-E 3.0 x16
1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port,3 Independent Displays, HDMI 2.0
Intel® Q370 controller for 5 SATA3 (6 Gbps) ports
  X11SCV-Q: Q370 controller for 5SATA3 ports;RAID 0,1,5,10
Single LAN with Intel® Ethernet Controller I210-AT
  Single LAN with Intel® PHY I219LM LAN controller
Power Supply: DC12V/ATX input
OS Support: Windows 10 64-bit, Linux, IOT
Applications: Set Top Box, Digital Signage, Surveillance, Network Appliance, Media Player/IPTV, IP/PBX, Robot, Traffic Controller, IoT/Edge System, Industrial Control/IPC, Medical Equipment, etc.

SKU: Q3700L2
Product specifications
Processor
• 8th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processor . Single Socket H4 (LGA 1151)
• supported, CPU TDP support Up to 65W TDP
• 8th Gen Intel® Core™ desktop processors are supported with Intel® 300 Series chipset motherboards only
Chipset
• Intel® Q370 Express Chipset
Graphics
• Intel® HD Graphics
• 3 Independent Displays, HDMI® 2.0
Memory
• Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz, in 2 DIMM slots
Network
• Single LAN with Intel® Ethernet Controller I210-AT
• Single LAN with Intel® PHY I219LM LAN controller
Expansion Slot
• 1 PCI-E 3.0 x16
• 1 M.2 M-Key PCI-E 3.0 x4, 2242/2280
• 1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230
Storage
• Intel® Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• X11SCV-Q: Q370 controller for 5SATA3 ports;RAID 0,1,5,10
Audio
• ALC 888S HD Audio
I/O
• 2 RJ45 Gigabit Ethernet LAN ports
• 4 USB 2.0 ports (4 headers Type A))
• 6 USB 3.1 ports (4 rears (2 Type A + 2 Type C) + 2 headers); USB 3.1 Gen 2
• 1 DVI - D port, 1 HDMI® port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port
• 3 Independent Displays, HDMI® 2.0
• 6 COM Ports (2 rear, 4 headers), 4COM port support RS-232 thru pin header; 2COM support RS-232/422/485 in rear
• 1 TPM Header & Chip both
System BIOS
• AMI UEFI
• ACPI 6.1
• SMBIOS 3.1
• PCI FW 3.0
• UEFI 2.6
• RTC Wakeup BIOS setup option
Chassis
• 300B Series Aluminum Mini Chassis
• Dimensions:300 Case: 8.1(L) x 8.1(W) x 2.2(H) inch
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• System Weight: 3.9 lb(Net) and 6 lb(Gross with packaging)
• Color: Black as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
• Optional: 400B Aluminum 2.6" H
• Optional: 500B 3.5" H w/LP Slot
• Optional: 1750C 1750F Aluminum Form Factor
Power Supply
• Power: DC12V Power Adapter (UL/CE/FCC Certified)
• Optional 100-240V ATX AC Power connector input
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10 64-bit, Linux, IOT
Application
• Set Top Box, Digital Signage, Surveillance, Network Appliance, Media Player/IPTV, IP/PBX, Robot, Traffic Controller, IoT/Edge System, Industrial Control/IPC, Medical Equipment, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
