Think Big. Go Small. Eco-Smart Computing

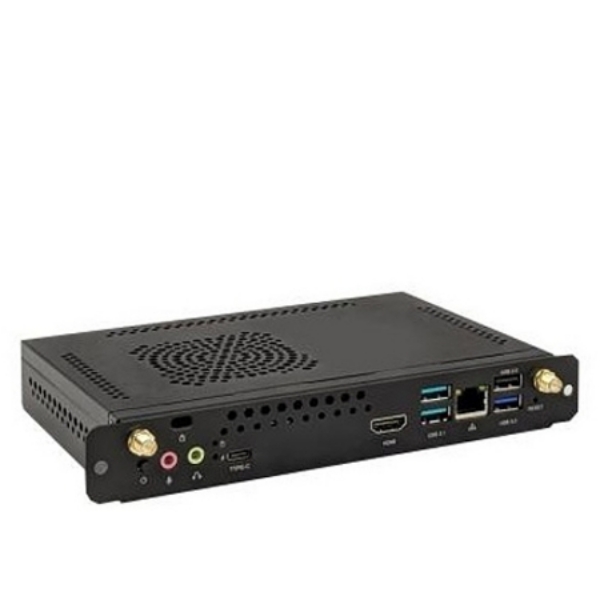

OPS-8000-S064

8th/9th Gen. Core™-u, Iris® Graphics 4K 2Display, 4 USB + Type-C, 3 M.2 + SIM for 4G-LTE
Featured Highlights
Intel® Core™ i7/i5/i3-u Processor
Intel® Whiskey Lake  / Coffee Lake-u Platform (SOC)
Intel® UHD 620 / Iris® Graphics, 4K/5K Resolution, HDR 10Bit color
2 DDR4 SO-DIMM for up to 64GB Memory
Intel® I219LM Gigabit LAN, M.2 WiFi/BT + M.2 4G-LTE SIM
2 USB 3.1, USB 3.0, USB 2.0, Type-C
M.2 SSD/NVMe
5.1 ALC662 Audio Sound
Standard JAE-80pin OPS connector
Power Supply: DC12-19V Input
OS Support: Windows 10, IoT, Linux
Applications: Digital Signage, Airport Signage, Hotel Signage, White-board for Education, Conference Room, etc.



SKU: OPS-8000-S064
Product specifications
Processor

• 8th/10th Generation Intel® Core™ u-series FCBGA1528 Processor
• Intel® Core™ i7-10710U 1.10/4.70GHz 6Core 1Threads 12M 15/25W
• Intel® Core™ i5-10210U 1.60/4.20GHz 4Core 8Threads 6M 15/25W
• Intel® Core™ i3-10110U 2.10/4.10GHz 2Core 4Threads 4M 15/25W
• Intel® Pentium® Gold-6405u 2.40GHz 2Core 4Threads 2M 15W
• Intel® Celeron® 5205u 2.40GHz 2Core 2Threads 2M 15W
• Intel® Core™ i5-8259u 2.30/3.80GHz 4Core 8Threads 6M w/Iris Plus Graphics 655
• Intel® Core™ i7-8665u 1.90/4.80GHz 4Core 8Threads 8M 15/25W, supports vPro®
• Intel® Core™ i7-8565u 1.80/4.60GHz 4Core 8Threads 8M 15/25W
• Intel® Core™ i5-8265u 2.10/3.90GHz 4Core 8Threads 6M 15/25W
• Intel® Core™ i3-8145u 1.60/3.90GHz 2Core 4Threads 4M 15/25W

Chipset
• Intel® Whiskey Lake Platform (SOC)
Graphics

• Intel® UHD 620 / Iris® Graphics, 4K/5K Resolution, HDR 10Bit color
• Support 2 Graphics ports
• 1 x Standard JAE-80pin OPS Connector (HDMI signal)
• 1 x HDMI 4K Graphics port

Memory

• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Network

• 1 x Intel® I219LM Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 3042 (for 4G-LTE Module Pair with SIM Card)
• 1 x MicroSIM slot
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 3042 (for 4G-LTE Module Pair with SIM Card)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Storage

• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Audio

• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 1 x JAE-80pin OPS Connector
• 1 x DC-In 2.5mm Power Connector
• 1 x MicroSIM slot

Other I/O

• 2 x USB 3.1 ports (Front)
• 2 x USB 3.0 ports (Front)
• 1 x USB 2.0 port (Front)
• 1 x Type-C USB port (for Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions) (Front)
• 1 x HDMI port (Front)
• 1 x LAN port (Front)
• 2 x 3.5mm Audio jacks (Front)
• RS232 Serial Signal via JAE-80pin OPS Connector

Function

• 1 x TPM header

System BIOS
• AMI® UEFI BIOS
Chassis

• OPS Form Factor Chassis: 1.18"(H) x 7.9"(W) x 4.7"(D)
• System Weight: 1.5 lb.

Power Supply

• Power Obtained from OPS Screen through JAE-80pin OPS connector
• Optional Power: DC12V or DC19V 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Energy Star Compliance, Idle mode at <1W

OS Support
• Windows 10, IoT, Linux
Application

• Digital Signage, Airport Signage, Hotel Signage, White-board for Education, Conference Room, etc.

Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
