NUC-G1/G2

4.59"(W)x4.23"(D)x1.18"(H)

Dimensions:
4.59"(W)x4.23"(D)x1.18"(H)

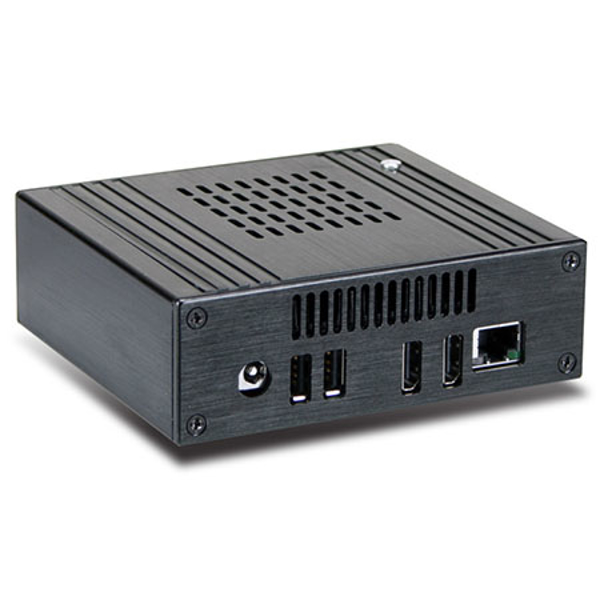

NUC Tiny Chassis
DC 19V 2A input,Built-in DC to DC Converter
Supports VESA, wall mount or rackmount brackets
Color: Black or Silver  as default color, custom colors available with special order
OS support: Windows 10, IoT, Linux
Applications: Set Top Box, Digital Signage, POS/Kiosk, Traffic Controller, etc.
SKU: NUC-G1/G2
Model Processor Chipset Memory Graphics Network M.2 MSata USB2.0 USB3.0 Ports Expansion OtherIO Audio
Nano-i200 i5-4200u Haswell-u 1 DDR3SO Intel HD 5000 1 Intel 2-8 1 2 H 2 F+2 R 1 HDMI+1 DP 2 MiniPCIe 5.1 ALC662
Nano-N3450G N3450 Apollo Lake 0 DDR3OB Intel HD 500 1 Realtek+11ac WiFi/BT 1 2 R 2 F 1 HDMI+1 DP 5.1 ALC662
Nano-N2807 N2807 Bay Trail-u 1 DDR3SO 7th Gen. HD 1 Realtek 1 2 F 1 F 1 HDMI 2 MiniPCIe 5.1 ALC662
Nano-N2807L2 N2807 Bay Trail-u 1 DDR3SO 7th Gen. HD 2 Intel/I211 1 1 R+4 H 1 R 1 HDMI+1 VGA+1 LVDS 2 MiniPCIe LPT+1xPS/2/H 5.1 ALC662
Nano-Z83 x5-Z8350 Cherry Trail 0 DDR3OB 8th Gen. HD 1 Realtek 1 3 F 1 F 1 HDMI+1 VGA 2 MiniPCIe 5.1 Intel
Nano-Z83A x5-Z8350 Cherry Trail 0 DDR3OB 8th Gen. HD 1 Realtek+11ac WiFi/BT 1 3 F 1 F 1 HDMI+1 miniDP MiniPCIe CM119B 5.1 HDMI

Support Models

*
*
*
