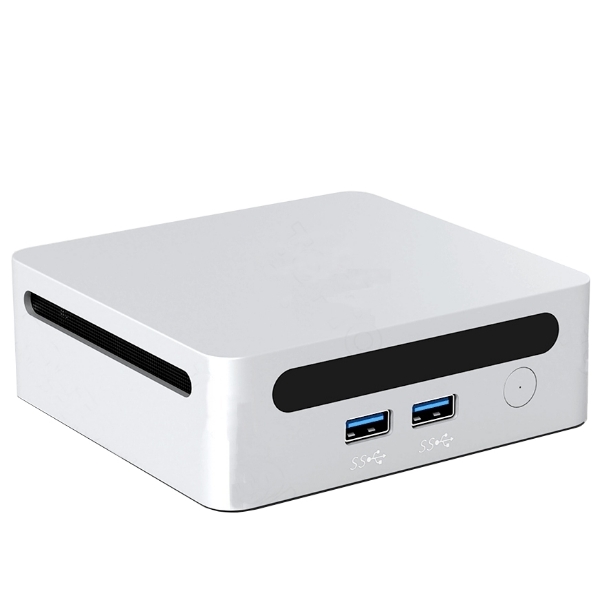

NUC-A7000u

AMD Ryzen™ 7 7730u, Radeon™ Vega FGX, Triple Display 2xHDMI + Type-C, LAN+11ac WiFi+BT

Featured Highlights
	AMD Ryzen™ 7 7730u Processor
	AMD Radeon™ Vega Graphics, 2 x HDMI 2.0+Type-C, 3 Displays
	2 DDR4-SO DIMM Up to 64G
	2 M.2 SSD/NVMe
	Gigabit LAN, 11ac WiFi+BT
	4 USB Type-A + 1 Type-C
	5.1 HDMI Audio Sound
	DC19V 65W or higher wattage Power Adapter(UL/CE/FCC Certified)
	OS Support: Windows 10, 11 Pro/IoT, Linux
	Applications: Edge AI-IoT, Digital Signage, IPTV, Traffic Controller, Kiosk, POS, etc.

SKU: NUC-A7000u

Specifications
Request for Info

Product specifications

Processor • AMD Ryzen™ 7 7730u 2.0/4.5GHz 8C/16T 12/15/35W Chipset • AMD 7th Generation u-Series Ryzen™ 7 (SOC)
Graphics • AMD Radeon™ Vega 8 Core 2GHz Graphics • Support Triple Displays • 2 x HDMI® 2.0 4K 60Hz Graphics Ports • 1 x Type-C Port to DP or HDMI® 4K@60Hz Memory • 2 SO-DIMM for DDR4 3200MHz • Dual Channel Memory up to 64GB
Network • 1 x Realtek® RTL8111H 1.0 Gigabit (10/100/1000 Mb/s) LAN • M.2-2230 slot for 802.11 ac/n Dual-Band Wi-Fi (2.4GHz / 5.0GHz), Bluetooth • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by M.2 module Expansion Slot • 1 x M.2-2280 PCIe 4x for NVMe or SATA SSD or other PCIe add-on • 1 x M.2-2242 PCIe for NVMe or SATA SSD or other PCIe add-on
Storage • 1 x M.2-2280 PCIe 4x for NVMe or SATA SSD • 1 x M.2-2242 PCIe for NVMe or SATA SSD Audio • 5.1 HD audio subsystem via HDMI® 1.4 interface • 1 x 3.5mm analog stereo audio Combo jack (Headphone/Mic )
Back Panel I/O • 2x HDMI® 2.0 port • 1 x Type-C port(for Graphics, Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions) • 2 x USB 2.0 • 1 x LAN port • 1 x 3.5mm Combo jack • 1 x DC-In Jack port Other I/O • 2 x USB 3.0 Ports (Front)
System BIOS • AMI® UEFI / Legacy BIOS Chassis • NUC Size Enclosure with Quiet Blower Cooling Kit • Dimensions: 4.5"(W) x 4.2"(D) x 1.48"(H) (Depth dimension changeable), Weight: 3 lb. • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC19V 3.42A 65W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10, 11 Pro/IoT, Linux
Applications • Edge-AI-IoT, Digital Signage, IPTV, Traffic Controller, Kiosk, POS, etc. Environment • Operating Temperature: -5 to +45 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
