NUC-A6600L2

AMD Ryzen™ 5 6600H Mini PC, Radeon™ 660M Graphics, Dual 4K Displays, USB4, Dual 2.5GbE LAN, Wi-Fi 6E, Dual M.2 NVMe SSD and DDR5 Memory

Featured Highlights
	AMD Ryzen™ 5 6600H Processor, 6 Cores and 12 Threads
	AMD Ryzen™ 6000 Series Rembrandt-H SoC
	AMD Radeon™ 660M Graphics
	2 x DDR5 SO-DIMM slots, supporting up to 64 GB; 16 GB DDR5-4800 standard
	12 x M.2-2280 PCIe 4.0 x4 NVMe SSD slots, supporting up to 8 TB; 512 GB PCIe 3.0 x4 NVMe SSD standard
	Dual 2.5GbE LAN, RZ616 Triple-Band Wi-Fi 6E and Bluetooth 5.2
	1 x USB 4, 3 x USB 3.2 Gen 2 and 1 x USB 2.0
	1 x 3.5 mm audio input/output combo jack
	100–240VAC, 19V/4.7A 90W Power Adapter
	OS Support: Windows 11 Pro (64-bit)
	Applications: Home/Office, Digital Signage, Media Player, Entertainment and Client Computing

In Stock

Descript:

NUC-A6600L2

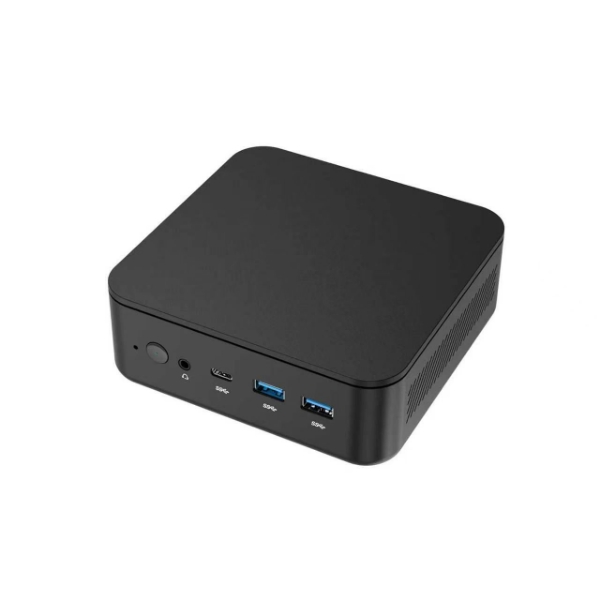

The Nano-A6600H (OEM NUC-A6600L2) is a compact AMD-powered mini PC featuring the AMD Ryzen™ 5 6600H processor with 6 cores and 12 threads and integrated AMD Radeon™ 660M graphics. It supports dual 4K displays through HDMI 2.0 and DisplayPort outputs, making it suitable for home, office, media-player and digital-signage applications. The system supports up to 64 GB of DDR5-4800 memory, dual M.2-2280 PCIe 4.0 x4 NVMe SSDs, USB4, dual 2.5GbE LAN, triple-band Wi-Fi 6E and Bluetooth 5.2. Its compact active-cooling design provides reliable performance for productivity, entertainment and client-computing applications.

SKU: NUC-A6600L2

Specifications
Request for Info

Product specifications

Processor • AMD Ryzen™ 5 6600H Processor Chipset • AMD Ryzen™ 6000 Series Rembrandt-H SoC
Graphics • AMD Radeon™ 660M Graphics • 1 x HDMI 2.0, supporting up to 4K@60Hz • 1 x DisplayPort, supporting up to 4K@60Hz Memory • 2 x DDR5 SO-DIMM slots • Standard configuration: 16 GB DDR5-4800 memory • Supports up to 64 GB
Network • 2 x 2.5GbE LAN ports • RZ616 Triple-Band 802.11ax Wi-Fi 6E (2.4 GHz/5 GHz/6 GHz) • Bluetooth 5.2 Expansion Slot • 2 x M.2-2280 slots supporting PCIe 4.0 x4 NVMe SSDs • 1 x M.2-2230 PCIe/USB slot for the Wi-Fi module
Storage • Standard configuration: 512 GB M.2-2280 PCIe 3.0 x4 NVMe SSD • 2 x M.2-2280 PCIe 4.0 x4 NVMe SSD slots • Supports up to 8 TB storage Audio • 1 x 3.5 mm audio input/output combo jack
Back Panel I/O • 1 x USB 3.2 Gen 2 Type-A port • 1 x USB 2.0 Type-A port • 1 x HDMI 2.0 port, supporting up to 4K@60Hz • 1 x DP, supporting up to 4K@60Hz • 2 x 2.5GbE RJ45 LAN ports • 1 x DC-in jack • 1 x Kensington security slot Front I/O • 2 x USB 3.2 Gen 2 Type-A ports • 1 x USB4 Type-C port • 1 x 3.5 mm audio input/output combo jack • 1 x Power button
Certificate • CE, FCC, RoHS and PSE certified Chassis • Mini PC form factor • Plastic enclosure • Active cooling design • Dimensions: 130 mm (W) x 127 mm (D) x 50 mm (H) • Net weight: approximately 460 g
Power Supply • AC input: 100–240V • 19V/5A DC power adapter OS Support • Windows 11 Pro (64-bit)
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance

Your name *

Your email *

Inquiry *

Product specifications

Processor • AMD Ryzen™ 5 6600H Processor Chipset • AMD Ryzen™ 6000 Series Rembrandt-H SoC
Graphics • AMD Radeon™ 660M Graphics • 1 x HDMI 2.0, supporting up to 4K@60Hz • 1 x DisplayPort, supporting up to 4K@60Hz Memory • 2 x DDR5 SO-DIMM slots • Standard configuration: 16 GB DDR5-4800 memory • Supports up to 64 GB
Network • 2 x 2.5GbE LAN ports • RZ616 Triple-Band 802.11ax Wi-Fi 6E (2.4 GHz/5 GHz/6 GHz) • Bluetooth 5.2 Expansion Slot • 2 x M.2-2280 slots supporting PCIe 4.0 x4 NVMe SSDs • 1 x M.2-2230 PCIe/USB slot for the Wi-Fi module
Storage • Standard configuration: 512 GB M.2-2280 PCIe 3.0 x4 NVMe SSD • 2 x M.2-2280 PCIe 4.0 x4 NVMe SSD slots • Supports up to 8 TB storage Audio • 1 x 3.5 mm audio input/output combo jack
Back Panel I/O • 1 x USB 3.2 Gen 2 Type-A port • 1 x USB 2.0 Type-A port • 1 x HDMI 2.0 port, supporting up to 4K@60Hz • 1 x DP, supporting up to 4K@60Hz • 2 x 2.5GbE RJ45 LAN ports • 1 x DC-in jack • 1 x Kensington security slot Front I/O • 2 x USB 3.2 Gen 2 Type-A ports • 1 x USB4 Type-C port • 1 x 3.5 mm audio input/output combo jack • 1 x Power button
Certificate • CE, FCC, RoHS and PSE certified Chassis • Mini PC form factor • Plastic enclosure • Active cooling design • Dimensions: 130 mm (W) x 127 mm (D) x 50 mm (H) • Net weight: approximately 460 g
Power Supply • AC input: 100–240V • 19V/5A DC power adapter OS Support • Windows 11 Pro (64-bit)
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
