Think Big. Go Small. Eco-Smart Computing

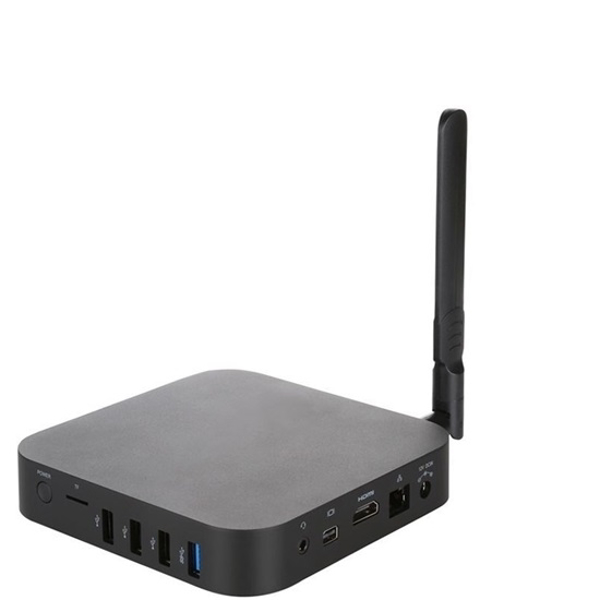

Nano-Z83-4

4Core Cherry Trail Fanless IoT PC, HDMI+miniDP 2 Display, 4G RAM+64G eMMC, GigaLAN+Wi-Fi
Featured Highlights
Intel® Atom® x5-Z8350 Processor
Intel® Cherry Trail Platform (SOC)
Intel® 8th Generation HD Graphics 4K@24Hz Resolution, HDMI+miniDP
4GB DDR3 Memory
MiniPCIe
Realtek® Gigabit LAN, 11ac WiFi+BT
1 USB 3.0, 3 USB 2.0
Power Supply: DC12V 36W input
OS Support: Linux, Windows 10 Pro, IOT
Applications: Set Top Box, Digital Signage, Traffic Controller, etc.

SKU: Nano-Z83-4
Product specifications
Processor
• Intel® Atom® x5-Z8350 1.44/1.92GHz 4Core 4Threads 2M 2W
Chipset
• Intel® Cherry Trail Platform (SOC)
Graphics

• Intel® 8th Generation HD Graphics 4K@24Hz Resolution
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 1920x1080 30/60 Hz  Support for HDMI® 1.4 version and HDCP 2.2
• 1 x miniDP Port

Memory
• 4G DDR3 (built-in, non-changeable)
• 1600MHz unbufferred non-ECC (Single Channel I/O)
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• 802.11 ac/n Dual-Band Wi-Fi (2.4GHz / 5.8GHz), Bluetooth 4.0
Expansion Slot
• 1 x MiniPCIe full size Slot
Storage

• 64G/128G eMMC Flash internal Storage
• 1 x TF (microSD) Slot supports 128G+ microSD/TF Card

Audio

• USB audio subsystem
• 1 x 3.5mm Combo Audio jack

Back Panel I/O

• 1 x HDMI® port
• 1 x miniDP port
• 1 x LAN port
• 1 x 3.5mm Combo jack
• 1 x DC-In 2.5mm Jack port

Other I/O
• 1 x USB 3.0 Port (Front)
• 3 x USB 2.0 Ports (Front)
Chassis
• Nano - X series
• Dimension: 5"(W) x 5"(D) x 0.75"(H) weight-7 lbs
• Audio: 5.1 HDMI®
Power Supply
• Power: DC12V 36W Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Linux, Windows 10 Pro, IOT
Application
• Set Top Box, Digital Signage, Traffic Controller, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
Product specifications
Processor
• Intel® Atom® x5-Z8350 1.44/1.92GHz 4Core 4Threads 2M 2W
Chipset
• Intel® Cherry Trail Platform (SOC)
Graphics

• Intel® 8th Generation HD Graphics 4K@24Hz Resolution
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 1920x1080 30/60 Hz  Support for HDMI® 1.4 version and HDCP 2.2
• 1 x miniDP Port

Memory
• 4G DDR3 (built-in, non-changeable)
• 1600MHz unbufferred non-ECC (Single Channel I/O)
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• 802.11 ac/n Dual-Band Wi-Fi (2.4GHz / 5.8GHz), Bluetooth 4.0
Expansion Slot
• 1 x MiniPCIe full size Slot
Storage

• 64G/128G eMMC Flash internal Storage
• 1 x TF (microSD) Slot supports 128G+ microSD/TF Card

Audio

• USB audio subsystem
• 1 x 3.5mm Combo Audio jack

Back Panel I/O

• 1 x HDMI® port
• 1 x miniDP port
• 1 x LAN port
• 1 x 3.5mm Combo jack
• 1 x DC-In 2.5mm Jack port

Other I/O
• 1 x USB 3.0 Port (Front)
• 3 x USB 2.0 Ports (Front)
Chassis
• Nano - X series
• Dimension: 5"(W) x 5"(D) x 0.75"(H) weight-7 lbs
• Audio: 5.1 HDMI®
Power Supply
• Power: DC12V 36W Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Linux, Windows 10 Pro, IOT
Application
• Set Top Box, Digital Signage, Traffic Controller, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
