Think Big. Go Small. Eco-Smart Computing

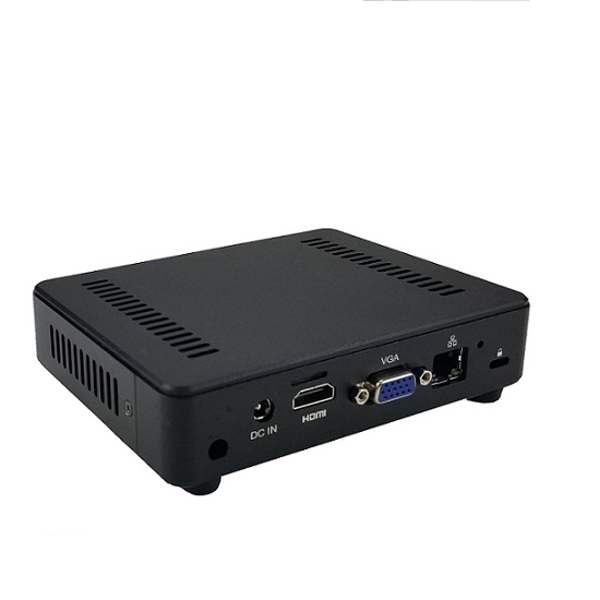

Z83D

Cherry Trail HDMI+ VGA SIM+COM Option
Featured Highlights
Intel® Atom™ x5-Z8350 Processor
Intel® Cherry Trail Platform (SOC)
Intel® HD Graphics, DMI+VGA Dual Display
2GB/4GB DDR3 Memory
2 x MiniPCIe+SIM slots
1 Realtek® Gigabit LAN
1 USB 3.0, 3 USB 2.0, Optional COM
5.1 Intel Audio Sound
Power Supply: DC5V/12V 15W input
OS Support: Windows 10, Linux, Android
Applications: Digital Signage, POS/Kiosk, Surveillance, Media Player/IPTV, AV Player, etc.

SKU: Nano-Z83D
Product specifications
Processor
• Intel® Atom® x5-Z8350 1.44/1.9GHz 4Core 4Threads 2M 2W
Chipset
• Intel® Cherry Trail Platform (SOC)
Graphics
• Intel® 8th Generation HD Graphics 4K@24Hz Resolution
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI® 1.4 version and HDCP 2.2
• 1 x VGA Port
Memory
• 2G DDR3 Embedded (Option: 4GB)
• 1600MHz unbufferred non-ECC (Single Channel I/O)
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Optional WiFi+BT via miniPCIe module
Expansion Slot
• 2 x MiniPCIe Full Size sockets (supports WiFi+BT, mSATA, 3G/4G-LTE Modem)
• 1 x Mini SIM Card Socket for Cellular Card
Storage
• 32GB (Option: 64G) eMMC Flash internal Storage
• 1 x TF (microSD) Slot supports 256GB+ microSD/TF Card
• 1 x mSATA 6Gb/s Slot
Audio
• 5.1 HD Audio
• 2 x 3.5mm Speaker-out and Mic-in Front Jacks
Back Panel I/O
• 1 x Serial COM port
• 1 x HDMI® port
• 1 x VGA port
• 1 x LAN port,
• 1 x HDMI® port
• 1 x VGA port
• 1 x LAN port
• 1 x TF Slot
• DC-in 2.5mm
Other I/O
• 1 x USB 3.0 Port (Front)
• 3 x USB 2.0 Ports (Front)
• Option: DB9 COM Port (Side)
Chassis
• NUC Tiny Aluminum Chassis
• Dimensions: 1.25(H) x 4.96-5.5(W) x 4.25(D) inch, Weight: 1.5 lb (net) 6 lb(gross with packaging)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount bracket
Power Supply
• Power: DC12V (Option:DC5V) 15W Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10 Home, Pro, IoT, Linux, Android
Application
• Digital Signage, POS/Kiosk, Surveillance, Media Player/IPTV, AV Player, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
Product specifications
Processor
• Intel® Atom® x5-Z8350 1.44/1.9GHz 4Core 4Threads 2M 2W
Chipset
• Intel® Cherry Trail Platform (SOC)
Graphics
• Intel® 8th Generation HD Graphics 4K@24Hz Resolution
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI® 1.4 version and HDCP 2.2
• 1 x VGA Port
Memory
• 2G DDR3 Embedded (Option: 4GB)
• 1600MHz unbufferred non-ECC (Single Channel I/O)
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Optional WiFi+BT via miniPCIe module
Expansion Slot
• 2 x MiniPCIe Full Size sockets (supports WiFi+BT, mSATA, 3G/4G-LTE Modem)
• 1 x Mini SIM Card Socket for Cellular Card
Storage
• 32GB (Option: 64G) eMMC Flash internal Storage
• 1 x TF (microSD) Slot supports 256GB+ microSD/TF Card
• 1 x mSATA 6Gb/s Slot
Audio
• 5.1 HD Audio
• 2 x 3.5mm Speaker-out and Mic-in Front Jacks
Back Panel I/O
• 1 x Serial COM port
• 1 x HDMI® port
• 1 x VGA port
• 1 x LAN port,
• 1 x HDMI® port
• 1 x VGA port
• 1 x LAN port
• 1 x TF Slot
• DC-in 2.5mm
Other I/O
• 1 x USB 3.0 Port (Front)
• 3 x USB 2.0 Ports (Front)
• Option: DB9 COM Port (Side)
Chassis
• NUC Tiny Aluminum Chassis
• Dimensions: 1.25(H) x 4.96-5.5(W) x 4.25(D) inch, Weight: 1.5 lb (net) 6 lb(gross with packaging)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount bracket
Power Supply
• Power: DC12V (Option:DC5V) 15W Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10 Home, Pro, IoT, Linux, Android
Application
• Digital Signage, POS/Kiosk, Surveillance, Media Player/IPTV, AV Player, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
