Think Big. Go Small. Eco-Smart Computing

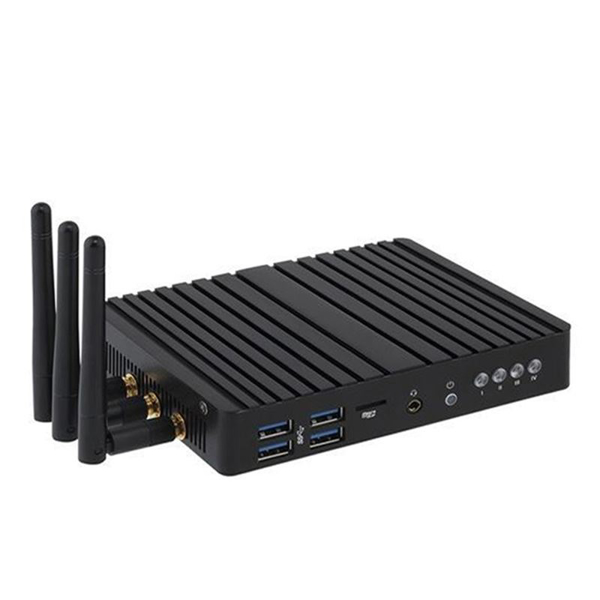

Nano-N3700L2

Intel® Pentium™ N3700, 2 HDMI, 2 COM, 1 mSATA
Featured Highlights
Intel® Pentium™ N3700 Processor
Intel® Braswell Platform (SOC)
Intel® 8th Generation HD Graphics 4K@24Hz Resolution, 2 HDMI
2 x DDR3L SO-DIMM for up to 16GB Memory
2 x MiniPCIe slots
2 Realtek® Gigabit LAN
4 USB 3.0, 1 USB 2.0
7.1 ALC255 Audio Sound
Power Supply: DC12-19V input
OS Support: Windows 7 64-bit, Windows 8x, Windows 10 32-bit, Linux
Applications: Digital Signage, POS/Kiosk, Surveillance, Network Appliance, Media Player/IPTV, etc.

SKU: N3700L2
Product specifications
Processor
• Intel® Pentium® N3700 1.60/2.40GHz 4Core 4Threads 2M 4/6W
Chipset
• Intel® Braswell Platform (SOC)
Graphics
• Intel® 8th Generation HD Graphics 4K@24Hz Resolution
• Support 2 Graphics ports
• 2 x HDMI® Ports
Memory
• 2 x DDR3L SO-DIMM
• 1600/1333MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 16GB
Network
• 2 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Optional WiFi via miniPCIe module
• Option: additional Gigabit or 10Gbit LAN can be added via PCIe slot or by USB LAN module
Expansion Slot
• 2 x MiniPCIe sockets (supports WiFi+BT or mSATA)
• 1 x Mini SIM Card slot for 3G communication
Storage
• 1 x mSATA 6Gb/s
Audio
• Realtek® ALC255 8-channel (7.1)
Back Panel I/O
• 2 x HDMI® ports
• 2 x LAN ports
Internal I/O
• 1 x USB 2.0 Header
• 2 x Serial COM Headers
Other I/O
• 4 x USB 3.0 Ports (Front)
• 1 x Serial COM port
Function
• 1 x TPM Header
• 1 x 4in/4out GPIO Header
Chassis
• Black Nano Size Small Chassis
• Dimensions: 1.18(T) x 4.7(D) x 6(W) inch, Weight: 1.25 lb (net) 3 lb(gross with packaging)
• One mSATA SSD slot
• Fanless version for silent operation
• Color: Black as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
Power Supply
• Power: DC12-19V Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 7 64-bit, Windows 8x, Windows 10 32-bit, Linux
Application
• Digital Signage, POS/Kiosk, Surveillance, Network Appliance, Media Player/IPTV, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
