Think Big. Go Small. Eco-Smart Computing

i5-5200FL/i5-5257FL

Intel Core i5-5200u, HDMI, VGA, LVDS, 2 COM, 2 SATA, mSATA, MiniPCIe, SIM
Featured Highlights
Intel® Core™ i5-u Processor
Intel® Broadwell Platform (SOC)
Intel® HD 5500 Graphics, 4K Display, HDMI+VGA+LVDS
DDR3L SO-DIMM for up to 8GB Memory
2 x SATA-6Gb/s, mSATA
MiniPCIe
Gigabit LAN(Option:one more LAN)
5 USB 3.0, 1 USB 2.0
5.1 ALC662 Audio Sound
DC12V 5A 60W or higher wattage Power Adapter(UL/CE/FCC Certified)
OS Support: Windows 7, Windows 8, Windows 10, IoT, Linux
Applications: Set Top Box, Digital Signage, POS/Kiosk, Surveillance, etc.
SKU: i5-5200FL
Product specifications
Processor
• Intel® Core® i5-5200u 2.20/2.70GHz 2Core 4Threads 3M 15W
• Intel® Core® i5-5257u 2.70/3.10GHz 2Core 4Threads 3M 28W
Chipset
• Intel® Broadwell Platform (SOC)
Graphics
• Intel® HD 5500 Graphics, 4K Display
• Support 3 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 1920x1080 Support for HDMI® 1.4 version and HDCP 2.2
• 1 x VGA Port
• 1 x LVDS Port
Memory
• 1 x DDR3L SO-DIMM
• 1600/1333MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 8GB
Network
• 1 x Realtek® RTL8111F Gigabit (10/100/1000 Mb/s) LAN
• Optional 1 x Realtek RTL8111F Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x MiniPCIe full size slot for mSATA
• 1 x SIM socket for 3G/4G-LTE option
Storage
• 2 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
Audio
• Realtek® ALC662 6-channel (5.1)
• Internal audio, S/PDIF headers
• 2 x 3.5mm analog stereo audio jack
Back Panel I/O
• 2 x USB 3.0 Ports
• Option: 2 x USB 2.0 or 2nd LAN
• 2 x Serial COM ports (2 RS-232)
• 1 x HDMI® port
• 1 x VGA port
• 1 x LVDS port
• 1 x LAN port
• 2 x 3.5mm jack
• 1 x DC-In 2.5mm Jack port
Internal I/O
• 3 x USB 3.0 Headers
• 1 x USB 2.0 Header
• 1 x S/PDIF header
Function
• 1 x 4in/4out GPIO Header
System BIOS
• AMI® UEFI 64MBit / Legacy BIOS
• Watchdog supported

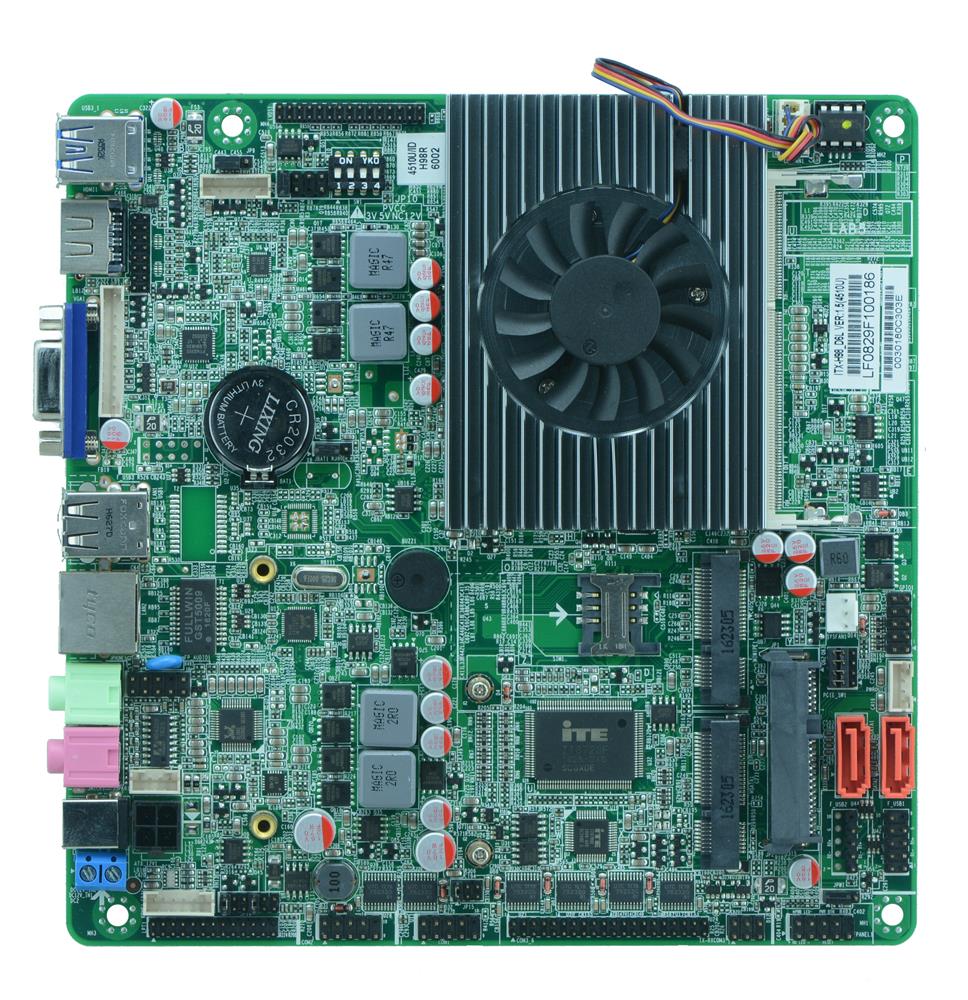

Systemboard
Small Form Factor

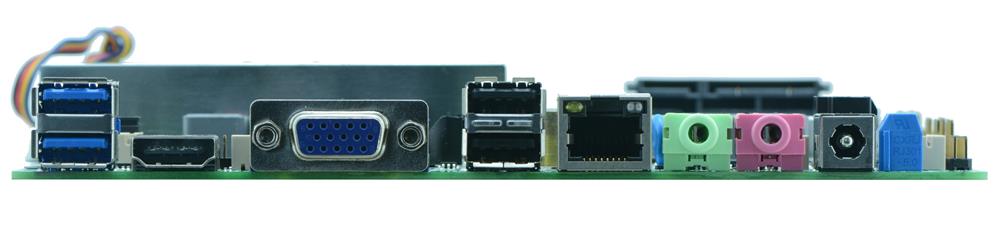

Back I/O

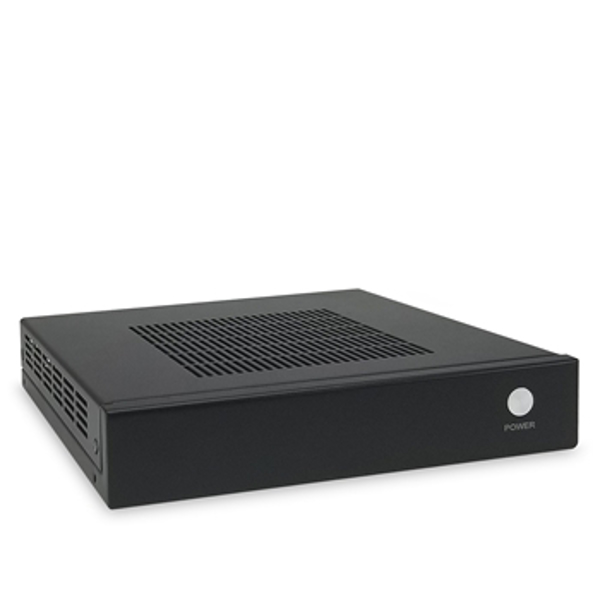

Chassis
• 10A Series Fanless Aluminum Chassis
• Dimensions:7.5(L) x 7.5(W) x 1.4(H) inch
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• System Weight: 2.5 lb(Net) and 4.5 lb(Gross with packaging)
• Color: Black as default color, custom colors available with special order
• Option: 100F Fanless 1.4" Slim
• Option: 138D 7"x7"x1.38H
• Option: 140D 7"x7"x1.4"
Power Supply
• Power: DC12V 5A 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option ••
• • Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 7, Windows 8, Windows 10, IoT, Linux
Application
• Set Top Box, Digital Signage, POS/Kiosk, Surveillance, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
