Processor
• Intel® Core® i5-5200u 2.20/2.70GHz 2Core 4Threads 3M 15W
Chipset
• Intel® Broadwell Platform (SOC)
|
Graphics
• Nvidia® GT730 Graphics 2GB VRAM
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI® 1.4 version and HDCP 2.2
• 1 x DVI Port
Memory
• 2 x DDR3L SO-DIMM
• 1600/1333MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 32GB
|
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Optional WiFi via miniPCIe module
• Option: additional Gigabit LAN can be added via PCIe slot or by USB LAN module
Expansion Slot
• 1 x MiniPCIe socket
• 1 x SIM socket for 3G/4G-LTE option
|
Storage
• 2 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
Audio
• Realtek® ALC662 6-channel (5.1)
• Internal audio, S/PDIF headers
|
Back Panel I/O
• 2 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 1 x HDMI® port
• 1 x DVI port
• 1 x LAN port
Internal I/O
• 4 x USB 2.0 Headers
• 2 x Serial COM Headers
• 1 x S/PDIF header
|

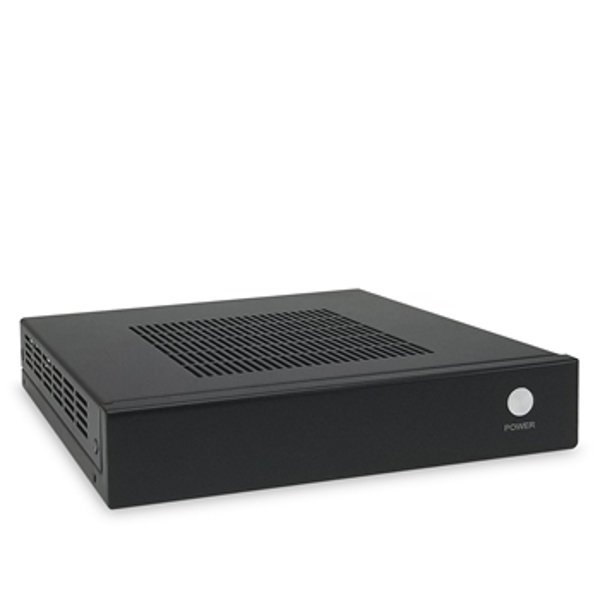

Chassis
• 138D Small Form Factor with aluminum panel, Convertible to 1U Rackmount • Dimensions: 7"x7"x1.38H inch, Weight: 3 lb(Net) 10 lb(gross with packaging) • Cooling: Slim CPU Fan with Heatsink • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available • Supports VESA, wall mount or rackmount brackets • Optional: Slim 10 Series 1.4" Slim • Optional: 100F Fanless 1.4" Slim • Optional: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5" • Optional: 1750C Aluminum Form Factor
|
Power Supply
• Power: DC12-19V Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 7 32-bit, Windows 7 64-bit, Windows 8x, Windows 10 64-bit, Linux, IOT
|
Application
• Set Top Box, Digital Signage, Network Appliance, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
|
