H110L4C6

9th - 6th Gen Fanless Socket-S, HDMI+DVI+VGA+LVDS, PCIe x16+PCIe x4+MiniPCIe, 4 LAN+6 COM+9 USB

Featured Highlights
	Intel® 9th/8th/7th/6th Gen. Core™ i9/i7/i5/i3 Embedded T-Series Socket-S Processor
	Intel® H110/C236 Chipset
	Intel® Graphics, HDMI+DVI+VGA+LVDS
	2 DDR4 SO-DIMM for up to 32GB Memory
	2 SATA-6Gb/s, mSATA, M.2 SSD/NVMe
	PCIe x16, PCIe x1/x4, MiniPCIe
	4 Gigabit LAN, M.2 4G/5G+SIM
	4 USB 3.0, 5 USB 2.0, 6-10 COM
	HD Audio Sound
	Power Supply: DC10V-30V Wide Power Range (UL/CE/FCC Certified)
	OS Support: Windows 10/7, WES7, Linux (64bit/32bit)
	Applications: Set Top Box, Network Appliance, POS/Kiosk, IoT/Edge Computing, Industrial Rugged PC etc.

SKU: H110L4C6

Specifications
Request for Info

Product specifications

Processor • Intel® 9th/8th/7th/6th Generation LGA1151 Core™ i9/i7/i5/i3 Embedded T-Series 35W Chipset • Intel® H110/C236 Chipset
Graphics • Intel® Graphics (based on CPU) • Support 2 Displays with H110 chipset and 3 Displays with C236 chipset • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DVI-D port • 1 x VGA port • 1 x LVDS/eDP header Memory • 2 x DDR4 SO-DIMM • 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 32GB
Network • 3 x Intel® I211AT Gigabit (10/100/1000 Mb/s) LAN • 1 x Intel® I219LM Gigabit (10/100/1000 Mb/s) LAN • Gigabit Ethernet port surge protection (common mode 4KV, differential mode 8KV) • M.2 3052/3042 (for 5G/4G-LTE Wireless Module) • 1 x SIM socket for 5G/4G-LTE option • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x PCI Express x16 slot • 1 x PCI Express x1 (x4 in C236 chipset) slot • 1 x MiniPCIe full size slot • 1 x M.2 3052/3042 (for 5G/4G-LTE Wireless Module) • 1 x M.2 2280/2242 (for SATA-6Gb/s or PCIe x4 NVMe with C236 chipset)
Storage • 2 x SATA 6Gb/s (C236 chipset supports RAID0/1) • 1 x mSATA • 1 x M.2 2280/2242 (for SATA-6Gb/s or PCIe x4 NVMe with C236 chipset) Audio • HD Audio • 3 x 3.5mm Analog Stereo Audio jacks

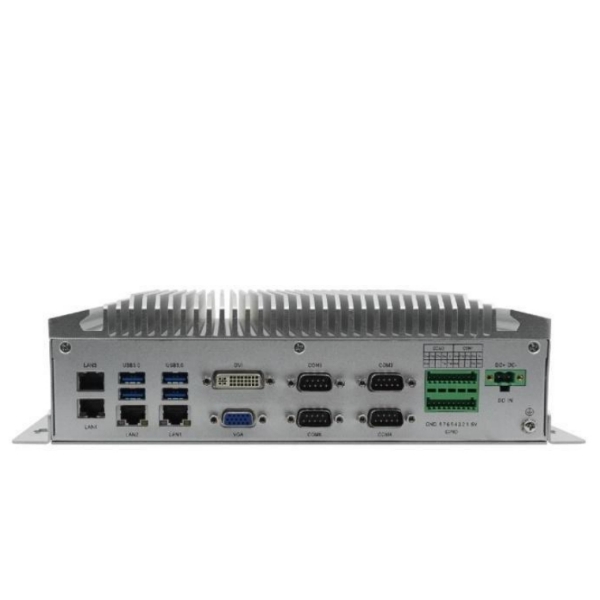

Back Panel I/O • 4 x USB 3.0 ports • 4 x LAN ports • 4 x RS232 COM ports • 2 x RS485/422/232 COM ports • Optional Additional 4 x RS485/232 COM ports • 1 x DVI-D port • 1 x VGA port • 1 x DC-In Phoenix Terminal Internal I/O • 1 x USB 2.0 Internal port • 1 x LVDS/eDP header

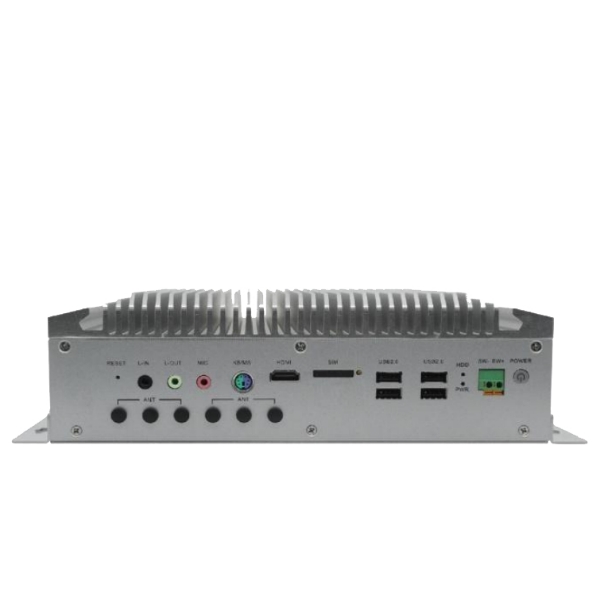

Other I/O • 4 x USB 2.0 ports (Front) • 3 x Audio jacks (Front) • 1 x HDMI® port (Front) • 1 x PS2 port (Front) • 1 x SIM slot (Front) Function • TPM support • 1 x 4pin SM Bus Interface
System BIOS • AMI® UEFI BIOS • Watchdog supported Chassis • Fanless Industial Chassis • Dimensions: 10.12"(W) x 7.52"(D) x 3.11"-7.44"(H), Weight: 6.6 lb. (Net) 8 lb. (gross with packaging) • Supports wall mount brackets
Power Supply • Power: DC10V-30V Phoenix Terminal power adapter (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10, Windows 7, WES7, Linux (64bit/32bit)
Application • Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IoT/Edge Computing, Industrial Rugged PC etc. Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
