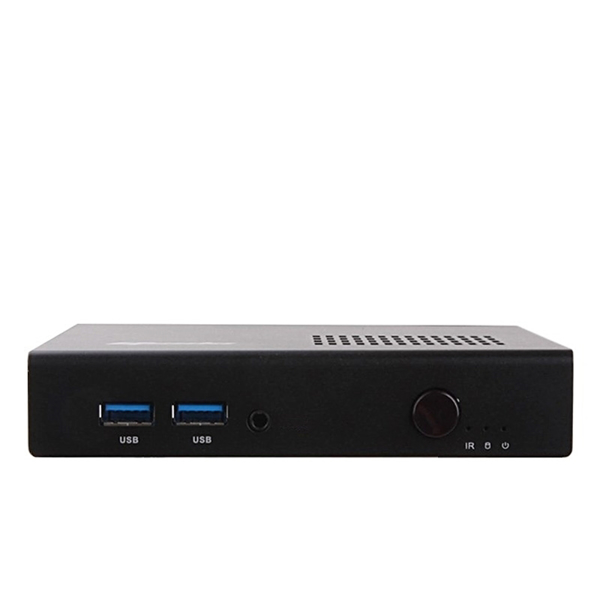

DK67

Intel Core i3-7100u, HDMI, DP, COM, SATA, mSATA
Featured Highlights
Intel® Core™ i3-7100u Processor
Intel® Kaby Lake Platform (SOC)
Intel® HD 620 Graphics, 4K/5K Resolution, HDR 10Bit color, HDMI+DP
1 x DDR4 SO-DIMM for up to 32GB Memory
2 x MiniPCIe slots
1 Realtek® Gigabit LAN
4 USB 3.0
1 x SATA, 1 x mSATA
5.1 ALC662 Audio Sound
Power Supply: DC12V input
OS Support: Windows 10 64-bit, Linux, IOT
Applications: Set Top Box, Digital Signage, Media Player/IPTV, etc.

SKU: DK67
Product specifications
Processor
• Intel Core i3-7100u 800MHz/2.4GHz 2Core 4Threads 3M 7.5/15W
• Optional: Nano-i700-P Intel Pentium 4415u 2.30GHz 2Core 4Threads 2M 15W
• Optional: Nano-i700-C Intel Celeron 3865u 1.80GHz 2Core 2Threads 2M 15W
• Additional Options: 7th Generation Kaby Lake Intel Core i3-7020u, i3-7130u, i5-7200u, i5-7260u, i5-7267u, i5-7287u, i5-7300u, i5-7360u, i7-7500u, i7-7560u, i7-7567u, i7-7600u,i7-7660u
Chipset
• Intel® Kaby Lake Platform (SOC)
Graphics
• Intel® HD 620 Graphics, 4K/5K Resolution, HDR 10Bit color
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI® 1.4 version and HDCP 2.2
• 1 x DP 4K 60Hz Graphics Port
Memory
• 1 x DDR4 SO-DIMM
• 2133MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 32GB
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Optional WiFi via miniPCIe module
• Option: additional Gigabit LAN can be added via PCIe slot or by USB LAN module
Expansion Slot
• 2 x MiniPCIe sockets
Storage
• 1 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
Audio
• Realtek® ALC662 6-channel (5.1)
Back Panel I/O
• 2 x USB 3.0 Ports
• 1 x Serial COM port
• 1 x HDMI® port
• 1 x DP port
• 1 x LAN port
Other I/O
• 2 x USB 3.0 Ports (Front)
Chassis
• NUC Tiny Chassis
• Dimensions: 1.33(H) x 4.96(W) x 4.33(D) inch(Height dimension can changeable), Weight: 1.5 lb (net) 6 lb(gross with packaging)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
Power Supply
• Power: DC12V Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10 64-bit, Linux, IOT
• Option: Windows 7 (works with Skylake Processor family only)
Application
• Set Top Box, Digital Signage, Media Player/IPTV, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
Product specifications
Processor
• Intel Core i3-7100u 800MHz/2.4GHz 2Core 4Threads 3M 7.5/15W
• Optional: Nano-i700-P Intel Pentium 4415u 2.30GHz 2Core 4Threads 2M 15W
• Optional: Nano-i700-C Intel Celeron 3865u 1.80GHz 2Core 2Threads 2M 15W
• Additional Options: 7th Generation Kaby Lake Intel Core i3-7020u, i3-7130u, i5-7200u, i5-7260u, i5-7267u, i5-7287u, i5-7300u, i5-7360u, i7-7500u, i7-7560u, i7-7567u, i7-7600u,i7-7660u
Chipset
• Intel® Kaby Lake Platform (SOC)
Graphics
• Intel® HD 620 Graphics, 4K/5K Resolution, HDR 10Bit color
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI® 1.4 version and HDCP 2.2
• 1 x DP 4K 60Hz Graphics Port
Memory
• 1 x DDR4 SO-DIMM
• 2133MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 32GB
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Optional WiFi via miniPCIe module
• Option: additional Gigabit LAN can be added via PCIe slot or by USB LAN module
Expansion Slot
• 2 x MiniPCIe sockets
Storage
• 1 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
Audio
• Realtek® ALC662 6-channel (5.1)
Back Panel I/O
• 2 x USB 3.0 Ports
• 1 x Serial COM port
• 1 x HDMI® port
• 1 x DP port
• 1 x LAN port
Other I/O
• 2 x USB 3.0 Ports (Front)
Chassis
• NUC Tiny Chassis
• Dimensions: 1.33(H) x 4.96(W) x 4.33(D) inch(Height dimension can changeable), Weight: 1.5 lb (net) 6 lb(gross with packaging)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
Power Supply
• Power: DC12V Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10 64-bit, Linux, IOT
• Option: Windows 7 (works with Skylake Processor family only)
Application
• Set Top Box, Digital Signage, Media Player/IPTV, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
