Think Big. Go Small. Eco-Smart Computing

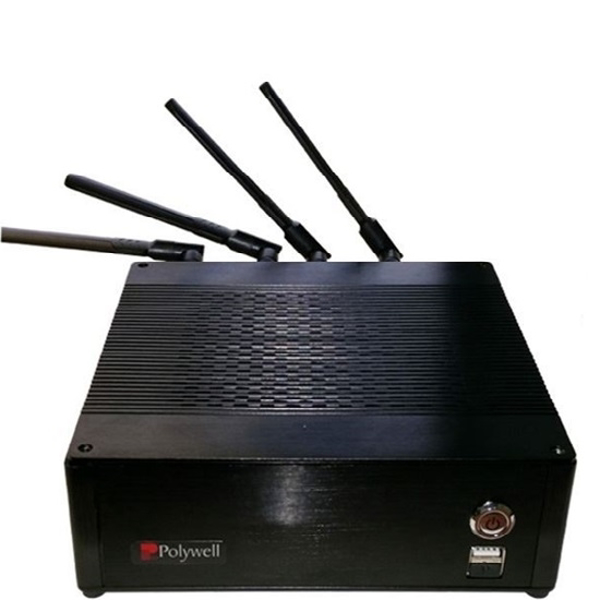

C2558L4

Intel Atom C2558, VGA, 2 COM, 6 SATA, PCIe x8
Featured Highlights
Intel® Atom™ C2558 Processor
Intel® Rangeley Platform (SOC)
Aspeedl® AST2400 Graphics, VGA
4 x DDR3 SO-DIMM for up to 64GB Memory
PCIe x8
4 Intel® Gigabit LAN
3 USB 3.0, 2 USB 2.0
6 x SATA
Power Supply: DC12V/ATX input
OS Support: Windows 7 32-bit, Windows 10 32-bit, Linux
Applications: Surveillance, Network Appliance, etc.

SKU: C2558L4
Product specifications
Processor
• Intel® Atom® C2558 2.40GHz 4Core 4Threads 2M 20W
Chipset
• Intel® Rangeley Platform (SOC)
Graphics
• Aspeedl® AST2400 Graphics
• Support 1 Graphics port
• 1 x VGA Port
Memory
• 4 x DDR3 SO-DIMM
• 1600/1333MHz unbufferred ECC (Dual Channel I/O)
• Supports up to 64GB
Network
• 4 x Intel® i354 Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Optional WiFi via miniPCIe module
• Option: additional Gigabit LAN can be added via PCIe slot or by USB LAN module
Expansion Slot
• 1 x PCI Express 3.0 x8 slot
Storage
• 6 x SATA 6Gb/s
Audio
• Optional via USB Audio module
Back Panel I/O
• 2 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 1 x Serial COM port
• 1 x VGA port
• 4 x LAN ports
Internal I/O
• 1 x USB 3.0 Header
• 1 x Serial COM Header
Function
• 1 x TPM Header
Chassis
• 300B Series Aluminum Mini Chassis
• Dimensions:300 Case: 8.1(L) x 8.1(W) x 2.2(H) inch
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• System Weight: 3.9 lb(Net) and 6 lb(Gross with packaging)
• Color: Black as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
• Optional: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5"
• Optional: 500B 3.5" H w/LP Slot 500A DVD Bay +LP Slot 500D with 5.25" Bay 500F Dust Filter 500C LCD Control
• Optional: 1750C Aluminum Form Factor
Power Supply
• Power: DC12V Power Adapter (UL/CE/FCC Certified)
• Optional 100-240V ATX AC Power connector input
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 7 32-bit, Windows 10 32-bit, Linux
Application
• Surveillance, Network Appliance, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
